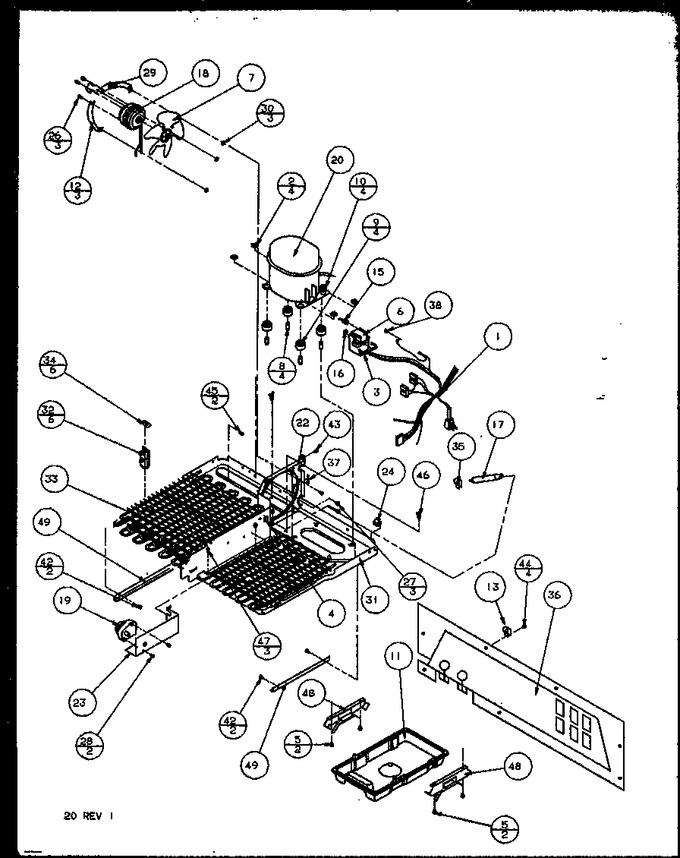

| 1 | 10354701 | Harness. M.c |
|
- | |||||
| 2 | A3140801 | Clip K |
|
- | |||||
| 3 | A3041801 | Strap K |
|
- | |||||
| 4 | A9008301 | Felt |
|
- | |||||
| 5 | WP489069 | Screw-sd (Replaces: M0233704) |
|
Immediately | $ 7.86 | ||||
| 6 | B0559501 | Cover K |
|
- | |||||
| 7 | B5742601 | Blade, Fan |
|
- | |||||
| 8 | A3072001 | Sleeve K |
|
- | |||||
| 9 | WPW10169124 | Grommet (Replaces: B8333401) |
|
Immediately | $ 7.19 | ||||
| 10 | B8365302 | Washer |
|
- | |||||
| 11 | D7790601 | Drain Pan |
|
- | |||||
| 12 | C8982101 | Bracket, Cond Motor |
|
- | |||||
| 13 | M0102301 | Clamp |
|
- | |||||
| 15 | C8866906 | Overload |
|
- | |||||
| 16 | C3553407 | Relay |
|
- | |||||
| 17 | WPB2150504 | Drier (Replaces: B5715001) |
|
$ 130.46 | |||||
| 18 | 833697 | Motor, Fan (Replaces: D7584001) |
|
Immediately | $ 88.15 | ||||
| 19 | R0168027 | Kit, Defrost Timer (Replaces: 10129303) |
|
Immediately | $ 152.25 | ||||
| 20 | W10439652 | Compressor (Replaces: D7743203) |
|
$ 421.14 | |||||
| 22 | D7691002 | Cond. Fan Shrd |
|
- | |||||
| 23 | D7752701 | Bracket, Timer |
|
- | |||||
| 24 | M0110508 | Clip |
|
- | |||||
| 26 | M0223803 | Screw |
|
- | |||||
| 27 | M0221332 | Screw, Shoulder |
|
- | |||||
| 28 | M0218118 | Screw |
|
- | |||||
| 29 | WPW10339879 | Tie (Replaces: M0321202) |
|
$ 7.90 | |||||
| 30 | M0500107 | Grommet K |
|
- | |||||
| 31 | D7595411 | Base Pan - Ptd |
|
- | |||||
| 32 | B8346301 | Spacer Cond. |
|
- | |||||
| 33 | D7654301 | Condenser Pntd |
|
- | |||||
| 34 | M0293703 | Speednut |
|
- | |||||
| 35 | M0104002 | Clamp-drier |
|
- | |||||
| 36 | C8890208 | Back M.c. Comp |
|
- | |||||
| 37 | B5759604 | Gasket |
|
- | |||||
| 38 | M0253916 | Screw |
|
- | |||||
| 42 | M0221530 | Screw |
|
- | |||||
| 43 | WP489069 | Screw-sd (Replaces: M0233704) |
|
Immediately | $ 7.86 | ||||
| 44 | M0219704 | Screw |
|
- | |||||
| 45 | M0233844 | Screw, T F |
|
- | |||||
| 46 | DC61-40081A | Tie, Wire (Replaces: M0585401) |
|
$ 0.94 | |||||
| 47 | WP12990527 | Screw (Replaces: M0219916) |
|
Immediately | $ 7.94 | ||||
| 48 | D7790501 | Support Drain Pan |
|
- | |||||
| 49 | D7835501 | Support M.c. |
|
- | |||||
| NI | C8916701 | Spring K |
|
- |
