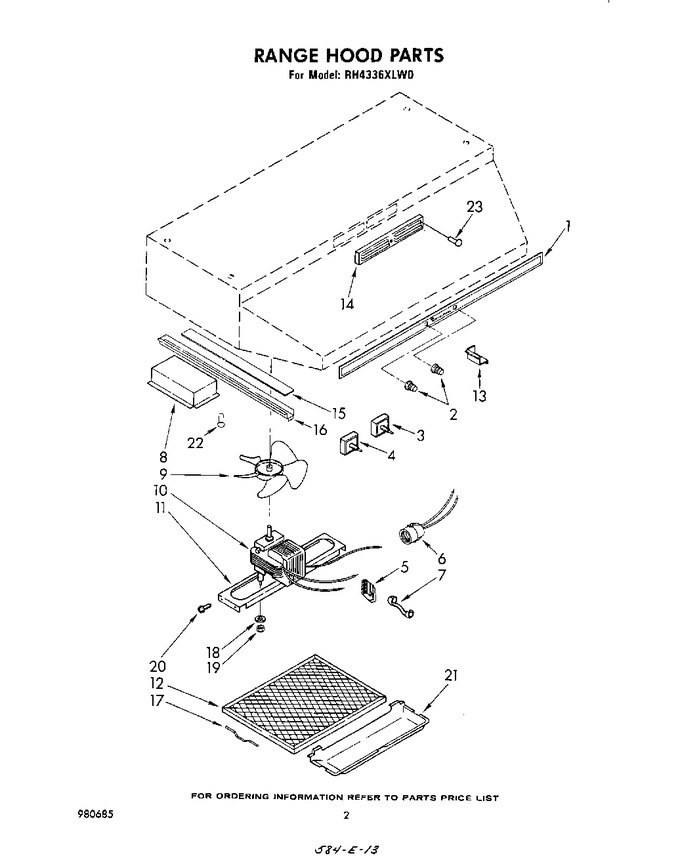

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	830897		Nameplate		Appelez-nous	-
2	830432		Knob (2)		Appelez-nous	-
3	830777		Switch, Rotary (3 - Speed Fan)		Appelez-nous	-
4	830736		Switch, Rotary (light)		Appelez-nous	-
5	830173		Receptacle, Motor Wire		Appelez-nous	-
6	830755		Receptacle, Light		Appelez-nous	-
7	830327		Bushing, Strain Relief		Appelez-nous	-
8	830368		Damper Assembly		Appelez-nous	-
9	830428		Blade, Fan		Appelez-nous	-
10	830426		Motor, 2-speed		Appelez-nous	-
11	830441		Bracket, Motor		Appelez-nous	-
12	830732		Filter, Aluminum				$ 43.94
13	830693		Box, Wiring (golden Harvest)		Appelez-nous	-
13	883040		Box, Wiring (platinum)		Appelez-nous	-
13	883039		Box, Wiring (toast)		Appelez-nous	-
13	830694		Box, Wiring (almond)		Appelez-nous	-
13	830690		Box, Wiring (white)		Appelez-nous	-
13	830691		Box, Wiring (coffee)		Appelez-nous	-
13	830692		Box, Wiring (new Avocado)		Appelez-nous	-
13	830780		Box, Wiring (stainless Steel)		Appelez-nous	-
14	830775		Vent, Louvered (golden Harvest)		Appelez-nous	-
14	830783		Vent, Louvered (stainless Steel)		Appelez-nous	-
14	830771		Vent, Louvered (white)		Appelez-nous	-
14	830772		Vent, Louvered (almond)		Appelez-nous	-
14	830773		Vent, Louvered (coffee)		Appelez-nous	-
14	830774		Vent, Louvered (new Avocado)		Appelez-nous	-
14	883041		Vent, Louvered (toast)		Appelez-nous	-
14	883042		Vent, Louvered (platinum)		Appelez-nous	-
15	830778		Plate, Cover		Appelez-nous	-
16	830779		Channel, Wire		Appelez-nous	-
17	830489		Spring, Filter		Appelez-nous	-
18	830462		Washer, No. 8 (2)		Appelez-nous	-
19	WP486255		Nut, 8-32 (2)   (Replaces: 830484)				$ 5.82
20	830740		Screw, 8 X 1/2 (4)		Appelez-nous	-
21	830781		Lens, Light		Appelez-nous	-
22	830470		Rivet, Pop (8)		Appelez-nous	-
23	830807		Rivet, Black (2)		Appelez-nous	-
23	830852		Duct Kit (model Rch4660)				$ 64.94
	LIT830735		Order Blank, Filter		Appelez-nous	-
	LIT980685		Repair Parts List		Appelez-nous	-
	LIT830875		Instructions, Installation & Operating		Appelez-nous	-
