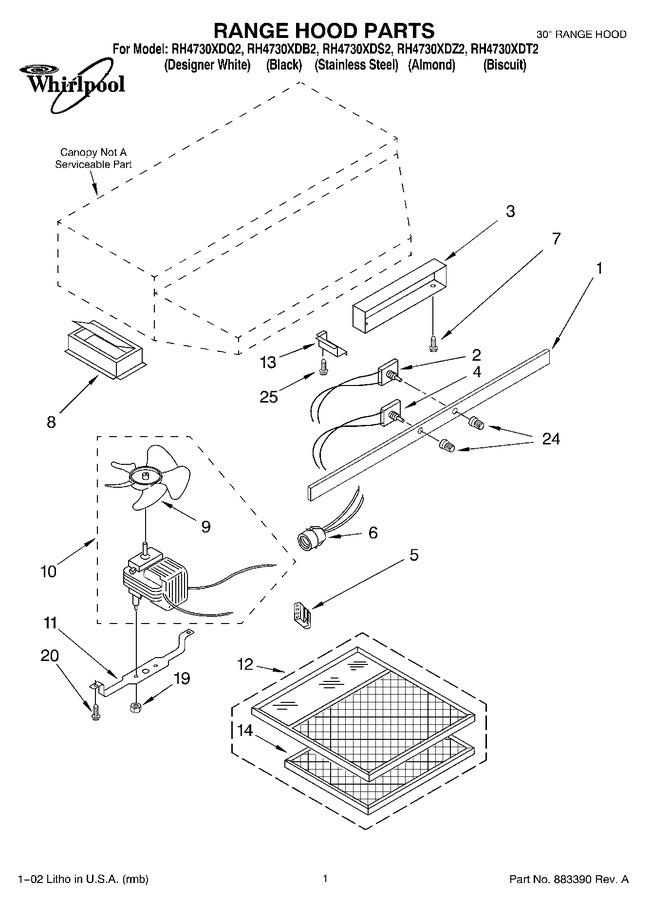

01 - Section


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	883311		Name Plate (almond)		Appelez-nous	-
1	8189518		Name Plate (biscuit)		Appelez-nous	-
1	883310		Name Plate (white)		Appelez-nous	-
1	883312		Name Plate (black)		Appelez-nous	-
1	883313		Name Plate (stainless Steel)		Appelez-nous	-
2	883339		Switch, Rotary (light)				$ 47.23
3	883133		Cover, Switch (almond)		Appelez-nous	-
3	883127		Cover, Switch (white)		Appelez-nous	-
3	8189520		Cover, Switch (biscuit)		Appelez-nous	-
3	883132		Cover, Switch (stainless Steel)		Appelez-nous	-
3	883170		Cover, Switch (black)			Immediately	$ 26.38
4	883340		Switch, Rotary (fan)		Appelez-nous	-
5	830173		Receptacle, Motor Wire		Appelez-nous	-
6	883124		Receptacle, Light		Appelez-nous	-
7	WP486579		Screw, 8-32   (Replaces: 883017)				$ 7.10
8	830368		Damper Assembly		Appelez-nous	-
9	883382		Blade, Fan		Appelez-nous	-
10	883379		Motor/blade Assy		Appelez-nous	-
11	883397		Bracket, Motor		Appelez-nous	-
12	883149		Filter, With Lens (includes 1 Charcoal Pad)		Appelez-nous	-
13	883096		Box, Wiring (almond/biscuit)				$ 21.97
13	883123		Box, Wiring (stainless Steel)		Appelez-nous	-
13	883095		Box, Wiring (white)				$ 15.77
13	883169		Box, Wiring (black)		Appelez-nous	-
14	883151		Pad, Charcoal (replacement, Package Of 3)				$ 23.55
19	WP488130		Nut, 8-32 (2)   (Replaces: 883076)				$ 6.59
20	60001022		Screw (2)   (Replaces: 883343)				$ 59.77
24	883292		Knob, Control (2) (white)		Appelez-nous	-
24	8189517		Knob, Control (2) (biscuit)		Appelez-nous	-
24	883265		Knob, Control (2) (stainless Steel)		Appelez-nous	-
24	883266		Knob, Control (2) (black)		Appelez-nous	-
24	883267		Knob, Control (2) (almond)		Appelez-nous	-
25	WP489069		Screw, 8 X 1/4   (Replaces: 830465)			Immediately	$ 7.56
	LIT883305		Instructions Installation		Appelez-nous	-
	LIT883344		Wiring Diagram		Appelez-nous	-
	LIT830735		Order Blank, Filter		Appelez-nous	-
