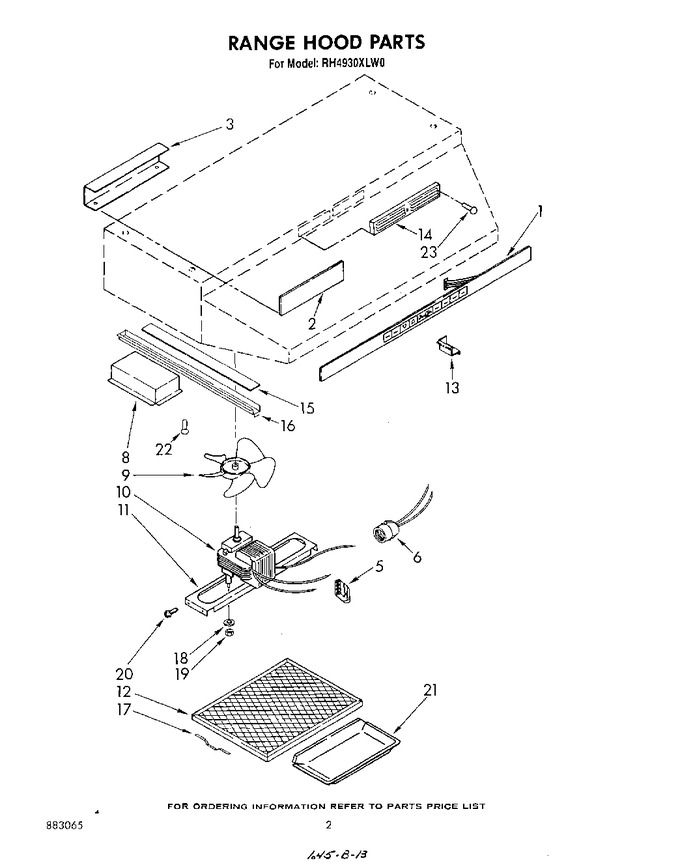

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 883018 | Switch, Membrane |
|
- | |||||
| 2 | 883020 | Microcomputer |
|
- | |||||
| 3 | 883066 | Cover, Microcomputer |
|
- | |||||
| 5 | 830173 | Receptacle, Motor Wire |
|
- | |||||
| 6 | 830755 | Receptacle, Light |
|
- | |||||
| 8 | 830368 | Damper Assembly |
|
- | |||||
| 9 | 830428 | Blade, Fan |
|
- | |||||
| 10 | 830425 | Motor, 2-speed |
|
- | |||||
| 11 | 830441 | Bracket, Motor |
|
- | |||||
| 12 | 830732 | Filter, Grease |
|
$ 43.94 | |||||
| 13 | 830690 | Box, Wiring (white) |
|
- | |||||
| 13 | 830693 | Box, Wiring (golden Harvest) |
|
- | |||||
| 13 | 883039 | Box, Wiring (toast) |
|
- | |||||
| 13 | 830694 | Box, Wiring (almond) |
|
- | |||||
| 13 | 883040 | Box, Wiring (platinum) |
|
- | |||||
| 13 | 830780 | Box, Wiring (stainless Steel) |
|
- | |||||
| 13 | 830691 | Box, Wiring (coffee) |
|
- | |||||
| 13 | 830692 | Box, Wiring (new Avocado) |
|
- | |||||
| 14 | 830775 | Vent, Louvered (golden Harvest) |
|
- | |||||
| 14 | 883042 | Vent, Louvered (platinum) |
|
- | |||||
| 14 | 883041 | Vent, Louvered (toast) |
|
- | |||||
| 14 | 830783 | Vent, Louvered (stainless Steel) |
|
- | |||||
| 14 | 830771 | Vent, Louvered (white) |
|
- | |||||
| 14 | 830772 | Vent, Louvered (almond) |
|
- | |||||
| 14 | 830773 | Vent, Louvered (coffee) |
|
- | |||||
| 14 | 830774 | Vent, Louvered (new Avocado) |
|
- | |||||
| 15 | 830778 | Plate, Cover |
|
- | |||||
| 16 | 830779 | Channel, Wire |
|
- | |||||
| 17 | 830489 | Spring, Filter (2) |
|
- | |||||
| 18 | 830462 | Washer, $sn8 (2) |
|
- | |||||
| 19 | WP486255 | Nut, 8-32 (2) (Replaces: 830484) |
|
$ 5.82 | |||||
| 20 | 830740 | Screw, 8 X 1/2 (4) |
|
- | |||||
| 21 | 883067 | Lens, Light |
|
- | |||||
| 22 | 830470 | Rivet, Pop (8) |
|
- | |||||
| 23 | 830807 | Rivet, Black (2) |
|
- | |||||
| 23 | 830852 | Duct Kit (model Rch4660) |
|
$ 64.94 | |||||
| LIT830735 | Order Blank, Filter |
|
- | ||||||
| LIT883065 | Repair Parts List |
|
- | ||||||
| LIT883064 | Instructions, Installation & Operating |
|
- |
