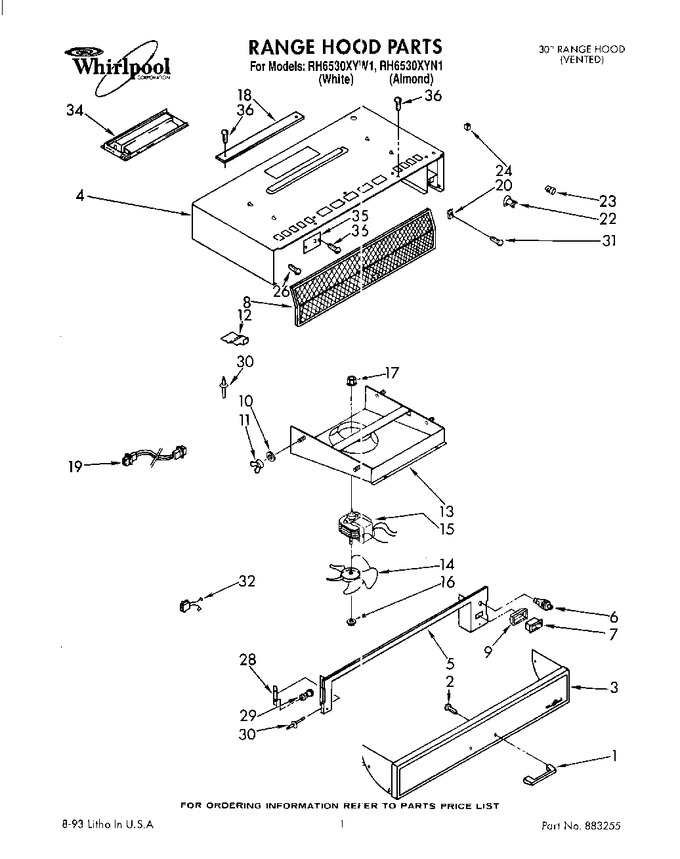

01 - Section
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 883061 | Handle (includes Illus. 2) |
|
- | |||||
| 2 | 883257 | Screw, No. 8 X 1/2 (2) |
|
- | |||||
| 3 | 883208 | Panel, Face (includes Illus. 1) |
|
- | |||||
| 5 | 883260 | Front Assembly (almond (includes Illus. 28, 29 & 30)) |
|
- | |||||
| 5 | 883109 | Front Assembly (white) |
|
- | |||||
| 6 | 830269 | Switch, Pushbutton |
|
- | |||||
| 7 | W10673703 | Switch, Rocker (Replaces: 883206) |
|
$ 129.60 | |||||
| 8 | 883071 | Filter |
|
- | |||||
| 9 | 883201 | Adapter, Switch |
|
- | |||||
| 10 | 830463 | Washer, No. 10 (4) |
|
- | |||||
| 11 | W10080180 | Nut, Wing 10-24 (4) (Replaces: 830464) |
|
$ 12.74 | |||||
| 12 | 883207 | Bracket, Front Support |
|
- | |||||
| 13 | 883258 | Fan Box Assembly (almond) |
|
- | |||||
| 13 | 883074 | Fan Box Assembly (white) |
|
$ 6.62 | |||||
| 14 | 830428 | Blade, Fan |
|
- | |||||
| 15 | 883254 | Motor, 2-speed |
|
- | |||||
| 16 | 883075 | Nut, Push |
|
- | |||||
| 17 | WP488130 | Nut, Lock 8-32 (2) (Replaces: 883130) |
|
$ 6.59 | |||||
| 18 | 830476 | Vent Cover, Ductless |
|
- | |||||
| 19 | 883256 | Dual Plug Assembly |
|
- | |||||
| 20 | 830454 | Nut, Spring (10-24) |
|
- | |||||
| 22 | 830814 | Switch, Thermal |
|
- | |||||
| 23 | 883024 | Strain Relief (2) |
|
- | |||||
| 24 | 830711 | Clip-u (3) |
|
- | |||||
| 26 | 883077 | Screw, Ground 10-32 X 3/8 |
|
- | |||||
| 28 | 830468 | Spring |
|
- | |||||
| 29 | 830469 | Rivet, Nylon |
|
- | |||||
| 30 | 830470 | Rivet, Pop (14) |
|
- | |||||
| 31 | 830867 | Screw, 6-32 X 1/4 (2) |
|
- | |||||
| 32 | 883259 | Receptacle Assembly |
|
- | |||||
| 34 | 883082 | Clip, `t` (4) |
|
- | |||||
| 34 | 830740 | Screw, No.8x1/4 (2) |
|
- | |||||
| 34 | WP90767 | Screw, No.8x3/8 (2) (Replaces: 830747) |
|
Immediately | $ 7.43 | ||||
| 34 | 830474 | Bracket, Mounting (microwave) |
|
- | |||||
| 34 | 830368 | Damper Assembly |
|
- | |||||
| 34 | 883025 | Nut, Crimp |
|
- | |||||
| LIT883199 | Instructions, Installation & Operating |
|
- | ||||||
| LIT883210 | Wiring Diagram |
|
- | ||||||
| LIT830735 | Order Blank, Filter |
|
- |
