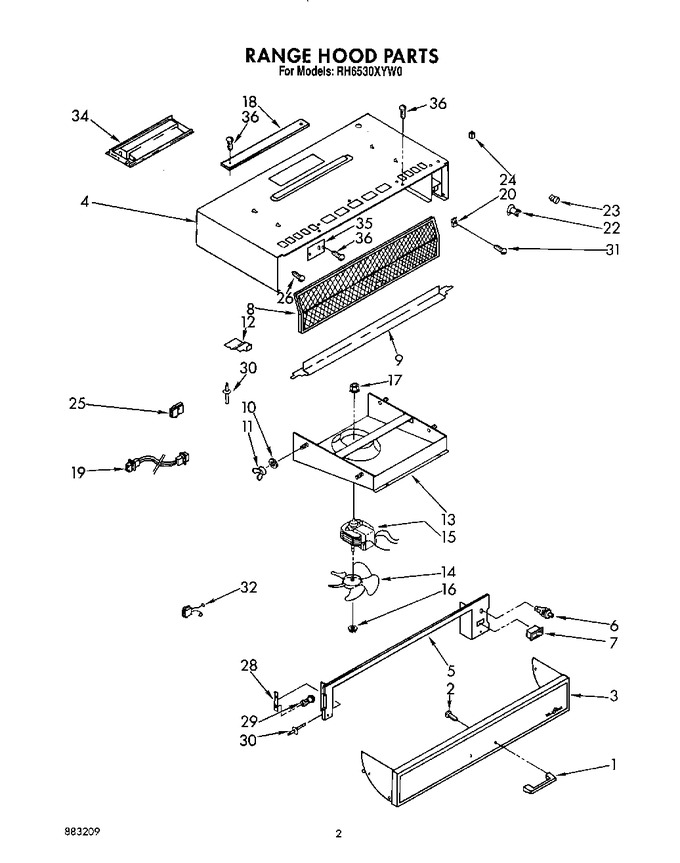

SELECT A DIAGRAM

01 - Section


02 - Section


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	883061		Handle (includes Illus. 2)		Appelez-nous	-
2	WP486579		Screw, No. 8 X 3/8 (2)   (Replaces: 883017)				$ 7.10
3	883208		Panel, Face (includes Illus. 1)		Appelez-nous	-
5	883109		Front Assembly (includes Illus. 28, 29 & 30)		Appelez-nous	-
6	830269		Switch, Pushbutton		Appelez-nous	-
7	W10673703		Switch, Rocker   (Replaces: 830471)				$ 129.60
8	883071		Filter		Appelez-nous	-
9	883072		Support, Filter		Appelez-nous	-
10	830463		Washer, No. 10 (4)		Appelez-nous	-
11	W10080180		Nut, Wing 10-24 (4)   (Replaces: 830464)				$ 12.74
12	883207		Bracket, Front Support		Appelez-nous	-
13	883074		Fan Box Assembly				$ 6.62
14	830428		Blade, Fan		Appelez-nous	-
15	830708		Motor, 2-speed		Appelez-nous	-
16	883075		Nut, Push		Appelez-nous	-
17	WP488130		Nut, Lock 8-32 (2)   (Replaces: 883076)				$ 6.59
18	830476		Vent Cover, Ductless		Appelez-nous	-
19	830709		Dual Plug Assembly		Appelez-nous	-
20	830454		Nut, Spring (10-24)		Appelez-nous	-
22	830814		Switch, Thermal		Appelez-nous	-
23	883024		Strain Relief (2)		Appelez-nous	-
24	830711		Clip-u (3)		Appelez-nous	-
25	830173		Receptacle, Snap-in (2)		Appelez-nous	-
26	883077		Screw, Ground 10-32 X 3/8		Appelez-nous	-
28	830468		Spring		Appelez-nous	-
29	830469		Rivet, Nylon		Appelez-nous	-
30	830470		Rivet, Pop (14)		Appelez-nous	-
31	830867		Screw, 6-32 X 1/4 (2)		Appelez-nous	-
32	883079		Receptacle Assembly		Appelez-nous	-
34	830368		Damper Assembly		Appelez-nous	-
35	883081		Cover, Wiring Box		Appelez-nous	-
36	883025		Nut, Crimp		Appelez-nous	-
36	WP489069		Screw, 8 X 1/4 (16)   (Replaces: 830465)			Immediately	$ 7.56
36	883082		Clip, `t` (4)		Appelez-nous	-
	LIT883199		Instructions, Installation & Operating		Appelez-nous	-
	LIT883209		Repair Parts List		Appelez-nous	-
	LIT830735		Order Blank, Filter		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
