SELECT A DIAGRAM
02 - Ventilation Parts

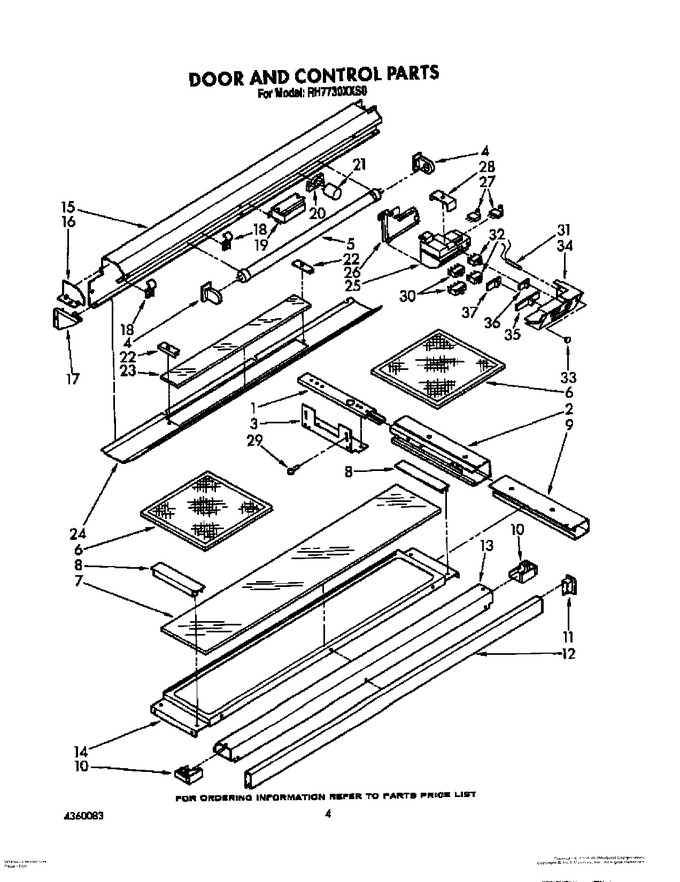

03 - Door And Control Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4360010 | Guide, Door (2) |
|
$ 38.55 | |||||
| 2 | 4360037 | Guide, Housing (right Side) |
|
- | |||||
| 2 | 4360011 | Guide, Housing (left Side) |
|
- | |||||
| 3 | 4360012 | Support Guide |
|
- | |||||
| 4 | 4360013 | Socket, Lamp (2) |
|
- | |||||
| 5 | 4360014 | Lamp |
|
- | |||||
| 6 | WPW10370046 | Filter (Replaces: 4360015) |
|
$ 157.19 | |||||
| 7 | 4360076 | Glass, Door |
|
- | |||||
| 8 | 4360017 | Brace, Glass (2) |
|
- | |||||
| 9 | 4360018 | Frame, Door (left Side) |
|
- | |||||
| 9 | 4360024 | Frame, Door (right Side) |
|
- | |||||
| 10 | 4360069 | End Cap, Door (left Side) |
|
- | |||||
| 10 | 4360070 | End Cap, Door (right Side) |
|
$ 7.42 | |||||
| 11 | 4360020 | End Cap, Handle (left Side) |
|
- | |||||
| 11 | 4360022 | End Cap, Handle (right Side) |
|
- | |||||
| 12 | 4360078 | Handle |
|
- | |||||
| 13 | 4360079 | Bracket, Handle |
|
- | |||||
| 14 | 4360077 | Baffle, Door |
|
- | |||||
| 15 | 4360080 | Support, Light |
|
- | |||||
| 16 | 4360066 | End Plate |
|
- | |||||
| 17 | 4360043 | Bracket, Light |
|
- | |||||
| 18 | 4360044 | Clamp, Wiring |
|
- | |||||
| 19 | 4360045 | Ballast Lamp |
|
- | |||||
| 20 | 4360047 | Receptacle |
|
- | |||||
| 21 | 4360046 | Starter |
|
- | |||||
| 22 | 4360041 | Brace, Glass (2) |
|
- | |||||
| 23 | 4360042 | Lens, Light |
|
- | |||||
| 24 | 4360081 | Frame, Lens |
|
- | |||||
| 25 | 4360033 | Base, Switch |
|
- | |||||
| 26 | 4360034 | Cover, Base |
|
- | |||||
| 27 | WPW10240604 | Switch (2) (Replaces: 4360035) |
|
$ 260.25 | |||||
| 28 | 4360036 | Cover, Switch |
|
- | |||||
| 29 | 4360073 | Screw |
|
- | |||||
| 30 | 4360025 | Switch, Light (2) |
|
- | |||||
| 31 | 4360026 | Light, Indicator |
|
- | |||||
| 32 | 4360027 | Switch, Fan (2) |
|
$ 46.00 | |||||
| 33 | 4360028 | Lens Indicator Light |
|
$ 6.34 | |||||
| 34 | 4360029 | Cover, Switch |
|
- | |||||
| 35 | 4360030 | Knob, Control |
|
- | |||||
| 36 | 4360031 | Knob, Fan |
|
- | |||||
| 37 | 4360032 | Knob, Light |
|
- | |||||
| LIT4360082 | Wiring Diagram |
|
- | ||||||
| WP883140 | Non-vent Kit (Replaces: 883140) |
|
$ 148.75 | ||||||
| LIT883141 | Installation Instructions |
|
- | ||||||
| LIT4360083 | Parts List |
|
- | ||||||
| 883144 | Front Kit (white) |
|
- | ||||||
| 883142 | Front Kit (black) |
|
- |
