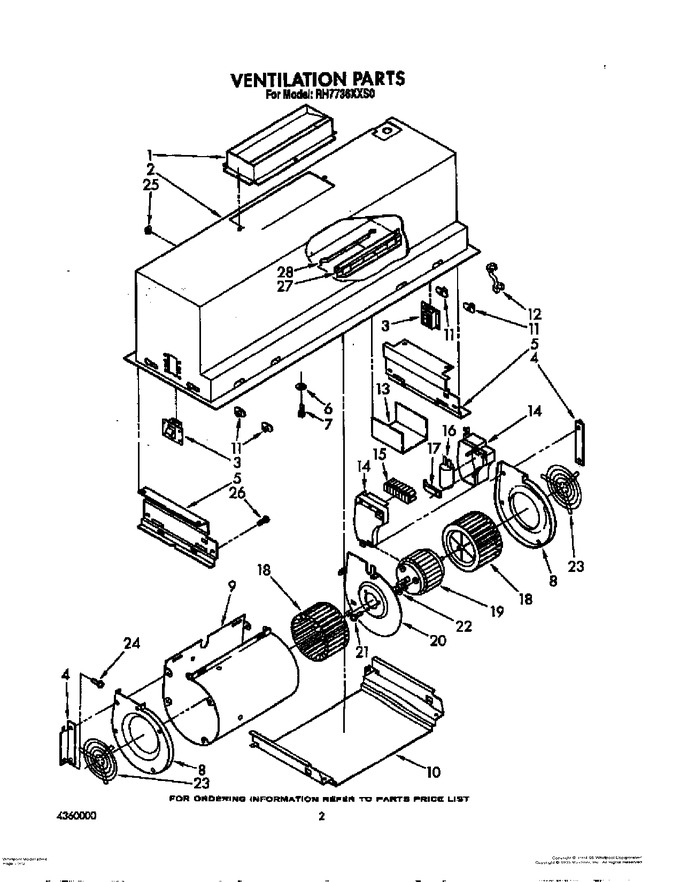

02 - Ventilation Parts
03 - Door And Control Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4360001 | Damper Canopy |
|
- | |||||
| 2 | N/A | Canopy (not Serviceable) |
|
- | |||||
| 3 | 4360002 | Support, Canopy (2) |
|
$ 49.85 | |||||
| 4 | 4360054 | Bracket, Blower (right Side) |
|
- | |||||
| 4 | 4360003 | Bracket, Blower (left Side) |
|
- | |||||
| 5 | 4360039 | Support Blower Housing (right Side) |
|
- | |||||
| 5 | 4360004 | Support Blower Housing (left Side) |
|
- | |||||
| 6 | 4360005 | Washer |
|
$ 5.62 | |||||
| 7 | 4360006 | Screw 5 X 1/2 (3) |
|
$ 6.12 | |||||
| 8 | 4360053 | Endcap, Blower (right) |
|
- | |||||
| 8 | 4360007 | Endcap, Blower (left) |
|
- | |||||
| 9 | 4360008 | Housing, Blower |
|
- | |||||
| 10 | 4360009 | Support, Housing |
|
- | |||||
| 11 | 4360063 | Bushing (4) |
|
- | |||||
| 12 | 4360062 | Relief, Strain |
|
- | |||||
| 13 | 4360061 | Plate Mount |
|
- | |||||
| 14 | 4360060 | Cover Terminal (left Side) |
|
- | |||||
| 14 | 4360056 | Cover Terminal (right Side) |
|
- | |||||
| 15 | 4360057 | Terminal |
|
- | |||||
| 16 | 4360058 | Capacitor |
|
- | |||||
| 17 | 4360059 | Capacitor Bracket |
|
- | |||||
| 18 | 4360049 | Wheel, Blower (left Side) |
|
- | |||||
| 18 | 4360055 | Wheel, Blower (right Side) |
|
- | |||||
| 19 | 4360040 | Motor |
|
- | |||||
| 20 | 4360052 | Plate, Motor |
|
- | |||||
| 21 | 4344826 | Screw 4 X 8 (3) (Replaces: 4360050) |
|
$ 16.70 | |||||
| 22 | 4360051 | Washer (3) |
|
- | |||||
| 23 | 4360064 | Grille, Blower (2) |
|
- | |||||
| 24 | 4360067 | Screw 6 X 10 (2) |
|
- | |||||
| 25 | 4360074 | Clip (2) |
|
- | |||||
| 26 | 4360048 | Pin, Filter (2) |
|
- | |||||
| 27 | 4360071 | Bracket, Filter |
|
- | |||||
| 28 | 4360072 | Spring, Filter (2) |
|
- |
