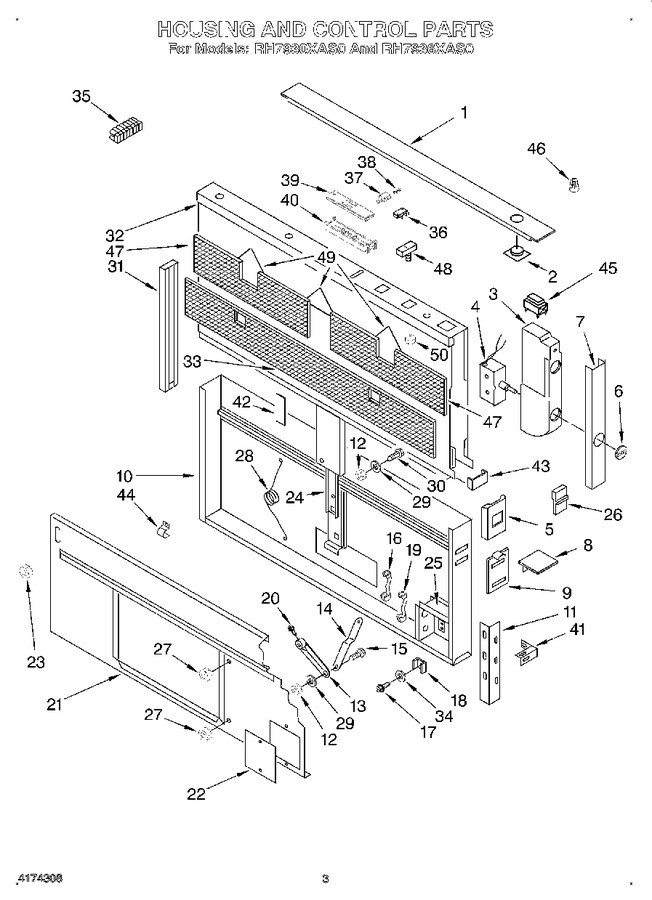

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4360227 | Cover, Controls (top) (rh7936xas0) |
|
- | |||||
| 1 | 4360215 | Cover, Controls (top) (rh7930xas0) |
|
- | |||||
| 2 | 4360216 | Button, Push |
|
- | |||||
| 3 | 4360134 | Housing, Switch |
|
- | |||||
| 4 | 4360135 | Switch, Fan |
|
- | |||||
| 5 | 4360136 | Shield, Support Bracket |
|
- | |||||
| 6 | 4360217 | Knob |
|
- | |||||
| 7 | 4360218 | Panel, Control |
|
- | |||||
| 8 | 4360219 | End Cap (2) |
|
- | |||||
| 9 | 4360140 | Plate, Support (upper) (2) |
|
- | |||||
| 10 | N/A | Housing, (not Serviceable) |
|
- | |||||
| 11 | 4360170 | Bracket, Support (lower L.h.) |
|
- | |||||
| 11 | 4360141 | Bracket, Support (lower R.h.) |
|
- | |||||
| 12 | 4360142 | Nut |
|
- | |||||
| 13 | 4360143 | Arm, Gear Motor |
|
- | |||||
| 14 | 4360144 | Arm, Cavity |
|
- | |||||
| 15 | 4360145 | Bolt |
|
- | |||||
| 16 | 4360062 | Relief, Strain |
|
- | |||||
| 17 | 4360006 | Screw |
|
$ 6.12 | |||||
| 18 | 4360146 | Grounding, Guide |
|
$ 6.02 | |||||
| 19 | 4360147 | Strain Relief |
|
- | |||||
| 20 | 4360148 | Screw, Set |
|
- | |||||
| 21 | N/A | Cover, Housing (not Serviceable) |
|
- | |||||
| 22 | 4360149 | Cover, Wiring Box |
|
- | |||||
| 23 | 4360150 | Nut In Guide (2) |
|
- | |||||
| 24 | N/A | Guide, Housing (not Serviceable) |
|
- | |||||
| 25 | 4360152 | Box, Wiring |
|
- | |||||
| 26 | 4360153 | Clamp |
|
- | |||||
| 27 | WP776338 | Nut (2) (Replaces: 4360156) |
|
$ 20.32 | |||||
| 28 | 4360157 | Spring |
|
- | |||||
| 29 | 98007193 | Washer (Replaces: 4360158) |
|
$ 10.38 | |||||
| 30 | 4360159 | Bolt |
|
- | |||||
| 31 | 4360221 | Trim, L.h. |
|
- | |||||
| 32 | N/A | Filter Frame Grease Not Serviceable |
|
- | |||||
| 33 | 4360220 | Filter, Grease (rh7930xas0) |
|
- | |||||
| 33 | 4360225 | Filter, Grease (rh7936xas0) |
|
- | |||||
| 34 | 4360005 | Washer |
|
$ 5.62 | |||||
| 35 | 4360165 | Terminal |
|
- | |||||
| 36 | W10235643 | Micro Switch (2) (Replaces: 4360196) |
|
$ 318.87 | |||||
| 37 | W10235643 | Actuator, Micro Switch (2) (Replaces: 4360166) |
|
$ 318.87 | |||||
| 38 | W10235643 | Spring (2) (Replaces: 4360167) |
|
$ 318.87 | |||||
| 39 | W10235643 | Cover, Switch (Replaces: 4360168) |
|
$ 318.87 | |||||
| 40 | W10235643 | Housing, Switch (Replaces: 4360169) |
|
$ 318.87 | |||||
| 41 | 4360172 | Support (r.h.) |
|
- | |||||
| 41 | 4360171 | Support (l.h.) |
|
- | |||||
| 42 | 4360173 | Guide, Housing (back) |
|
$ 6.41 | |||||
| 43 | 4360174 | Spacer, Cavity (2) |
|
- | |||||
| 44 | 4360044 | Clamp, Wiring |
|
- | |||||
| 45 | 4360210 | Switch |
|
- | |||||
| 46 | 4360211 | Nut, Wire |
|
- | |||||
| 47 | 4360226 | Filter, Metal Grease (2) (rh7936xas0) |
|
- | |||||
| 47 | 4360222 | Filter, Metal Grease (2) (rh7930xas0) |
|
- | |||||
| 48 | 4360223 | Bracket (3) |
|
- | |||||
| 49 | 4360224 | Clamp, Filter (3) |
|
- | |||||
| 50 | 4360164 | Nut, Wing |
|
- | |||||
| 50 | 4360228 | Installation Kit |
|
- | |||||
| 883240 | Trim Kit-white (rh7930xas0) |
|
- | ||||||
| 883242 | Trim Kit-white (rh7936xas0) |
|
- | ||||||
| 883239 | Trim Kit-black (rh7930xas0) |
|
- | ||||||
| LIT0883243 | Installation Instructions/use And Care Guide |
|
- | ||||||
| 814380 | Kit , Motor Mount |
|
- | ||||||
| 883241 | Trim Kit-black (rh7936xas0) |
|
- |
