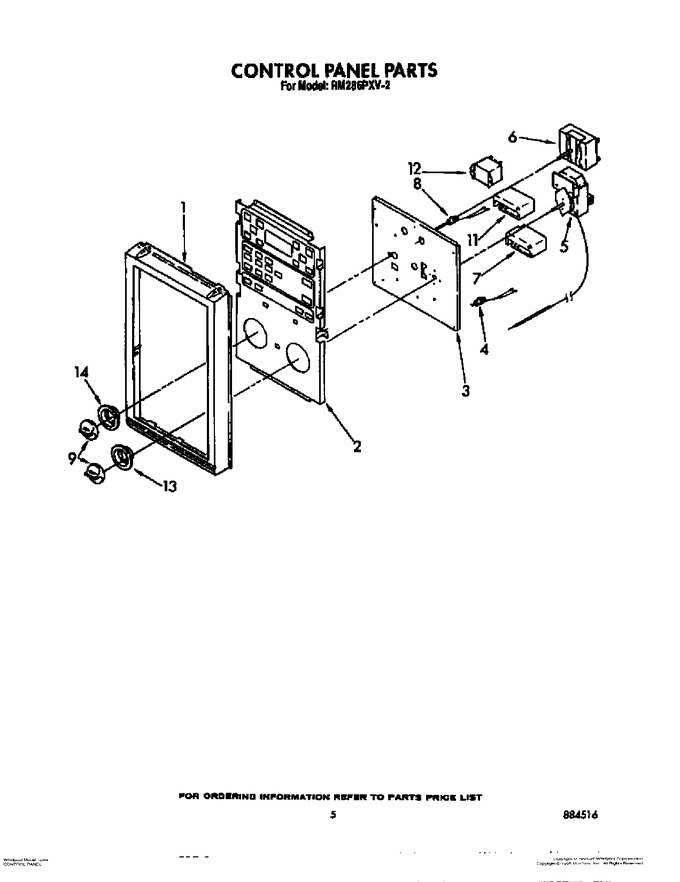

04 - Control Panel


05 - Magnetron And Air Flow


06 - Stirrer Drive


07 - Microwave Door


08 - Microwave Cabinet, Optional


09 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3149372		Frame, Control		Appelez-nous	-
2	3149891		Module, Control		Appelez-nous	-
2	313818		Screw, 8-32 X 3/16 (6)		Appelez-nous	-
3	3147282		Bracket, Control		Appelez-nous	-
3	313818		Screw, 8-32 X 3/16 (4)		Appelez-nous	-
4	3149035		Indicator, Light		Appelez-nous	-
5	WP313808		Screw, 6-32 X 1/4 (2)   (Replaces: 311932)				$ 8.30
5	3148931		Thermostat		Appelez-nous	-
6	308119		Screw, 8-32 X 3/16 (2)		Appelez-nous	-
6	3147235		Switch, Selector		Appelez-nous	-
7	314215		Screw, No.6		Appelez-nous	-
7	314210		Switch, Bake (4)		Appelez-nous	-
8	3148566		Light, Indicator (2)		Appelez-nous	-
9	3150372		Knob, Control (2)		Appelez-nous	-
11	314215		Screw, No.6		Appelez-nous	-
11	314209		Switch, Broil		Appelez-nous	-
12	314125		Relay, Power		Appelez-nous	-
12	246131		Screw, 6ab X 3/8 (2)		Appelez-nous	-
13	254225		Screw (2)		Appelez-nous	-
13	3149686		Escutcheon, Thermostat		Appelez-nous	-
14	254225		Screw (2)		Appelez-nous	-
14	WP311068		Escutcheon, Selector   (Replaces: 3149174)				$ 58.02
