SELECT A DIAGRAM

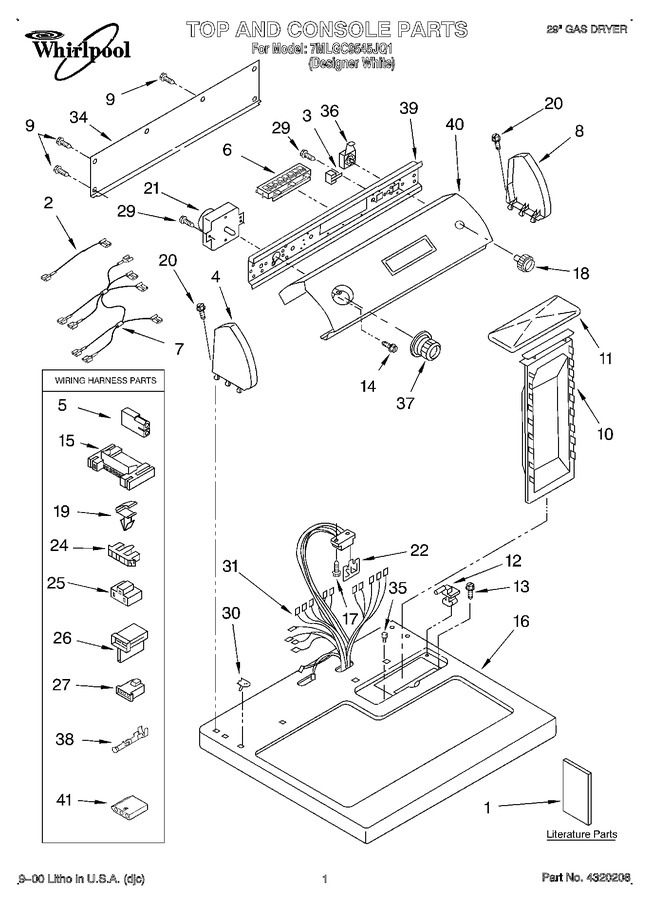

01 - Top And Console, Lit/optional


02 - Cabinet


03 - Bulkhead


04 - 3402844 Burner


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT3405347		Literature Parts (instructions, Installation)		Appelez-nous	-
1	LIT8519508		Literature Parts (label, Wiring Diagram)		Appelez-nous	-
1	LIT8314838		Literature Parts (use & Care Guide)		Appelez-nous	-
2	3393812		Wire, Jumper (blue)		Appelez-nous	-
2	3393811		Wire, Jumper (violet)		Appelez-nous	-
3	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 134.05
4	8271365		Cap, End (l.h.)		Appelez-nous	-
5	717252		Plug, 2-way Terminal		Appelez-nous	-
6	8318269		Switch, Clean Touch		Appelez-nous	-
7	3396032		Wire, Jumper (guard/signal)		Appelez-nous	-
8	8271359		Cap, End (r.h.)		Appelez-nous	-
9	WP693995		Screw, Hex Washer Head   (Replaces: 693995)			Immediately	$ 7.55
10	WP349639		Handle & Lint Screen Assembly   (Replaces: 349639)			Immediately	$ 37.21
11	8283378		Cover, Lint Screen				$ 44.80
12	WPW10044470		Hinge, R.h.   (Replaces: 3978605)				$ 8.11
12	WPW10044480		Hinge, L.h.   (Replaces: 3978606)				$ 8.11
13	W11693756		Screw, 8-18 X 5/8   (Replaces: 688983)			Immediately	$ 14.76
14	3400859		Screw, Grounding				$ 13.88
15	3395683		Connector (motor)			Immediately	$ 54.45
16	8271390		Top		Appelez-nous	-
17	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 8.47
18	3957804		Knob, Push To Start   (Replaces: 8271341)				$ 52.89
19	WP3394427		Clip, Harness   (Replaces: 3394427)				$ 8.18
20	WP388326		Screw, Console   (Replaces: 388326)				$ 9.29
21	8299762		Timer Assembly (60 Hz.)				$ 155.99
22	WPW10476828		Control, Electronic   (Replaces: 3390537)			Immediately	$ 329.93
24	3397269		Connector, Timer				$ 25.55
25	3401144		Connector, (pts Relay)				$ 12.81
26	WP3403499		Connector, 2-position Gas Valve   (Replaces: 3403499)				$ 6.02
27	WP3403498		Connector, 3-position (gas Valve)   (Replaces: 3403498)				$ 7.30
29	WPW10139210		Screw, 8-18 X 5/16   (Replaces: 3390646)				$ 8.03
30	WP357213		Nut, Push-in (2)   (Replaces: 357213)				$ 7.76
31	3394309		Harness, Wiring		Appelez-nous	-
34	W10103406		Panel, Rear Console   (Replaces: 8274261)				$ 135.31
35	297535		Bumper, Lint Lid		Appelez-nous	-
36	WP3398094		Switch, Push-to-start   (Replaces: 3398094)			Immediately	$ 88.09
37	WP3957754		Timer Knob Assembly   (Replaces: 8312687)				$ 62.86
38	WP94614		Terminal (female)   (Replaces: 94614)				$ 8.05
39	8271426		Bracket, Control		Appelez-nous	-
40	3977844		Panel, Control		Appelez-nous	-
41	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
41	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
41	3936144		Connector				$ 21.22
41	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
41	350938		Paint, Pressurized Spray (12 Oz.) (primer,grey)		Appelez-nous	-
	LIT677818		Dryer		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
