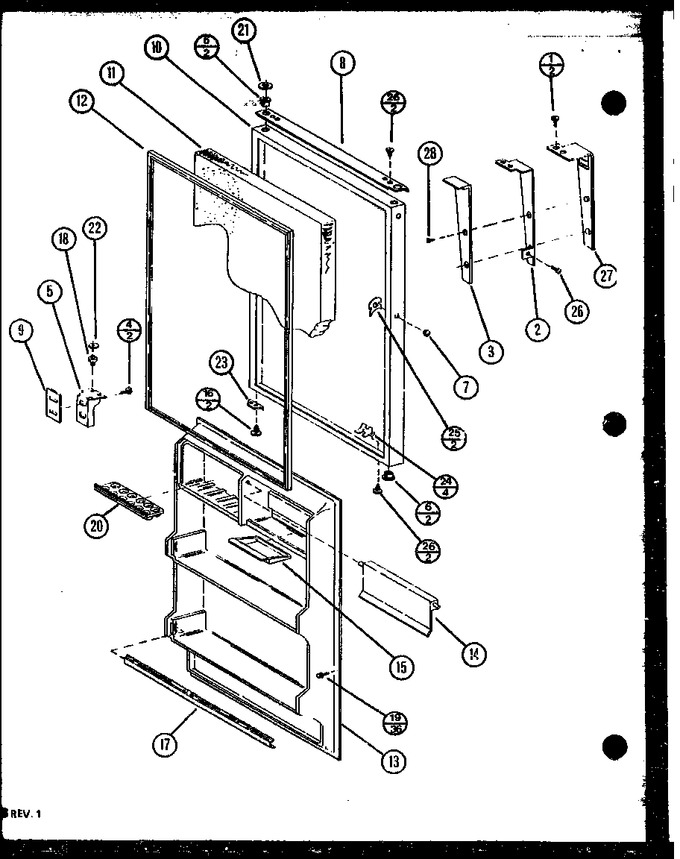

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10348409		Screw   (Replaces: M0222416)			Immediately	$ 7.76
2	D7744802		Door Handle		Appelez-nous	-
3	D7745006		Pad, Handle Ref		Appelez-nous	-
4	M0246258		Screw		Appelez-nous	-
5	C8814803		Bracket Lower Hinge		Appelez-nous	-
6	C8852202		Bearing, Hinge		Appelez-nous	-
6	C3652901		Bushing, Hinge Pin		Appelez-nous	-
7	M0311301		Plug Button		Appelez-nous	-
8	D3958304		Door Cap		Appelez-nous	-
9	B5744804		Shim, Bottom Hinge		Appelez-nous	-
9	B5744801		Kit,btm Hinge Shim		Appelez-nous	-
9	B5744803		Shim		Appelez-nous	-
9	B5744802		Shim		Appelez-nous	-
10	D7745301		Dr Ref W Tr18		Appelez-nous	-
11	B5683507		Insulation		Appelez-nous	-
12	D7605107		Gasket		Appelez-nous	-
13	D7652304		Inner Dr Panel-ref		Appelez-nous	-
14	D7604419		Door Dairy		Appelez-nous	-
15	D3799802		Butter Tray		Appelez-nous	-
16	M0203458		Screw		Appelez-nous	-
17	C8907218		Retainer, Pkg		Appelez-nous	-
18	C8814901		Pin, Hinge K		Appelez-nous	-
19	M0219717		Screw		Appelez-nous	-
20	D7587812		Tray Egg		Appelez-nous	-
21	M0274049		Washer		Appelez-nous	-
22	M0274050		Washer		Appelez-nous	-
23	C8894802		Door Stop		Appelez-nous	-
24	B8363501		Nut		Appelez-nous	-
25	B8361401		Nut		Appelez-nous	-
26	M0203931		Screw, Tf		Appelez-nous	-
27	D7744908		Pad Outer		Appelez-nous	-
28	M0215115		Screw		Appelez-nous	-
