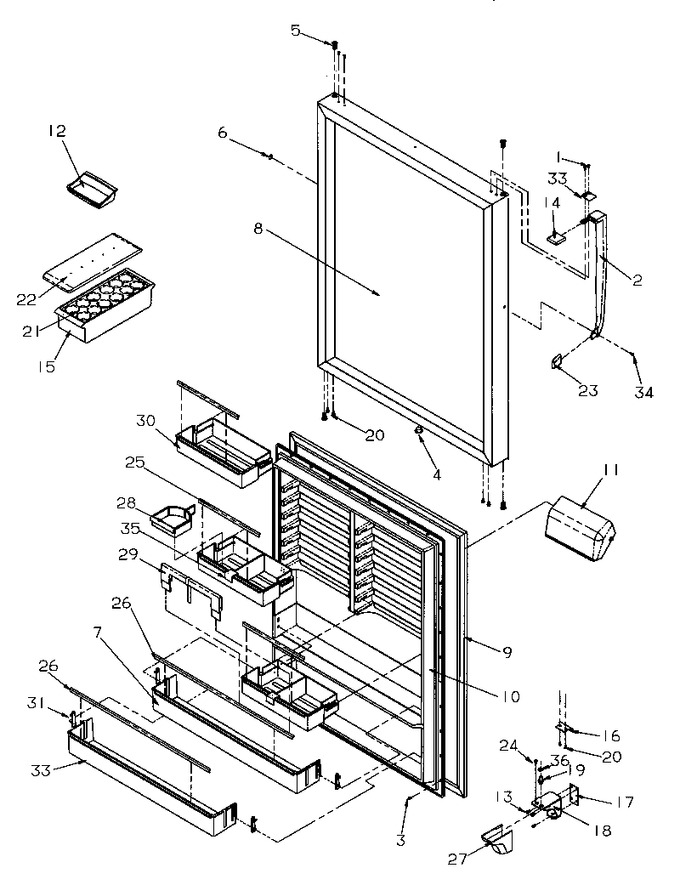

TR21S4E (BOM: P1196104W E) | Leon's : Appliance Model Lookup

Diagram #	Part Number	Description	Availability	Ships	Price
1	M0221744	Screw-sm Shldr	Appelez-nous	-
2	10903105	Handle, E Ref	Appelez-nous	-
3	M0219730	Screw			$ 7.65
4	M0310336	Plug, Button (blk)	Appelez-nous	-
5	10961002	Bushing, Door (blk)	Appelez-nous	-
6	WP12246608	Plug, Top Hinge Button (blk) (Replaces: M0310731)		Immediately	$ 8.15
7	10419004A	Retainer, Ref Door	Appelez-nous	-
8	10925401E	Assy, Ref Door (black) Cfc11	Appelez-nous	-
9	10456813	Gasket,ref Dr(black)	Appelez-nous	-
10	10440804	Liner, Ref Door	Appelez-nous	-
11	10423416	Door,dairy	Appelez-nous	-
12	10310901	Tray, Butter	Appelez-nous	-
13	WP67006715	Screw (Replaces: M0233847)			$ 7.55
14	10913504	Cap-e Dr Hndl	Appelez-nous	-
15	10423128	Bin-utility	Appelez-nous	-
16	10447102	Stop, Door	Appelez-nous	-
17	10447903	Shim, Btm Hinge	Appelez-nous	-
18	10433209	Hinge, Bottom Black	Appelez-nous	-
19	67007018	Pin, Hinge (btm) (Replaces: 10200801)		Immediately	$ 8.62
20	WPW10348409	Screw, Mounting (Replaces: M0211533)		Immediately	$ 8.20
21	10436505	Tray, Egg	Appelez-nous	-
22	10436404	Lid, Utility			$ 60.85
23	10907407	Cap-e Ref Hndl	Appelez-nous	-
25	10183980	Trim-door Shelf	Appelez-nous	-
25	10183982	Trim- Door Shelf	Appelez-nous	-
26	10183971	Trim Door Shelf	Appelez-nous	-
27	10462801	Cover, Hinge Lower (black)	Appelez-nous	-
28	10441101	Hugger, Bottle (shelf Divider)	Appelez-nous	-
29	10468001	Retainer, Tall Pkg	Appelez-nous	-
30	10416903	Shelf, Ref Door	Appelez-nous	-
31	10202001	Clip, Retainer	Appelez-nous	-
33	12044401	Clip-door Cap	Appelez-nous	-
34	WPW10348409	Screw, Mounting (Replaces: M0211533)		Immediately	$ 8.20
35	10467501	Snugger, Door Shelf (shelf Div	Appelez-nous	-
36	M0274058	Shim, Non Metal (wht)			$ 5.83
NI	10183110	Retainer, Ref Door	Appelez-nous	-
NI	10502903	Bucket, Ref Door	Appelez-nous	-
