Diagram # Part Number Description Series Availability Ships Price Add to Cart
13 10422304 Shroud, Evap. Fan Appelez-nous -
22 10442408 Thermostat Appelez-nous -
23 W10116797 Fan,evap   (Replaces: 10855402) In-Stock Immediately $ 8.56

32 W11673433 Clip, Evap Heater   (Replaces: 10428101) Special Order $ 148.18

33 10654206 Motor, Evap Fan Appelez-nous -
42 10991102 Heater, Evaporator Appelez-nous -
43 WP2264462 Grommet   (Replaces: A1017202) In-Stock Immediately $ 46.17

51 Y00000000 See Note Evap Assy -- (for Piece Part Breakdown See Image 2) Appelez-nous -
52 R0170068 Assy,low Side Appelez-nous -
53 10771801 Brkt, Mtr/shroud Appelez-nous -
63 10771701 Brkt, Evap. Fan Appelez-nous -
73 WP90767 Screw, Sm   (Replaces: M0224416) In-Stock Immediately $ 8.25

82 10991001 Block-r Evap Appelez-nous -
111 67006425 Screw, Sm   (Replaces: M0238616) In-Stock Immediately $ 7.30

121 67006425 Screw, Sm   (Replaces: M0238616) In-Stock Immediately $ 7.30

511 10428301 Block, Evap. L. Appelez-nous -
531 67006425 Screw-sm No.8-1/2lg   (Replaces: M0211017) In-Stock Immediately $ 7.30

681 10685508 Gasket, Sealing Appelez-nous -
691 10432408 Cover, Evaporator Appelez-nous -
991 Y00000000 See Note Evap Fan Assy -- (for Piece Part Breakdown See Image 3) Appelez-nous -
1001 10440714 Cover, Evaporator Appelez-nous -
1011 10427712 Shield, Evap. Appelez-nous -
1061 10442301 Clip, Evaporator Appelez-nous -
1071 10439305 Ladder, Center Appelez-nous -
1081 10439701 Ladder, Ctr. Support Appelez-nous -
1091 10439401 Ladder R. Side Evap Appelez-nous -
1111 10439402 Ladder, L. Side Evap. Appelez-nous -
1131 10562401 Cap Frz Ladder Appelez-nous -
1291 A3030356 Gasket Appelez-nous -
1421 WP489399 Screw   (Replaces: M0232903) Special Order $ 7.30

1461 M0238637 Screw, Sm Appelez-nous -
1481 M0238921 Screw, Sm Appelez-nous -
2051 A3189348 Gasket, Foam Appelez-nous -
3001 B5759626 Gasket, Sealing Appelez-nous -
6051 10584701 Insert, Frz. Ladder Appelez-nous -
6801 10586601 Clip, Ht Transfer Appelez-nous -
7001 M0321210 Tie, Elec Appelez-nous -
7631 A3030354 Gasket Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

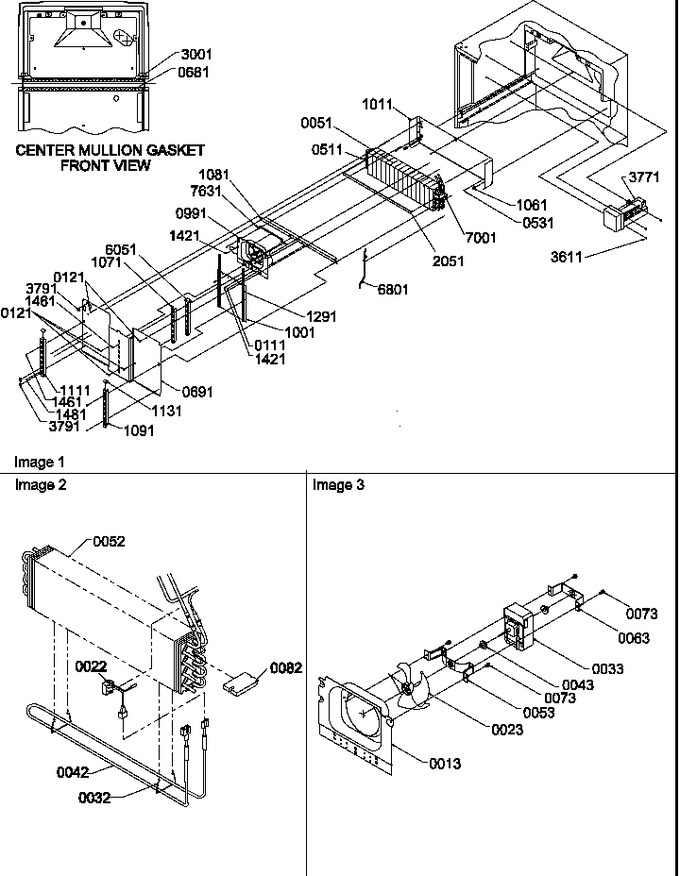

Diagram for TR21S4W (BOM: P1196105W W)
