SELECT A DIAGRAM

01 - Cabinet Back


02 - Door Assemblies


03 - Door, Hinges And Accessories


04 - Evap And Fan Motor Assemblies


05 - Ice Maker Assy And Parts


06 - Interior Cabinet And Drain Block Assy


07 - Ladders, Lower Cabinet And Rollers


08 - Machine Compartment


09 - Shelving Assemblies

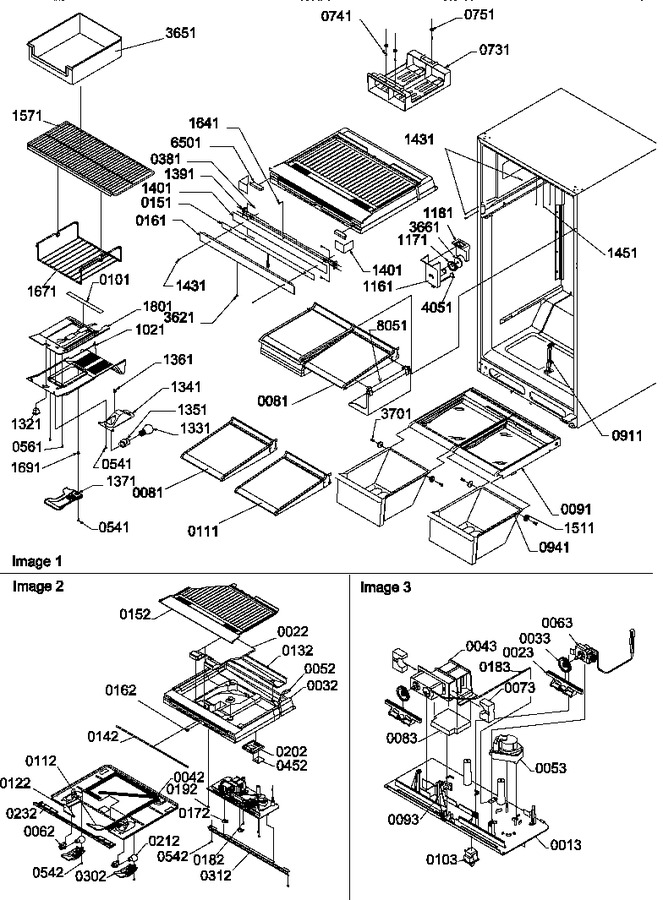

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
13	12035102		Kit, Housing Control		Appelez-nous	-
22	10476401		Insert-drain Blk		Appelez-nous	-
23	10439601		Rack, Control		Appelez-nous	-
32	10996101		Block-drain		Appelez-nous	-
33	10442601		Pinion, Control		Appelez-nous	-
42	12035216		Ref Top- E Ct		Appelez-nous	-
43	R0161072		Assy, Damper Control		Appelez-nous	-
52	10573504		Harness, Mullion		Appelez-nous	-
53	R0168027		Timer-defrost   (Replaces: 10428601)			Immediately	$ 159.86
62	D7714406		Socket, Angle		Appelez-nous	-
63	R0161075		Assy, Frz Control		Appelez-nous	-
73	10442801		Insert,damper		Appelez-nous	-
81	10926204		Assy, Shelf Hlf Gls		Appelez-nous	-
83	10442901		Insulation, Damper		Appelez-nous	-
91	10698520		Assy, Crisp Frame		Appelez-nous	-
93	M0350201		Switch, St		Appelez-nous	-
101	B8386613		Gasket		Appelez-nous	-
103	W11384469		Switch   (Replaces: C3680304)			Immediately	$ 39.09
111	10895709		Shelf, Stationary		Appelez-nous	-
112	10467701		Pipe, Light		Appelez-nous	-
122	10467702		Pipe, Light		Appelez-nous	-
132	10435913		Tray, Drip		Appelez-nous	-
142	10450833		Membrane, Breaker		Appelez-nous	-
151	10543602		Heater, Mullion		Appelez-nous	-
152	10995004		Freezer Bottom		Appelez-nous	-
161	10433347		Mullion, Center (white)		Appelez-nous	-
162	10453001		Cap, Switch		Appelez-nous	-
172	10565401		Knob, Control		Appelez-nous	-
182	67006425		Screw, Sm   (Replaces: M0238616)			Immediately	$ 7.30
183	A3012543		Tube-plastic		Appelez-nous	-
192	M0224128		Screw		Appelez-nous	-
202	10995201		Insert-mk Air Sply		Appelez-nous	-
212	40A15		Bulb, Light (40 Watt)   (Replaces: A0282803)			Immediately	$ 1.98
232	10435512		Frame, Ref Top Brk		Appelez-nous	-
302	10508701		Shield, Refrig. Light		Appelez-nous	-
312	10645602		Extrusion, Rear Light		Appelez-nous	-
381	R9800670		Screw, Tf   (Replaces: M0238731)				$ 10.58
452	10594901		Gasket, Mk Air Supply		Appelez-nous	-
541	WP90767		Screw   (Replaces: M0216716)			Immediately	$ 8.25
542	WP90767		Screw   (Replaces: M0216716)			Immediately	$ 8.25
561	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
731	10423001		Rack, Ice Service		Appelez-nous	-
741	M0238823		Screw, Sm		Appelez-nous	-
751	M0270508		Washer		Appelez-nous	-
911	10461901		Post, Crisper Support			Immediately	$ 25.85
941	Y10430111		Pan-crisper		Appelez-nous	-
1021	10440403		Duct, Frz Air		Appelez-nous	-
1161	10642103		Cover, Mk Air Sply		Appelez-nous	-
1171	10479401		Control, Mt. Kpr. Air Sup		Appelez-nous	-
1181	10479103		Tunnel, Mt Kpr		Appelez-nous	-
1321	W11384469		Switch   (Replaces: C3680304)			Immediately	$ 39.09
1331	40A15		Bulb, Light (40 Watt)   (Replaces: A0282803)			Immediately	$ 1.98
1341	C8730103		Housing-light		Appelez-nous	-
1351	D7714406		Socket, Angle		Appelez-nous	-
1361	B5733302		Clip, Ground		Appelez-nous	-
1371	10678401		Shield, Frz Light		Appelez-nous	-
1391	10433611		Plate, Center Tap		Appelez-nous	-
1401	B0523584		Insulation Per Ft.		Appelez-nous	-
1431	WP67001130		Plug, Top Hinge Button (wht)   (Replaces: M0310729)			Immediately	$ 5.98
1451	M0311602		Plug, Button (white)		Appelez-nous	-
1511	10481001		Roller, Pan				$ 10.99
1571	Y10440002		Shelf, Freezer Wire		Appelez-nous	-
1641	M0253916		Screw		Appelez-nous	-
1671	10250502		Rack, Freezer		Appelez-nous	-
1691	M0580007		Grommet, Screw		Appelez-nous	-
1801	10779601		Insul. Air Duct		Appelez-nous	-
3621	M0211520		Screw - Sm		Appelez-nous	-
3661	10565701		Insert, Mk Control		Appelez-nous	-
3701	67006692		Screw, Shoulder   (Replaces: M0238105)				$ 10.79
4051	10852401		Gasket, Mt Kpr Duct		Appelez-nous	-
6501	10772301		Insulation		Appelez-nous	-
8051	10992302		Rack, Utility		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
