Diagram for 09 - Fz Door Assy
09 - Fz Door Assy

Diagram for 10 - Ref Door Assy
10 - Ref Door Assy


New Model Search:


1-855-472-4566
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 10925602L Assy Frz. Dr Fm Appelez-nous -
2 B0523593 Insulation, Batt Frz. Dr. Appelez-nous -
3 10419004 Retainer, Ref Door Appelez-nous -
4 10903104 Handle, L Frz Appelez-nous -
5 10456804 Gasket,fz Dr(white) Appelez-nous -
6 10917301 Clip-door Cap Appelez-nous -
7 10447501 Liner, Frz Door Appelez-nous -
8 10913502 Cap-l Dr Handle Appelez-nous -
9 10451301 Shim, Top Hinge Special Order $ 1.08

9 10451302 Shim, Top Hinge Special Order $ 0.63

9 10451303 Shim, Top Hinge Special Order $ 1.08

10 10185105 Hinge, Top Appelez-nous -
11 10961001 Bushing, Door (wht) Appelez-nous -
12 M0310730 Plug Button (almond) Appelez-nous -
13 10686402 Plug, Button Appelez-nous -
14 10562203 Shim, Center Hinge Appelez-nous -
14 10562201 Shim, Center Hinge Appelez-nous -
14 10562202 Shim, Center Hinge Appelez-nous -
15 10433503 Hinge-center Appelez-nous -
16 M0222442 Screw-sm Shldr Appelez-nous -
17 R9800670 Kit, Screw   (Replaces: M0226331) Special Order $ 10.58

18 M0219730 Screw Special Order $ 7.65

19 10447102 Stop, Door Appelez-nous -
20 WPM0274057 Shim, Non Metal (wht)   (Replaces: M0274057) In-Stock Immediately $ 8.40

21 WP67006744 Pin, Hinge (ctr)   (Replaces: 10351001) Special Order $ 8.68

22 WPW10348409 Screw, Mounting   (Replaces: M0211533) In-Stock Immediately $ 8.20

23 10444803 Cover, Hinge (almond) Appelez-nous -
24 10183008 Shelf, Ref Door Appelez-nous -
25 10907404 Cap-l Fz Hndl Appelez-nous -
26 M0274058 Shim, Non Metal (wht) Special Order $ 5.83

27 10202001 Clip, Retainer Appelez-nous -
28 10183971 Trim Door Shelf Appelez-nous -
29 10183929 Trim-door Shelf Appelez-nous -
30 M0310338 Plug Button Almond Appelez-nous -
31 W11573362 Screw, T. F.   (Replaces: M0226233) Special Order $ 14.72


    View Diagram in Separate Window     Print Icon   Print Part List

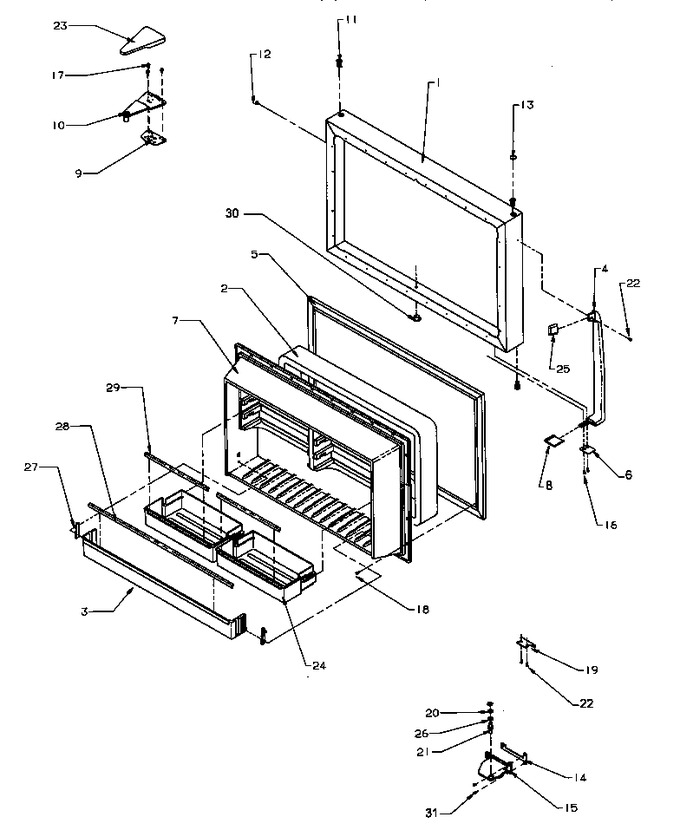

Diagram for TR22S4L (BOM: P1196201W L)
