SELECT A DIAGRAM

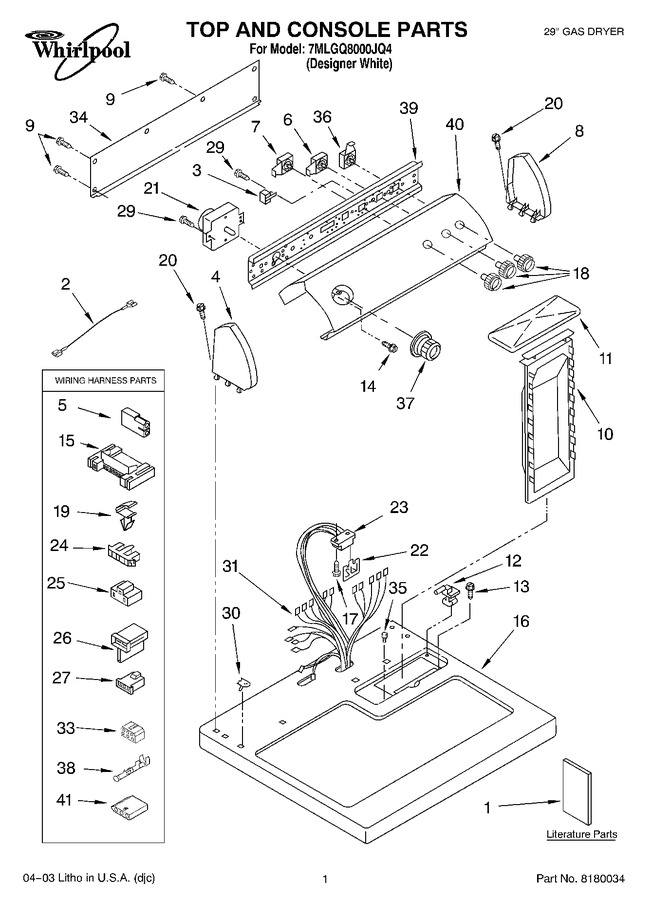

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - 8318272 Burner Assembly


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT8543095		Use & Care Guide		Appelez-nous	-
1	LIT677818		Literature Parts (dryer)		Appelez-nous	-
1	N/A		Following May Be Purchased Do-it-yourself Repair Manuals		Appelez-nous	-
1	LIT8533206		Literature Parts (wiring Diagram)		Appelez-nous	-
1	LIT3978910		Instructions, Installation		Appelez-nous	-
2	3401684		Wire, Jumper (black)				$ 34.57
3	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 127.67
4	8271365		Cap, End (l.h.)		Appelez-nous	-
5	717252		Plug, 2-way Terminal		Appelez-nous	-
6	3405154		Switch, Finish Guard				$ 152.88
7	8316736		Switch, Temperature		Appelez-nous	-
8	8271359		Cap, End (r.h.)		Appelez-nous	-
9	WP693995		Screw, Hex Washer Head   (Replaces: 693995)			Immediately	$ 7.19
10	WP349639		Handle & Lint Screen Assembly   (Replaces: 349639)			Immediately	$ 37.21
11	8283378		Cover, Lint Screen				$ 44.80
12	WPW10044470		Hinge, R.h.   (Replaces: 3978605)				$ 7.72
12	WPW10044480		Hinge, L.h.   (Replaces: 3978606)				$ 7.72
13	W11693756		Screw, 8-18 X 5/8   (Replaces: 688983)			Immediately	$ 14.06
14	3400859		Screw, Grounding				$ 13.22
15	3395683		Connector (motor)			Immediately	$ 51.86
16	8271390		Top		Appelez-nous	-
17	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.85
18	WP3957799		Knob, Control (3)   (Replaces: 8271339)				$ 52.44
19	WP3394427		Clip, Harness   (Replaces: 3394427)				$ 7.79
20	WP388326		Screw, Console   (Replaces: 388326)				$ 8.11
21	WP3406725		Timer Assembly 60 Hz.   (Replaces: 3406725)				$ 368.58
22	WPW10476828		Control, Electronic   (Replaces: 3390537)			Immediately	$ 314.22
23	3391885		Connector, Edge				$ 86.40
24	3397269		Connector, Timer				$ 25.55
25	3401144		Connector, (pts Relay)				$ 12.20
26	WP3403499		Connector, 2-position Gas Valve   (Replaces: 3403499)				$ 5.73
27	WP3403498		Connector, 3-position (gas Valve)   (Replaces: 3403498)				$ 6.95
29	WPW10139210		Screw, 8-18 X 5/16   (Replaces: 3390646)				$ 7.50
30	WP357213		Nut, Push-in (2)   (Replaces: 357213)				$ 7.39
31	8299890		Harness, Wiring		Appelez-nous	-
33	3347243		Connector 6-circuit		Appelez-nous	-
34	W10103406		Panel, Rear Console   (Replaces: 8274261)				$ 128.87
35	297535		Bumper, Lint Lid		Appelez-nous	-
36	WP3398095		Switch, Push-to-start   (Replaces: 3398095)			Immediately	$ 92.88
37	WP3957754		Timer Knob Assembly   (Replaces: 8312687)				$ 59.87
38	WP94614		Terminal (female)   (Replaces: 94614)				$ 7.67
39	8271418		Bracket, Control				$ 57.15
40	3977826		Panel, Control		Appelez-nous	-
41	3936144		Connector				$ 20.21

    View Diagram in Separate Window       Print Part List
