Diagram for 09 - Fz Door
09 - Fz Door

Diagram for 10 - Ref Door
10 - Ref Door


New Model Search:


1-855-472-4566
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 10928403W Assy Frz Dr Fm Appelez-nous -
2 B0523593 Insulation, Batt Frz. Dr. Appelez-nous -
3 10609302 Retainer, Ref Door Appelez-nous -
4 R0179261 Kit, W Fz Handle Appelez-nous -
5 10456806 Gasket,fz Dr(white) Appelez-nous -
6 12044401 Clip-door Cap Appelez-nous -
7 10609201 Liner, Frz Door Appelez-nous -
8 10913501 Cap, W Dr Handle Appelez-nous -
9 10451301 Shim, Top Hinge Special Order $ 1.08

9 10451302 Shim, Top Hinge Special Order $ 0.63

9 10451303 Shim, Top Hinge Special Order $ 1.08

10 10185105 Hinge, Top Appelez-nous -
11 10961001 Bushing, Door (wht) Appelez-nous -
12 WP67001130 Plug, Top Hinge Button (wht)   (Replaces: M0310729) In-Stock Immediately $ 5.98

13 10686401 Plug Button Appelez-nous -
14 10562202 Shim, Center Hinge Appelez-nous -
14 10562203 Shim, Center Hinge Appelez-nous -
14 10562201 Shim, Center Hinge Appelez-nous -
15 10433512 Hinge-center Special Order $ 88.17

16 M0221744 Screw-sm Shldr Appelez-nous -
17 R9800670 Kit, Screw   (Replaces: M0226331) Special Order $ 10.58

18 M0219730 Screw Special Order $ 7.65

19 10447102 Stop, Door Appelez-nous -
20 WPM0274057 Shim, Non Metal (wht)   (Replaces: M0274057) In-Stock Immediately $ 8.40

21 10351002 Pin, Hinge (ctr) Appelez-nous -
22 WPW10348409 Screw, Mounting   (Replaces: M0211533) In-Stock Immediately $ 8.20

23 10444805 Cover, Hinge (white) Appelez-nous -
24 10420003 Shelf, Ref Door Appelez-nous -
25 10907402 Cap, W Dr Handle Appelez-nous -
26 10252903 Filter, Bushing Appelez-nous -
27 10202001 Clip, Retainer Appelez-nous -
28 10183984 Trim-door Shelf Appelez-nous -
29 10183983 Trim-door Shelf Appelez-nous -
30 M0310308 Plug, Button (wht) Appelez-nous -
31 W11573362 Screw, T. F.   (Replaces: M0226233) Special Order $ 14.72

32 10992104 Insert, Nameplate Appelez-nous -
33 12028501 Closure, Door (wht) Special Order $ 6.67

34 10926601 Nameplate, Handle Appelez-nous -
35 12028601 Bushing, Door (wht) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

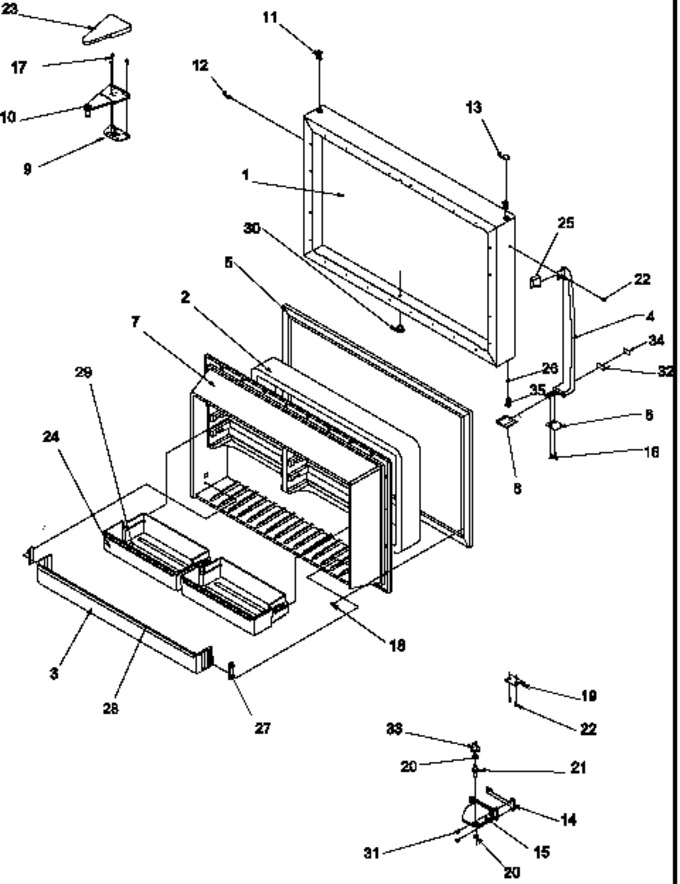

Diagram for TR25S5W (BOM: P1196402W W)
