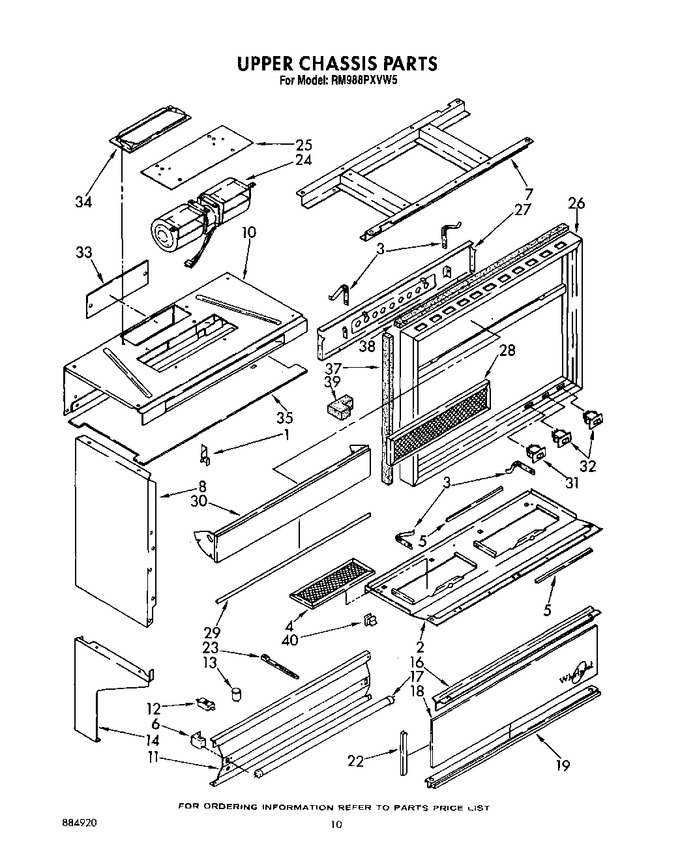

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 3147486 Bracket, Stop R.h. Appelez-nous -
1 3147487 Bracket, Stop L.h. Appelez-nous -
2 3147593 Seal, Foam Appelez-nous -
2 314216 Cover, Bottom Appelez-nous -
2 312783 Bumper (4) Appelez-nous -
3 3147525 Clip (4) Appelez-nous -
4 3147608 Filter, Mesh (2) Appelez-nous -
5 3147756 Edge, Protector (2) Appelez-nous -
6 WP681414 Screw (4)   (Replaces: 343641) In-Stock Immediately $ 8.47

6 WP313808 Screw,   (Replaces: 313808) Special Order $ 8.30

6 3147245 Socket, Assembly R.h. Appelez-nous -
6 3147244 Socket, Assembly L.h. Appelez-nous -
7 WP488729 Screw (2)   (Replaces: 313638) In-Stock Immediately $ 8.28

7 330677 Support, Frame Appelez-nous -
7 WP681414 Screw (2)   (Replaces: 343641) In-Stock Immediately $ 8.47

8 3171916 Side Panel L.h. (platinum) Appelez-nous -
8 3171912 Side Panel, L.h. (almond) Appelez-nous -
8 3171910 Side Panel, L.h. (white) Appelez-nous -
8 WP488729 Side Panel L.h. (screw (3))   (Replaces: 313638) In-Stock Immediately $ 8.28

8 3147592 Side Panel, L.h. (seal, Foam (2)) Appelez-nous -
8 3147591 Side Panel L.h. (seal, Foam (4)) Appelez-nous -
8 3171917 Side Panel L.h. (platinum) Appelez-nous -
8 3171915 Side Panel L.h. (toast) Appelez-nous -
8 3171913 Side Panel, L.h. (almond) Appelez-nous -
8 3171911 Side Panel, L.h. (white) Appelez-nous -
8 WP681414 Side Panel L.h. (screw (grnd.) Side Panel, R.h.)   (Replaces: 343641) In-Stock Immediately $ 8.47

8 3171914 Side Panel L.h. (toast) Appelez-nous -
10 3149068 Top Panel Appelez-nous -
11 3147589 Panel, Backguard Appelez-nous -
12 3147224 Socket, Flourscent Appelez-nous -
12 WP965173 Screw (2)   (Replaces: 246132) In-Stock Immediately $ 11.87

13 387695 Starter, Lamp Special Order $ 8.20

14 WP681414 (end Trim L.h.) (screw (6))   (Replaces: 343641) In-Stock Immediately $ 8.47

14 314199 End Trim R.h. (almond) Appelez-nous -
14 314198 End Trim R.h. (almond) Appelez-nous -
14 314206 End Trim L.h. (platinum) Appelez-nous -
14 314205 End Trim L.h. (toast) Appelez-nous -
14 314204 (end Trim L.h.) (almond) Appelez-nous -
14 314203 (end Trim L.h.) (white) Appelez-nous -
14 314201 End Trim R.h. (platinum) Appelez-nous -
14 314200 End Trim R.h. (toast) Appelez-nous -
16 313320 Trim, Glass (top) Appelez-nous -
16 WP488627 Screw (3)   (Replaces: 338156) Special Order $ 8.11

17 WP95292 Lamp, Fluorescent   (Replaces: 95292) In-Stock Immediately $ 134.94

18 313322 Panel, Glass Appelez-nous -
19 313321 Trim, Glass (bottom) Appelez-nous -
19 WP90767 Screw, 8a X 3/8 (2)   (Replaces: 90767) In-Stock Immediately $ 8.25

22 313319 Trim, End (glass) (2) Appelez-nous -
23 WPW10339879 Cable Tie (2)   (Replaces: 309330) Special Order $ 8.30

24 3147817 Blower, Exhaust Appelez-nous -
25 3147866 Nut (6) Appelez-nous -
25 WP488729 Screw (6)   (Replaces: 313638) In-Stock Immediately $ 8.28

25 3147798 Cover, Access Appelez-nous -
26 3149557 Frame Appelez-nous -
26 309133 Screw, 8-32 X 1/2 (4) Appelez-nous -
27 3147764 Spring, Vent Door (2) Appelez-nous -
27 3147712 Panel, Vent Door Appelez-nous -
27 309133 Screw (2) Appelez-nous -
27 3147724 Screw, Schoulder (2) Appelez-nous -
27 3147755 Rivet, Plastic (2) Appelez-nous -
27 3147858 Rivet (2) Appelez-nous -
28 3147525 Clip (2) Appelez-nous -
28 3147609 Filter, Aluminum Appelez-nous -
29 3149007 Handle, Vent Door Appelez-nous -
29 WP313808 Screw, 6-32 X 9/32 (3)   (Replaces: 313808) Special Order $ 8.30

30 3170269 Door, Vent Appelez-nous -
31 WP3147265 Switch, Rocker (exhaust)   (Replaces: 3147265) Special Order $ 148.88

32 302251 Screw (6) Appelez-nous -
32 WP4314961 Switch, Rocker (2)   (Replaces: 314134) Special Order $ 93.95

33 3147726 Cover, Exhaust Appelez-nous -
34 3147843 Damper Appelez-nous -
35 3147590 Seal, Foam Appelez-nous -
35 WP488729 Screw (4)   (Replaces: 313638) In-Stock Immediately $ 8.28

35 3147250 Seperator, Air Appelez-nous -
37 3147595 Seal, Foam (2) Appelez-nous -
38 3147596 Seal, Foam Appelez-nous -
39 3149016 Seal, Foam (4) Appelez-nous -
40 311311 Clip, Wire Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List
