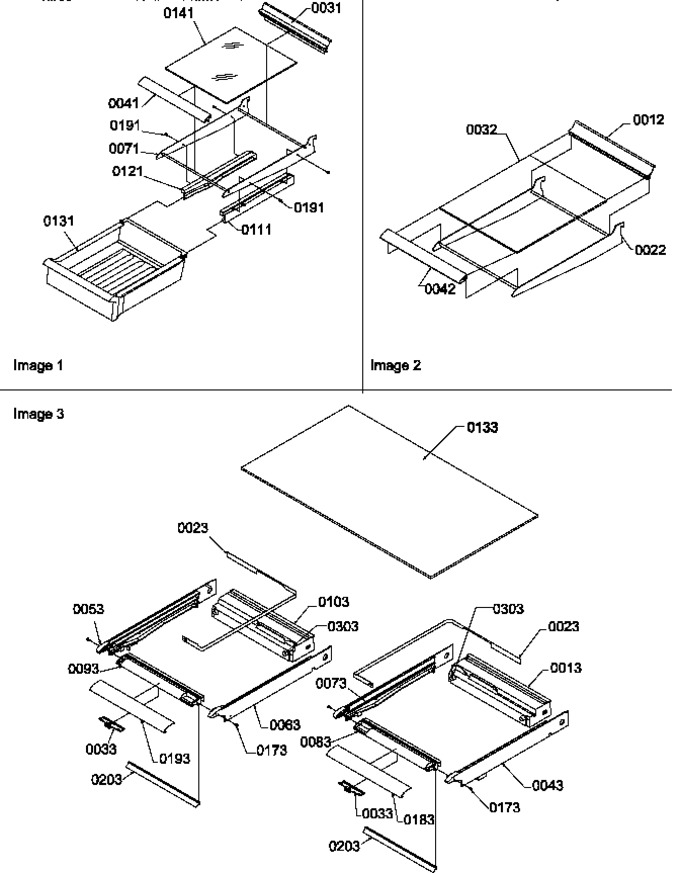

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
12	10946003		Extr, Rear Shelf		Appelez-nous	-
12	10946002		Extr, Rear Shelf		Appelez-nous	-
13	10433805		Rail, Crisper Back		Appelez-nous	-
22	10460104		Frame, Glass Shelf (full)		Appelez-nous	-
22	10460101		Shelf, Glass Frame		Appelez-nous	-
31	10946002		Extr, Rear Shelf		Appelez-nous	-
32	10370098		Glass, Full Shelf		Appelez-nous	-
32	10370097		Glass, Split Shelf		Appelez-nous	-
41	10459923		Extr-front Shelf		Appelez-nous	-
42	10459922		Extr-front Shelf		Appelez-nous	-
42	10459923		Extr-front Shelf		Appelez-nous	-
43	10432701		Rail, Side Crisper		Appelez-nous	-
53	10432702		Rail, Side Crisper		Appelez-nous	-
63	10432803		Rail, Ctr. Crisper		Appelez-nous	-
71	10460106		Shelf, Glass Frame		Appelez-nous	-
73	10432804		Rail, Ctr. Crisper		Appelez-nous	-
83	10687701		Rail, Crisper Fr0nt(r)		Appelez-nous	-
93	10687702		Rail, Crisper Front(l)		Appelez-nous	-
103	10435605		Rail, Crisper Back		Appelez-nous	-
111	12027201		Glide, R Deli				$ 64.15
121	12027101		Glide, L Deli		Appelez-nous	-
131	10417117		Pan, Meat Keeper		Appelez-nous	-
133	10370016		Glass, Shelf (18)		Appelez-nous	-
141	10370097		Glass, Split Shelf		Appelez-nous	-
173	67006692		Screw, Hi Lo   (Replaces: M0237932)				$ 10.79
183	10688053		Extr-l Crisp Front		Appelez-nous	-
191	W11233072		Screw   (Replaces: M0214931)			Immediately	$ 14.72
303	M0051601		Bumper-pad		Appelez-nous	-
