Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 3149254 Wiring Harness Surface Unit Appelez-nous -
2 3149579 Wiring Harness Main Appelez-nous -
2 16515 Clip, Harness   (Replaces: 313438) Special Order $ 20.53

3 3147556 Wiring Harness Vent Motor Appelez-nous -
5 3147567 Wiring Harness Rocker Switch Appelez-nous -
6 3147917 Wiring Harness (select/therm) Appelez-nous -
8 312713 Screw Appelez-nous -
8 3147832 Adaptor, Terminal Appelez-nous -
11 309406 Connector Appelez-nous -
12 309408 Connector Appelez-nous -
13 3147362 Connector Appelez-nous -
14 310960 Connector Appelez-nous -
15 309405 Connector Appelez-nous -
19 3147361 Connector Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

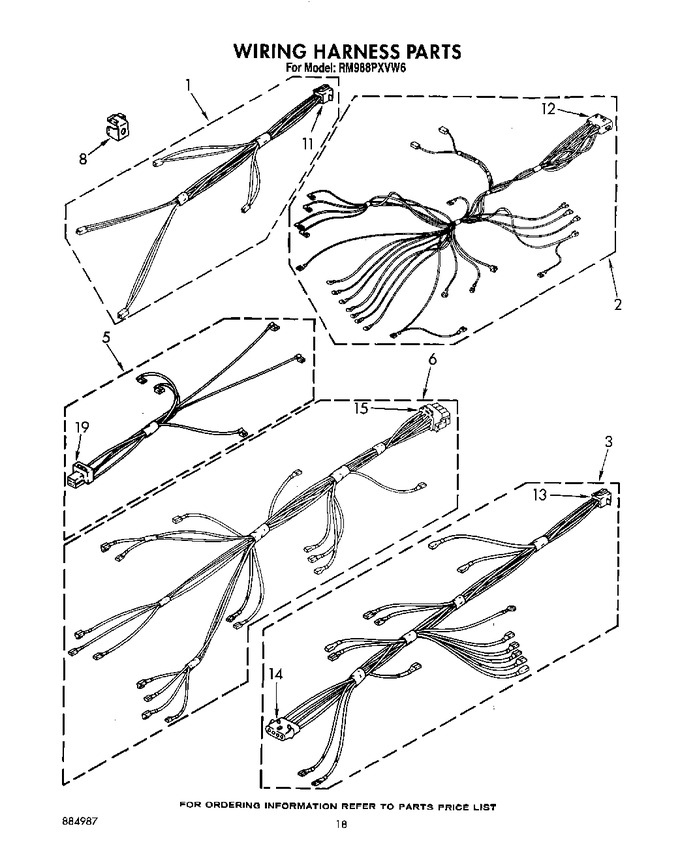

Diagram for RM988PXVW6
