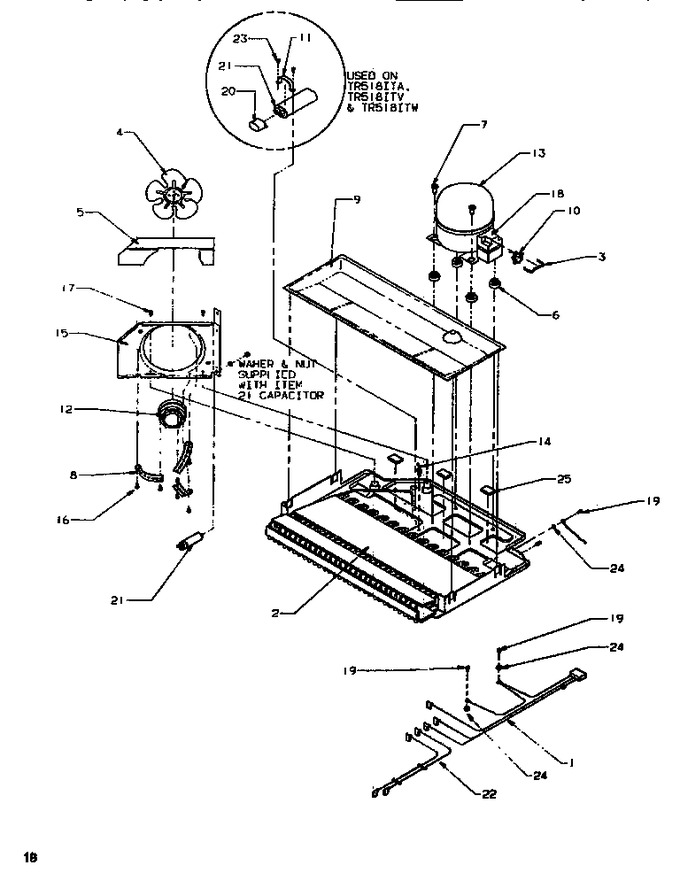

05 - Compressor Compartment


06 - Control Assy


07 - Divider Block


08 - Evap Area


09 - Fz Door


10 - Ref Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12014601		Harness, Mc		Appelez-nous	-
2	10481216		Assy,cond/pan-e Ct		Appelez-nous	-
3	10899501		Clamp, Term. Cover		Appelez-nous	-
4	B5742602		Blade, Fan		Appelez-nous	-
5	10442702		Gasket, Cond. Fan		Appelez-nous	-
6	WPW10169124		Grommet, Compressor   (Replaces: 10835901)				$ 7.55
7	M0221523		Screw, Shldr		Appelez-nous	-
8	10582501		Bracket, Cond. Motor		Appelez-nous	-
9	10427401		Pan, Drain		Appelez-nous	-
10	10899601		Overload/relay		Appelez-nous	-
11	A4055402		Strap-capacitor K		Appelez-nous	-
12	10670402		Motor, Condenser		Appelez-nous	-
13	10929001		Compressor (220/230 Vac 50hz)		Appelez-nous	-
14	B5667304		Wire Clip		Appelez-nous	-
15	10426904		Shroud, Cond. Fan (e Coat)		Appelez-nous	-
16	M0223803		Screw		Appelez-nous	-
17	WP90767		Screw, Sm   (Replaces: M0224416)			Immediately	$ 8.25
18	10899701		Cover, Terminal		Appelez-nous	-
19	WP489399		Screw, Se   (Replaces: M0232929)				$ 7.30
20	10421601		Cap, Capacitor		Appelez-nous	-
21	10421701		Capacitor		Appelez-nous	-
22	12007901		Harness-capacitor		Appelez-nous	-
23	WP90767		Screw   (Replaces: M0216716)			Immediately	$ 8.25
24	M0272803		Lock Washer		Appelez-nous	-
25	B5759644		Gasket		Appelez-nous	-
