SELECT A DIAGRAM

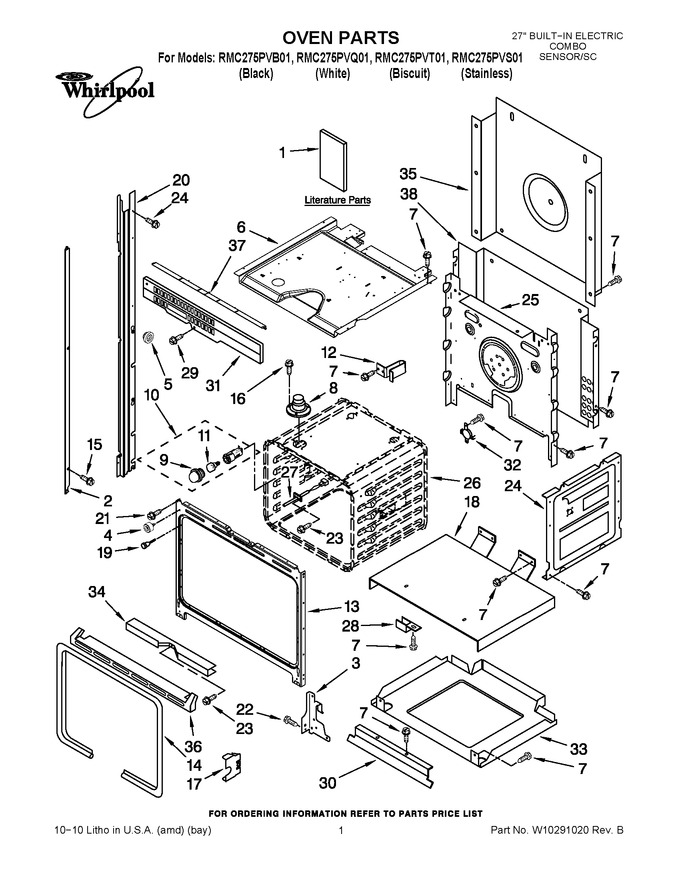

01 - Oven Parts


02 - Control Panel Parts


03 - Oven Door Parts


04 - Latch Parts


05 - Internal Oven Parts


06 - Cabinet And Stirrer Parts


07 - Microwave Compartment Parts


08 - Microwave Door Parts


09 - Top Venting Parts


10 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10065852		Safer Cooking Tips (french)		Appelez-nous	-
1	W10192051		Installation Instructions		Appelez-nous	-
1	W10075750		Instruction, Installer		Appelez-nous	-
1	4457288		Insert, Bottom Trim Installation		Appelez-nous	-
1	W10192044		Use & Care Guide (microwave)		Appelez-nous	-
1	W10192043		Use & Care Guide (oven)		Appelez-nous	-
1	8304173		Tech Sheet (oven)		Appelez-nous	-
1	9762761		Safer Cooking Tips (english)		Appelez-nous	-
2	W10207442		Trim, Side Right (black)				$ 58.84
2	W10207443		Trim, Side Left (black)				$ 69.99
2	W10207445		Trim, Side Left (white)		Appelez-nous	-
2	W10207447		Trim, Side Left (biscuit)		Appelez-nous	-
2	W10145007		Trim, Side Left (stainless)				$ 78.50
2	W10207444		Trim, Side Right (white)		Appelez-nous	-
2	W10145006		Trim, Side Right (stainless)				$ 69.10
2	W10207446		Trim, Side Right (biscuit)		Appelez-nous	-
3	WP4455606		Hinge Receiver (right)   (Replaces: 4455606)			Immediately	$ 131.74
3	WP4455605		Hinge Receiver (left)   (Replaces: 4455605)			Immediately	$ 127.70
4	W10105790		Bumper, Door				$ 7.41
5	WP4448444		Grommet, Mounting Rail   (Replaces: 4448444)				$ 7.85
6	4455864		Top, Chassis				$ 22.85
7	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
8	W10861715		Tube, Vent   (Replaces: 4452158)				$ 122.46
9	W10067870		Lens, Light				$ 65.50
10	WPW10734065		Assembly, Oven Light   (Replaces: W10009930)				$ 101.46
11	WP4173175		Bulb, Light   (Replaces: 4452166)			Immediately	$ 53.62
12	8300791		Bracket, Combo		Appelez-nous	-
13	W10130370		Frame, Front				$ 79.39
14	WP4455381		Gasket, Door   (Replaces: 4455381)				$ 185.61
15	WP3400832		Screw   (Replaces: 3400832)			Immediately	$ 8.18
16	W11233072		Screw   (Replaces: 3196176)			Immediately	$ 14.72
17	4452152		Bracket, Mounting				$ 35.18
18	4451477		Support, Insulation		Appelez-nous	-
19	4448520		Bumper, Door				$ 22.25
20	8303117		Rail, Side (right)		Appelez-nous	-
20	8303118		Rail, Side (right)		Appelez-nous	-
21	WP4449040		Screw   (Replaces: 4449040)				$ 6.78
22	WP4449743		Screw   (Replaces: 4449743)				$ 7.55
23	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
24	W10782197		Side, Chassis   (Replaces: 4455641)				$ 150.69
25	W10161109		Back, Chassis		Appelez-nous	-
26	N/P		Liner, Oven (not Serviceable)		Appelez-nous	-
27	WPW10131825		Sensor   (Replaces: W10131825)			Immediately	$ 95.83
28	4449845		Bracket-support		Appelez-nous	-
29	WP4450038		Screw   (Replaces: 4450038)				$ 8.30
30	9760676		Deflector, Vent		Appelez-nous	-
31	8304106		Vent, Center				$ 87.78
32	WP9759243		Thermostat   (Replaces: 9759243)			Immediately	$ 55.44
33	4455529		Base, Chassis		Appelez-nous	-
34	WP4448933		Retainer, Gasket   (Replaces: 4448933)				$ 9.30
35	WP4451747		Cover, Back   (Replaces: 4451747)				$ 150.07
36	W10207687		Trim, Vent Bottom (white)				$ 66.47
36	W10151130		Trim, Vent Bottom (stainless)		Appelez-nous	-
36	W10207688		Trim, Vent Bottom (biscuit)		Appelez-nous	-
36	W10207684		Trim, Vent Bottom (black)				$ 65.77
37	8303503		Vent, Control		Appelez-nous	-
38	4451755		Chassis, Back		Appelez-nous	-
NI	4449315		Insulation, Wrap				$ 64.81
NI	4450364		Insulation, Back		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
