01 - Cabinet Back
02 - Cabinet Bottom & Back
03 - Cabinet Shelving
04 - Compressor
05 - Divider & Controls
06 - Evap Area
07 - Fz Door
08 - Ref Door
SELECT A DIAGRAM
New Model Search:

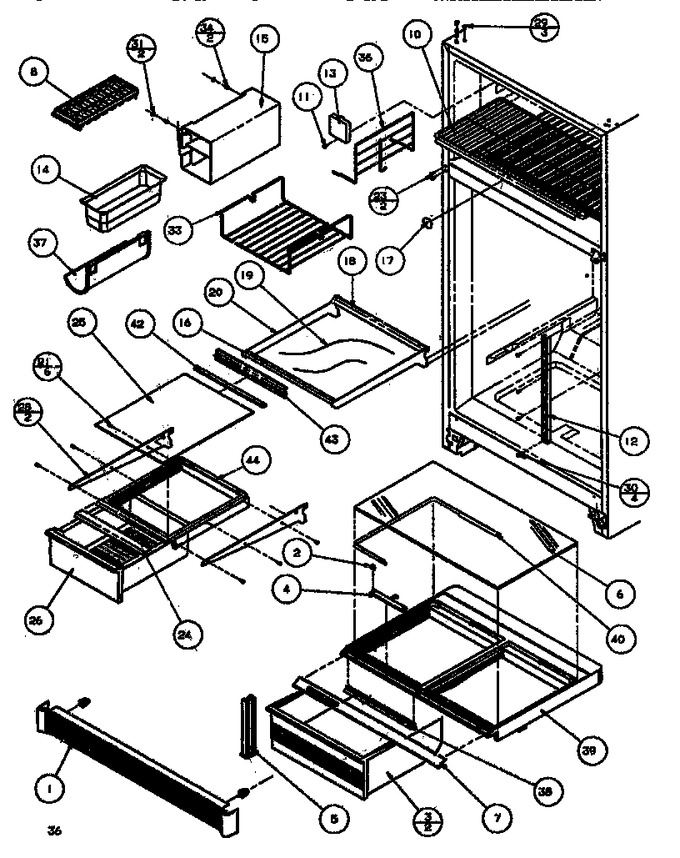

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | D7520514 | Grille-toe L |
|
- | |||||
| 1 | D7520512 | Grille-toe K |
|
- | |||||
| 2 | 10038403 | Knob, Crisper Control |
|
- | |||||
| 3 | D7581034 | Pan-crisper |
|
- | |||||
| 4 | YD7860605 | Slide, Crisper |
|
- | |||||
| 5 | D7602203 | Crisper Support Post |
|
- | |||||
| 6 | 10036016 | Glass Crisper Top Gg |
|
- | |||||
| 7 | D7616656 | Trim Crisper |
|
- | |||||
| 8 | WP841180A | Tray, Ice (Replaces: D7725401) |
|
Immediately | $ 47.84 | ||||
| 10 | D7580706 | Shelf, Frz |
|
- | |||||
| 11 | 67006425 | Screw, Sm (Replaces: M0209616) |
|
Immediately | $ 7.30 | ||||
| 12 | D7599002 | Ladder, Center |
|
- | |||||
| 13 | D7874402 | Cover-fl Tb/plug |
|
- | |||||
| 14 | D7620025 | Bin-ice |
|
- | |||||
| 15 | D7620110 | Rack, Ice |
|
- | |||||
| 16 | C8913535 | Trim Frz Door |
|
- | |||||
| 17 | M0310305 | Plug, Button (wht) |
|
- | |||||
| 18 | C8913610 | Trim, Glass Shelf |
|
- | |||||
| 19 | 10036018 | Glass Shelf |
|
- | |||||
| 20 | D7871016 | Frame, Cant. |
|
- | |||||
| 21 | M0230028 | Screw, No.8-32 X 5/16 Pph (blk) |
|
- | |||||
| 23 | R9800670 | Kit, Screw (Replaces: M0257244) |
|
$ 10.58 | |||||
| 24 | C8913535 | Trim Frz Door |
|
- | |||||
| 25 | 10036017 | Glass M.k. Shelf |
|
- | |||||
| 26 | D7710517 | Drawer-deli |
|
- | |||||
| 28 | D7862972 | Side Rail |
|
- | |||||
| 28 | D7862973 | Side Rail |
|
- | |||||
| 29 | M0310716 | Plug |
|
- | |||||
| 29 | WP67001130 | Plug (Replaces: M0310709) |
|
Immediately | $ 8.21 | ||||
| 30 | M0230923 | Screw |
|
- | |||||
| 31 | M0270508 | Washer |
|
- | |||||
| 33 | 10250501 | Rack-freezer |
|
- | |||||
| 34 | M0219559 | Screw |
|
- | |||||
| 36 | D7806002 | Divider, Wire |
|
- | |||||
| 37 | D7547614 | Rack, Bottle |
|
- | |||||
| 38 | D7718402 | Seal Crisper |
|
- | |||||
| 39 | D7856505 | Frame Crisper |
|
- | |||||
| 40 | D7859604 | Band M.k. Control |
|
- | |||||
| 42 | 10043101 | Ext. Rear Glass |
|
- | |||||
| 43 | C8990406 | Trim M.k Top Rear |
|
- | |||||
| 44 | D7853305 | Frame Meatkeeper |
|
- | |||||
| NI | R0179203 | Crisper Top Assy |
|
- | |||||
| NI | 10144009 | Glass Shelf Assembly |
|
- | |||||
| NI | Y00000000 | See Note Add-on Ice Maker -- (available From Sales) |
|
- | |||||
| NI | 10144010 | Glass Shelf Assembly |
|
- |
