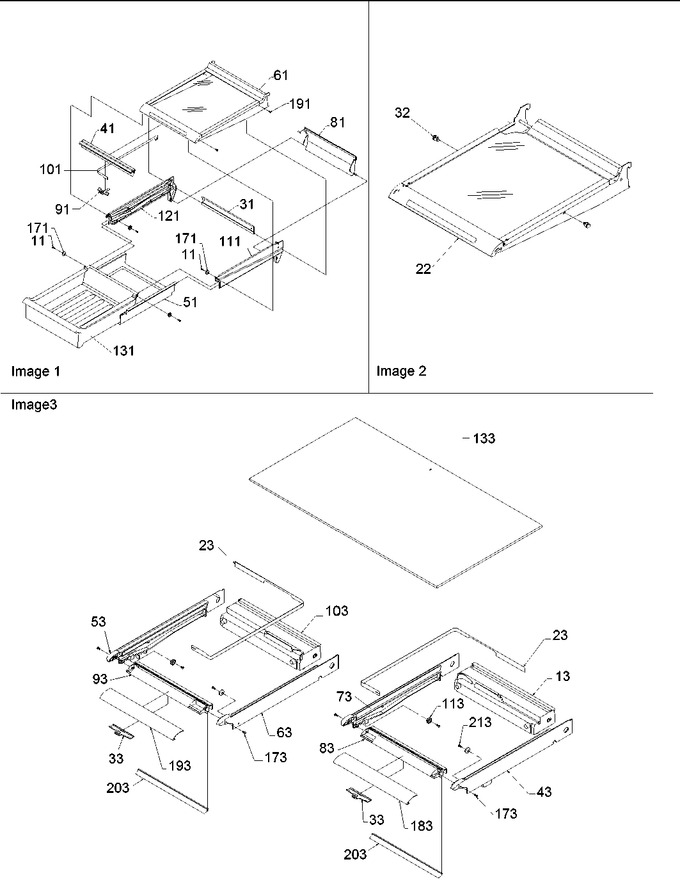

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 11 | 67006692 | Screw, Shoulder (Replaces: M0238105) |
|
$ 9.71 | |||||
| 13 | 10433804 | Rail, Crisper Back |
|
- | |||||
| 22 | 10895811 | Assy, Shelf Hlf Gls |
|
- | |||||
| 23 | 10467804 | Band, Crisper Cont. |
|
- | |||||
| 31 | 10920203 | Extr, Mk Rear |
|
- | |||||
| 32 | 10875101 | Stop, Shelf |
|
- | |||||
| 33 | 10797501 | Slide, Crisper |
|
- | |||||
| 41 | 10920303 | Extrusion, Mk Frt |
|
- | |||||
| 43 | 10432703 | Rail, Side Crisper |
|
- | |||||
| 51 | 10437305 | Sleeve, Mk |
|
- | |||||
| 53 | 10432704 | Rail, Side Crisper |
|
- | |||||
| 61 | 10895708 | Shelf-sta |
|
- | |||||
| 63 | 10432805 | Rail, Ctr. Crisper |
|
$ 21.50 | |||||
| 73 | 10432806 | Rail, Ctr. Crisper |
|
$ 23.67 | |||||
| 81 | 10445701 | Scoop, Air V |
|
- | |||||
| 83 | 10687801 | Rail, R. Crisper Frt |
|
- | |||||
| 91 | 10920401 | Slide, Mk Control |
|
- | |||||
| 93 | 10687802 | Rail, L. Crisper Frt |
|
- | |||||
| 101 | 10920101 | Band, Mk Control |
|
- | |||||
| 103 | 10435604 | Rail, Crisper Back |
|
- | |||||
| 111 | 10880201 | Glide, Mk R |
|
- | |||||
| 113 | 10481001 | Roller, Pan |
|
$ 10.99 | |||||
| 121 | 10897101 | Glide, Mk L |
|
- | |||||
| 131 | 10417013 | Pan,meatkeeper |
|
- | |||||
| 133 | 10370012 | Shelf, Glass |
|
$ 86.24 | |||||
| 171 | 10481001 | Roller, Pan |
|
$ 10.99 | |||||
| 173 | 67006692 | Screw, Hi Lo (Replaces: M0237932) |
|
$ 9.71 | |||||
| 183 | 10688055 | Extr, R Crisp Front |
|
- | |||||
| 191 | WPW10348409 | Screw, Mounting (Replaces: M0211533) |
|
Immediately | $ 7.38 | ||||
| 193 | 10688054 | Extr, L Crisp Front |
|
- | |||||
| 203 | 10530204 | Seal, Crisper |
|
$ 39.10 | |||||
| 213 | 67006692 | Screw, Shoulder (Replaces: M0238105) |
|
$ 9.71 |
