Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 10428301 Block, Evap. L. Appelez-nous -
2 10428202 Block, Evap. R Appelez-nous -
3 WP2264462 Grommet   (Replaces: A1017202) In-Stock Immediately $ 46.17

4 10492801 Brkt, Up Evap. Fan Special Order $ 5.27

5 10449503 Motor, Evap Fan Special Order $ 92.65

6 W10116797 Assy, Fan-evap   (Replaces: 10855401) In-Stock Immediately $ 8.56

7 10492701 Brkt, Lwr. Evap. Fan Special Order $ 5.27

8 WP489464 Screw   (Replaces: M0211217) In-Stock Immediately $ 8.38

9 A3189348 Gasket, Foam Appelez-nous -
10 10432408 Cover, Evaporator Appelez-nous -
11 A3030356 Gasket Appelez-nous -
12 12028301 Thermostat, Defrost Appelez-nous -
13 10785902 Heater, Evap 230vac 50hz (tm O Appelez-nous -
14 10584701 Insert, Frz. Ladder Appelez-nous -
15 W11673433 Clip, Evap Heater   (Replaces: 10428101) Special Order $ 148.18

16 R0170064 Ass`y, Low Side Appelez-nous -
17 67006425 Screw, Sm   (Replaces: M0209616) In-Stock Immediately $ 7.30

18 67006425 Screw-sm No.8-1/2lg   (Replaces: M0211017) In-Stock Immediately $ 7.30

19 WPW10339879 Tie   (Replaces: M0321202) Special Order $ 8.30

20 10422304 Shroud, Evap. Fan Appelez-nous -
21 WP90767 Screw, Sm   (Replaces: M0224416) In-Stock Immediately $ 8.25

22 10440710 Cover, Evaporator Appelez-nous -
23 10427712 Shield, Evap. Appelez-nous -
24 10442301 Clip, Evaporator Appelez-nous -
25 M0232330 Screw, Spextite Appelez-nous -
26 10586601 Clip, Ht Transfer Appelez-nous -
27 M0321209 Tie-elect. Appelez-nous -
28 10789102 Thermostat Appelez-nous -
29 A3030354 Gasket Appelez-nous -
30 M0272803 Lock Washer Appelez-nous -
31 10439305 Ladder, Center Appelez-nous -
32 10439701 Ladder, Ctr. Support Appelez-nous -
33 10439402 Ladder, L. Side Evap. Appelez-nous -
33 10439401 Ladder R. Side Evap Appelez-nous -
34 10562401 Cap Frz Ladder Appelez-nous -
35 M0230924 Screw Appelez-nous -
36 M0230421 Screw Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

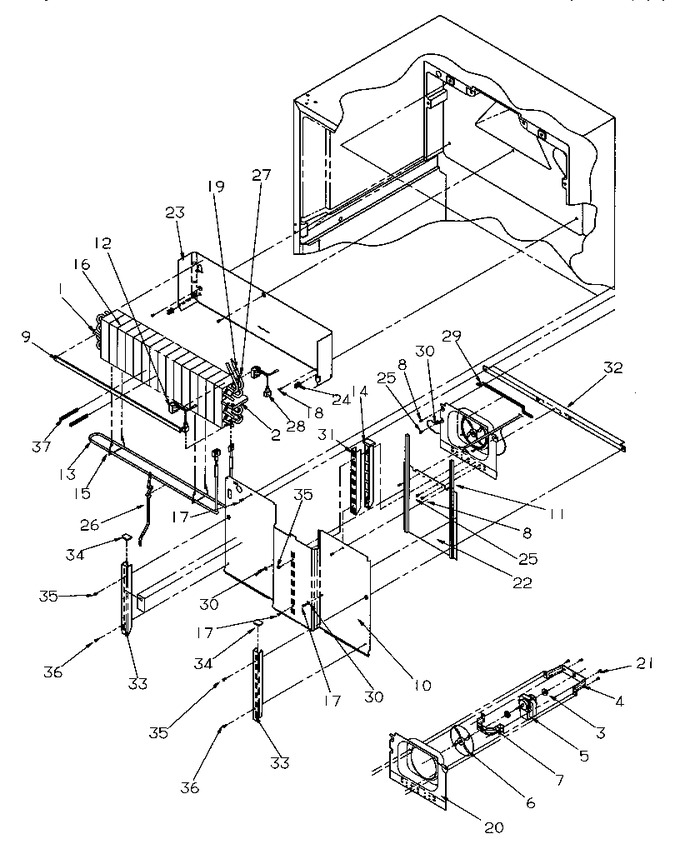

Diagram for TR522SL (BOM: P1182701W L)
