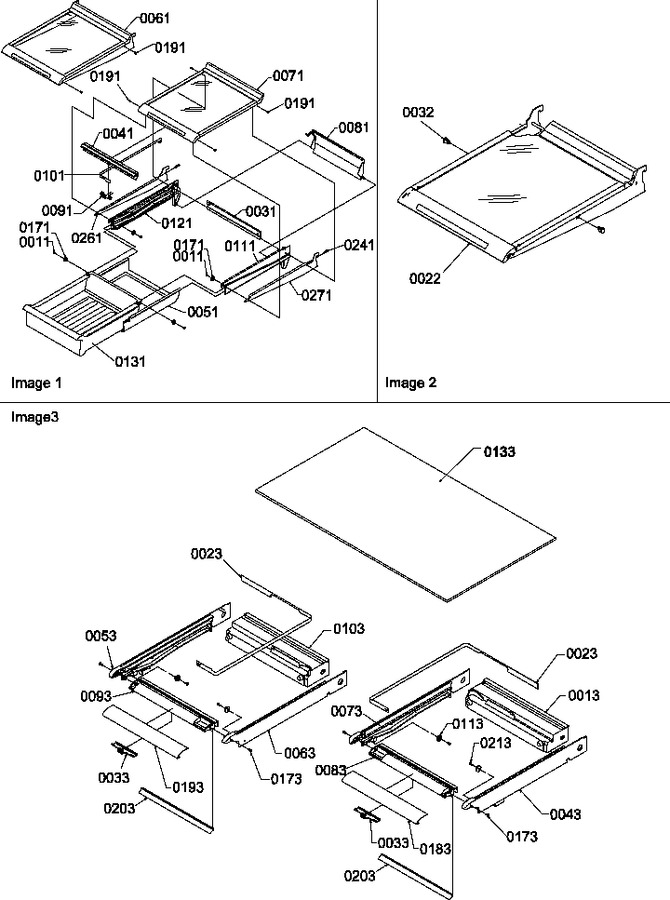

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	67006692		Screw, Shoulder   (Replaces: M0238105)				$ 10.79
13	10433804		Rail, Crisper Back		Appelez-nous	-
22	10895809		Assy, Shelf Hlf Gls		Appelez-nous	-
23	10467804		Band, Crisper Cont.		Appelez-nous	-
31	10920201		Extr, Mk Rear		Appelez-nous	-
32	10875101		Stop, Shelf		Appelez-nous	-
33	10797501		Slide, Crisper		Appelez-nous	-
41	10920301		Extrusion, Mk Frt		Appelez-nous	-
43	10432701		Rail, Side Crisper		Appelez-nous	-
51	10437304		Sleeve, Mk		Appelez-nous	-
53	10432702		Rail, Side Crisper		Appelez-nous	-
61	10895708		Shelf-sta		Appelez-nous	-
63	10432803		Rail, Ctr. Crisper		Appelez-nous	-
73	10432804		Rail, Ctr. Crisper		Appelez-nous	-
81	10445701		Scoop, Air V		Appelez-nous	-
83	10687801		Rail, R. Crisper Frt		Appelez-nous	-
91	10920401		Slide, Mk Control		Appelez-nous	-
93	10687802		Rail, L. Crisper Frt		Appelez-nous	-
101	10920101		Band, Mk Control		Appelez-nous	-
103	10435604		Rail, Crisper Back		Appelez-nous	-
111	10880201		Glide, Mk R		Appelez-nous	-
113	10481001		Roller, Pan				$ 10.99
121	10897101		Glide, Mk L		Appelez-nous	-
131	10417013		Pan,meatkeeper		Appelez-nous	-
133	10370012		Shelf, Glass				$ 86.24
171	10481001		Roller, Pan				$ 10.99
173	67006692		Screw, Hi Lo   (Replaces: M0237932)				$ 10.79
183	10688058		Extr, R Crisp Front		Appelez-nous	-
191	WPW10348409		Screw, Mounting   (Replaces: M0211533)			Immediately	$ 8.20
193	10688057		Extr, L Crisp Front		Appelez-nous	-
203	10530201		Seal, Crisper		Appelez-nous	-
213	67006692		Screw, Shoulder   (Replaces: M0238105)				$ 10.79
