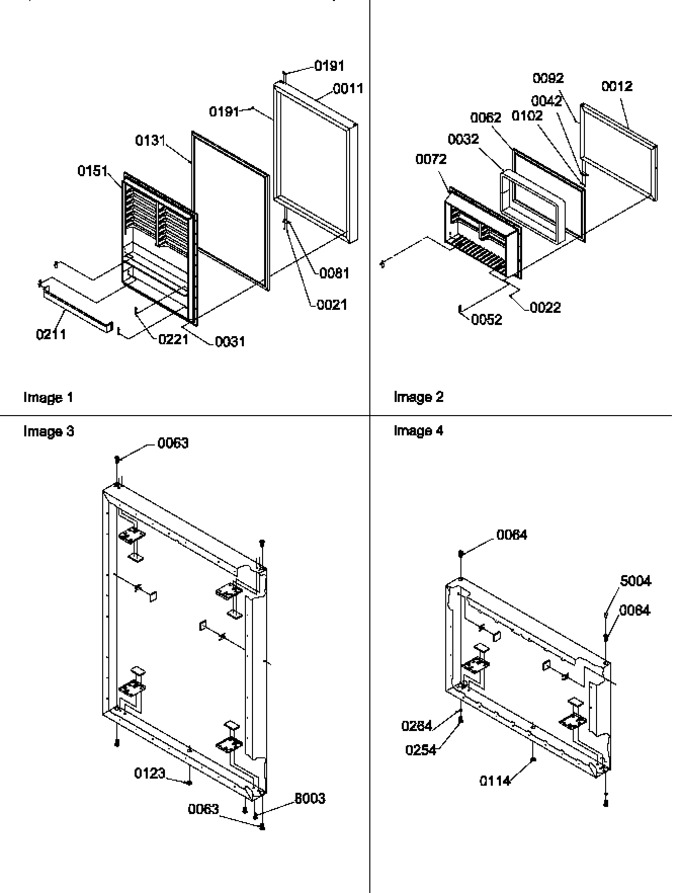

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	10925406W		Ass`y, Ref Dr (white)		Appelez-nous	-
12	10925614W		Assy, Fz Dr Fm (white)		Appelez-nous	-
21	WPW10348409		Screw, Mounting   (Replaces: M0211533)			Immediately	$ 8.20
22	M0219730		Screw				$ 7.65
31	M0219730		Screw				$ 7.65
32	B0523593		Insulation, Batt Frz. Dr.		Appelez-nous	-
42	10447102		Stop, Door		Appelez-nous	-
52	10202001		Clip, Retainer		Appelez-nous	-
62	10456804		Gasket,fz Dr(white)		Appelez-nous	-
63	10961001		Bushing, Door (wht)		Appelez-nous	-
64	10961001		Bushing, Door (wht)		Appelez-nous	-
72	10447501		Liner, Frz Door		Appelez-nous	-
81	10447102		Stop, Door		Appelez-nous	-
92	WP67001130		Plug, Top Hinge Button (wht)   (Replaces: M0310729)			Immediately	$ 5.98
102	WPW10348409		Screw, Mounting   (Replaces: M0211533)			Immediately	$ 8.20
114	M0310308		Plug, Button (wht)		Appelez-nous	-
123	M0310308		Plug, Button (wht)		Appelez-nous	-
131	WP12550111Q		Gasket,ref Dr(white)   (Replaces: 10456803)				$ 178.50
151	10444601		Liner, Refrig. Door		Appelez-nous	-
191	WP67001130		Plug, Top Hinge Button (wht)   (Replaces: M0310729)			Immediately	$ 5.98
211	10419007		Retainer, Ref Door		Appelez-nous	-
221	10202001		Clip, Retainer		Appelez-nous	-
254	12028601		Bushing, Door (wht)		Appelez-nous	-
264	10252903		Filter, Bushing		Appelez-nous	-
5004	10686401		Plug Button		Appelez-nous	-
8003	WPW10348409		Screw, Mounting   (Replaces: M0211533)			Immediately	$ 8.20
