SELECT A DIAGRAM

01 - Oven Parts


02 - Control Panel Parts


03 - Oven Door Parts


04 - Latch Parts


05 - Internal Oven Parts


06 - Cabinet And Stirrer Parts


07 - Microwave Compartment Parts


08 - Microwave Door Parts


09 - Top Venting Parts


10 - Optional Parts (not Included)

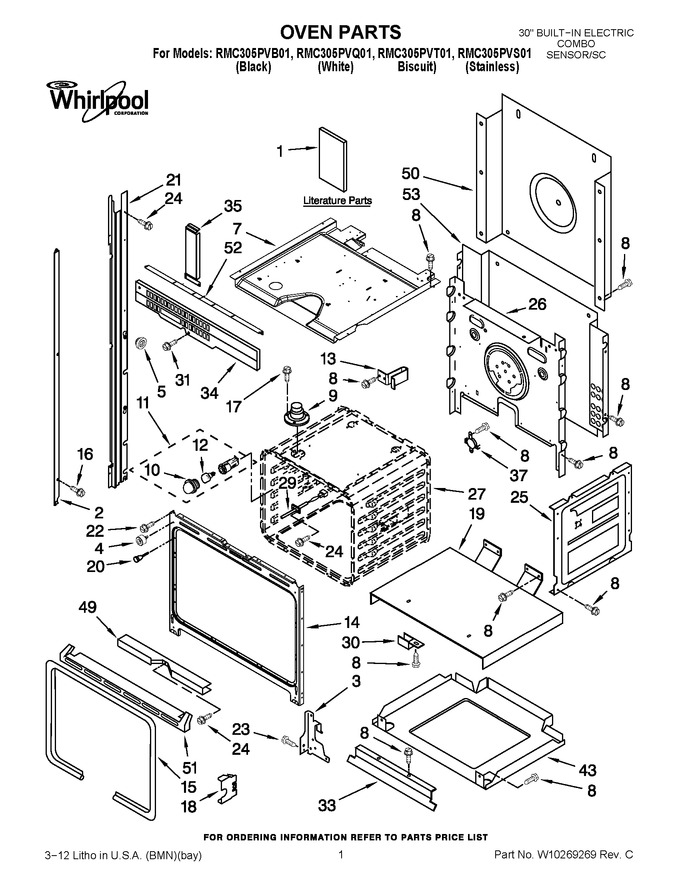

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10192051		Installation Instructions		Appelez-nous	-
1	W10192043		Use & Care Guide (oven)		Appelez-nous	-
1	8304173		Tech Sheet (oven)		Appelez-nous	-
1	9762761		Safer Cooking Tips (english)		Appelez-nous	-
1	W10065852		Safer Cooking Tips (french)		Appelez-nous	-
1	W10192044		Use & Care Guide (microwave)		Appelez-nous	-
2	W10207444		Trim, Side Right (white)		Appelez-nous	-
2	W10207442		Trim, Side Right (black)				$ 58.84
2	W10207446		Trim, Side Right (biscuit)		Appelez-nous	-
2	W10145006		Trim, Side Right (stainless)				$ 69.10
2	W10207443		Trim, Side Left (black)				$ 69.99
2	W10207445		Trim, Side Left (white)		Appelez-nous	-
2	W10207447		Trim, Side Left (biscuit)		Appelez-nous	-
2	W10145007		Trim, Side Left (stainless)				$ 78.50
3	WP4455606		Hinge Receiver (right)   (Replaces: 4455606)			Immediately	$ 119.41
3	WP4455605		Hinge Receiver (left)   (Replaces: 4455605)			Immediately	$ 115.36
4	W10105790		Bumper, Door				$ 7.06
5	WP4448444		Grommet, Mounting Rail   (Replaces: 4448444)				$ 7.48
7	8303099		Top Chassis				$ 70.97
8	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.19
9	W10861715		Tube, Vent   (Replaces: 4452158)				$ 116.63
10	W10067870		Lens, Light				$ 65.50
11	WPW10734065		Assembly, Oven Light   (Replaces: W10009930)				$ 96.63
12	WP4173175		Bulb, Light   (Replaces: 4452166)			Immediately	$ 53.62
13	8300791		Bracket, Combo		Appelez-nous	-
14	WPW10115831		Frame, Front   (Replaces: W10115831)				$ 335.13
15	W11675844		Gasket, Door   (Replaces: 4455382)			Immediately	$ 69.75
16	WP3400832		Screw   (Replaces: 3400832)			Immediately	$ 7.75
17	W11233072		Screw   (Replaces: 3196176)			Immediately	$ 14.02
18	4452152		Bracket, Mounting				$ 33.50
19	4451478		Support, Insulation				$ 54.10
20	4448520		Bumper, Door				$ 21.19
21	8303118		Rail, Side (left)		Appelez-nous	-
21	8303117		Rail, Side (right)		Appelez-nous	-
22	WP4449040		Screw   (Replaces: 4449040)				$ 6.78
23	WP4449743		Screw   (Replaces: 4449743)				$ 7.19
24	WP4449154		Screw   (Replaces: 4449154)				$ 7.56
25	W10782197		Side, Chassis   (Replaces: 4455641)				$ 143.51
26	W10161110		Back, Chassis		Appelez-nous	-
27	N/P		Liner, Oven (not Serviceable)		Appelez-nous	-
29	WPW10131825		Sensor   (Replaces: W10131825)			Immediately	$ 95.83
30	4449845		Bracket-support		Appelez-nous	-
31	WP4450038		Screw   (Replaces: 4450038)				$ 7.60
33	9760677		Deflector, Vent				$ 155.46
34	8302592		Vent, Center				$ 63.42
35	4449906		Ext Filler		Appelez-nous	-
37	WP9759243		Thermostat (tod)   (Replaces: 9759243)			Immediately	$ 55.44
43	9759713		Base, Chassis				$ 100.19
49	WP4448933		Retainer, Gasket   (Replaces: 4448933)				$ 8.86
50	WP4451747		Cover, Back   (Replaces: 4451747)				$ 142.92
51	WPW10207689		Trim, Vent Bottom (black)   (Replaces: W10207689)				$ 196.04
51	WPW10207689		Trim, Vent Bottom (white)   (Replaces: W10207690)				$ 196.04
51	WPW10207689		Trim, Vent Bottom (biscuit)   (Replaces: W10207691)				$ 196.04
51	W10151131		Trim, Vent Bottom (stainless)		Appelez-nous	-
52	8303502		Vent, Control		Appelez-nous	-
53	4451756		Chassis, Back		Appelez-nous	-
NI	W11684730		Insulation, Wrap   (Replaces: 4449316)				$ 118.90
NI	4450365		Insulation, Back				$ 70.95

    View Diagram in Separate Window       Print Part List
