SELECT A DIAGRAM

01 - Cooktop Parts

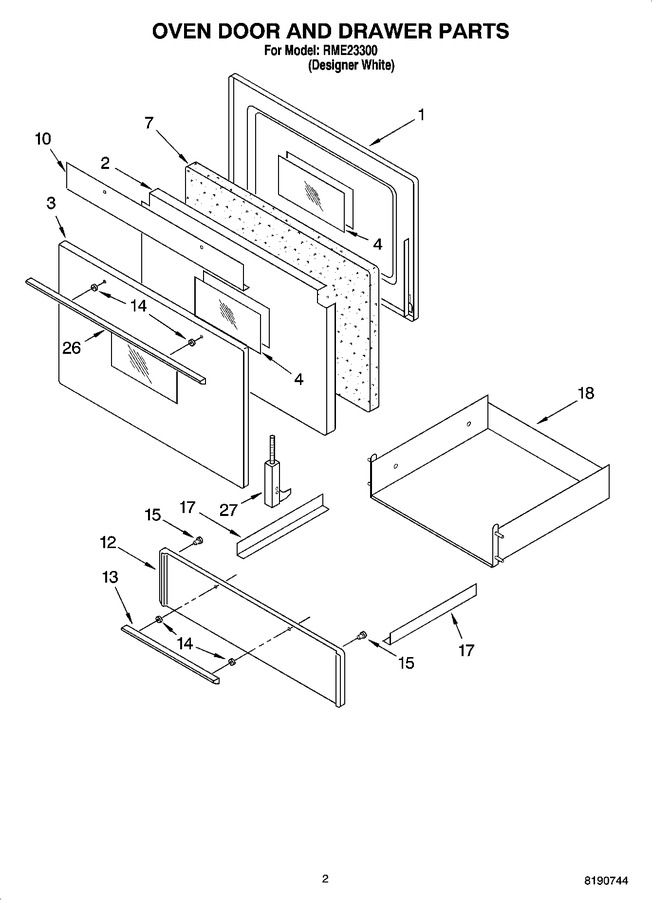

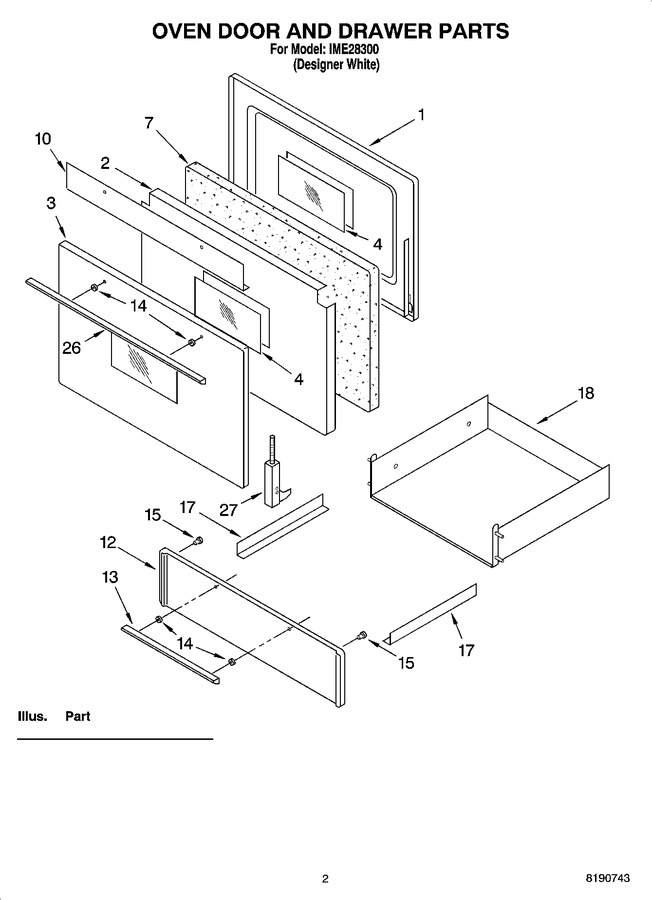

02 - Oven Door And Drawer Parts


03 - Chassis Parts


04 - Backguard Parts, Miscellaneous Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8190729		Liner, Door		Appelez-nous	-
2	8190728		Retainer, Insul		Appelez-nous	-
3	8190727		Panel, Oven Door				$ 135.85
4	4364327		Glass, Window		Appelez-nous	-
7	4364230		Insulation, Door		Appelez-nous	-
10	8190733		Shield, Heat		Appelez-nous	-
12	8190698		Panel, Drawer		Appelez-nous	-
13	8190699		Handle, Drawer		Appelez-nous	-
14	4364465		Spacer, Handle		Appelez-nous	-
14	4364057		Screw, 10-24 X 3/8		Appelez-nous	-
15	4364305		Bumper, Drawer		Appelez-nous	-
17	4364363		Broiler Drawer (left)				$ 45.32
17	4364364		Broiler Drawer (right)				$ 45.32
18	8190700		Body, Drawer		Appelez-nous	-
26	8190730		Handle, Oven Door		Appelez-nous	-
26	8190731		Screw, Handle		Appelez-nous	-
27	8190732		Hinge, Oven Door		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
