SELECT A DIAGRAM
01 - Cooktop Parts

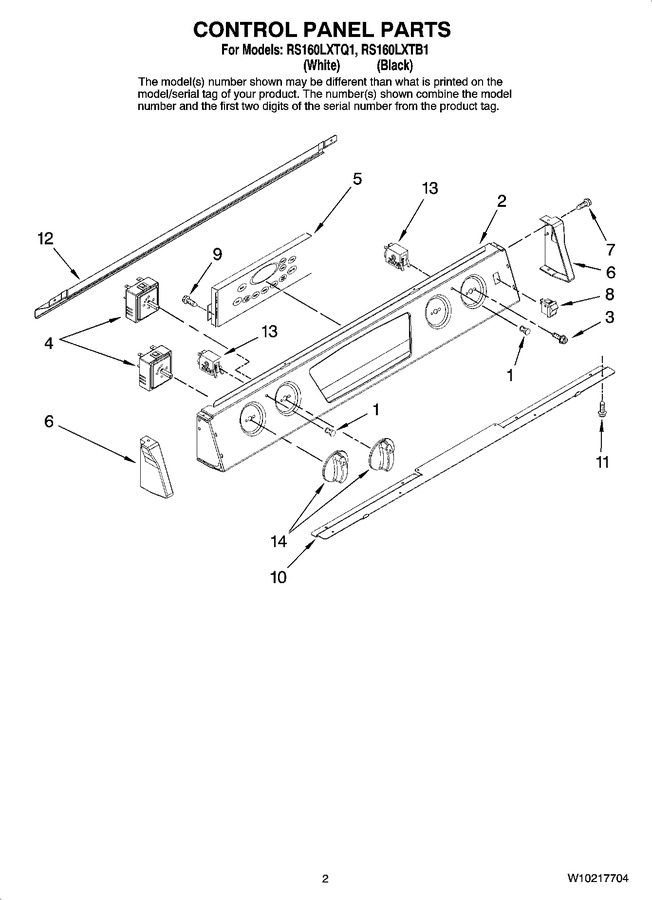

02 - Control Panel Parts
03 - Chassis Parts
04 - Door And Rack Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP7730P011-60 | Lens (Replaces: 7730P011-60) |
|
$ 6.02 | |||||
| 2 | W10165801 | Panel, Control (black) |
|
- | |||||
| 2 | W10165802 | Panel, Control (white) |
|
- | |||||
| 3 | WP7101P309-60 | Screw, Switch (10) (Replaces: 7101P309-60) |
|
Immediately | $ 7.30 | ||||
| 4 | WP7403P238-60 | Switch, Infinte 6`` (lf/rr)(2) (Replaces: 7403P238-60) |
|
Immediately | $ 64.20 | ||||
| 4 | WP7403P239-60 | Switch, Infinte 8`` (rf/lr)(2) (Replaces: 7403P239-60) |
|
Immediately | $ 39.00 | ||||
| 5 | W10769823 | Control W/ Overlay (black) (Replaces: W10169863) |
|
Immediately | $ 295.45 | ||||
| 5 | W10769823 | Control W/ Overlay (white) (Replaces: W10169864) |
|
Immediately | $ 295.45 | ||||
| 6 | 74004822 | End Cap (left White) |
|
- | |||||
| 6 | 74010835 | End Cap (left Black) |
|
- | |||||
| 6 | 74010834 | End Cap (right Black) |
|
- | |||||
| 6 | 74004821 | End Cap (right White) |
|
- | |||||
| 7 | WP98008545 | Screw, End Cap (black) (Replaces: 74009537) |
|
$ 18.60 | |||||
| 7 | WP98008544 | Screw, End Cap (white) (Replaces: 74009540) |
|
$ 13.87 | |||||
| 8 | 74008717 | Switch, Rocker (white) |
|
$ 84.80 | |||||
| 8 | 74008718 | Switch, Rocker (black) |
|
$ 50.46 | |||||
| 9 | WP59002061 | Screw, Control (Replaces: 74004288) |
|
$ 8.18 | |||||
| 10 | 74004785 | Support, Control Panel |
|
- | |||||
| 11 | W11233072 | Screw, Support (4) (Replaces: 7101P338-60) |
|
Immediately | $ 14.72 | ||||
| 12 | 74001337 | Shield, Heat |
|
- | |||||
| 13 | WP74004153 | Light, Indicator (Replaces: 74004153) |
|
Immediately | $ 8.91 | ||||
| 14 | 74003612 | Knob (4) (black) |
|
$ 16.42 | |||||
| 14 | WP74003611 | Knob (4) (white) (Replaces: 74003611) |
|
$ 20.36 |
