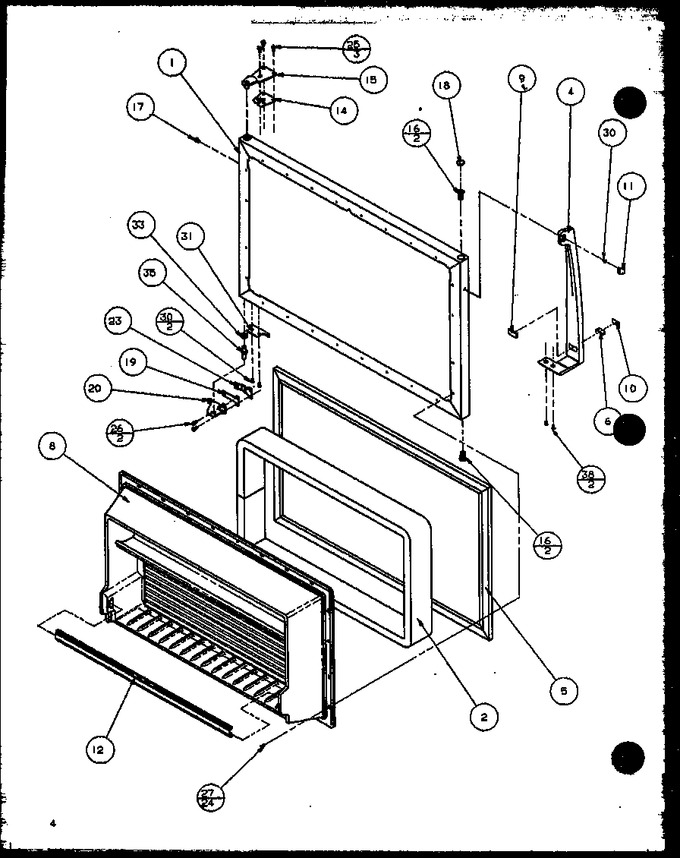

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	10253802Q		G Fz. Dr. Foam Assy		Appelez-nous	-
1	10253801Q		W Fz Dr Fm Assy		Appelez-nous	-
1	10253803Q		Foam Dr Assy Almond		Appelez-nous	-
2	876370		Insulation Bott (1= 1ft)   (Replaces: B0523588)				$ 243.14
4	10253507		Fz Handle Assy Bk		Appelez-nous	-
5	D7605106		Gasket		Appelez-nous	-
6	10184501		Pad Nameplate		Appelez-nous	-
8	D7583908		Inner Dr Panel Frz		Appelez-nous	-
9	10184305		Plug Nameplate		Appelez-nous	-
10	10184401		Nameplate, Handle		Appelez-nous	-
11	10201809		Cover, Handle Screw-blk		Appelez-nous	-
12	C8907233		Retainer-package		Appelez-nous	-
14	B8389002		Shim Top Hinge		Appelez-nous	-
14	B8389003		Shim, Top Hinge, .016		Appelez-nous	-
14	B8389001		Shim, Top Hinge		Appelez-nous	-
15	B5744301		Hinge		Appelez-nous	-
16	10392602		Bushing		Appelez-nous	-
17	WP67001130		Plug, Button (wht)   (Replaces: M0310701)			Immediately	$ 5.98
17	M0310714		Plug		Appelez-nous	-
17	M0310704		Plug		Appelez-nous	-
18	M0310601		Plug		Appelez-nous	-
18	M0310608		Plug		Appelez-nous	-
18	M0310606		Plug		Appelez-nous	-
19	B8351405		Shim, Center Hinge		Appelez-nous	-
20	C8948601		Center Hinge Bracket		Appelez-nous	-
23	C8925502		Strip Hinge Top		Appelez-nous	-
25	R9800670		Kit, Screw   (Replaces: M0226331)				$ 10.58
26	W11573362		Screw, T. F.   (Replaces: M0226233)				$ 14.72
27	M0219730		Screw				$ 7.65
30	WPW10348409		Mounting Screw   (Replaces: M0203944)			Immediately	$ 8.20
31	10266101		Stop Door		Appelez-nous	-
33	M0274049		Washer		Appelez-nous	-
35	B8373101		Center Pin Hinge		Appelez-nous	-
38	WPW10348409		Screw   (Replaces: M0222429)			Immediately	$ 8.20
