SELECT A DIAGRAM

01 - Cabinet


02 - Refrigerator Liner


03 - Freezer Liner


04 - Air Flow


05 - Motor And Ice Container


06 - Refrigerator Door


07 - Freezer Door


08 - Dispenser Front


09 - Unit


10 - Icemaker


11 - Control, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2194995W		Refrigerator Door Panel (white)		Appelez-nous	-
1	2194995N		Refrigerator Door Panel (almond (also Order Item 20))		Appelez-nous	-
2	2155335		Tap, Plate		Appelez-nous	-
3	4318165		Door Closer, Upper Cam   (Replaces: 2182132)			Immediately	$ 29.74
4	WP489483		Screw   (Replaces: 489420)				$ 11.41
5	2155332		Bracket, Door Stop		Appelez-nous	-
6	935075		Shim		Appelez-nous	-
7	1119359		End Cap (2)		Appelez-nous	-
8	2194773W		Insert, Bottom (white)		Appelez-nous	-
8	2194773N		Insert, Bottom (almond)		Appelez-nous	-
9	WP489463		Screw   (Replaces: 489463)				$ 8.25
10	1117766		Gasket Retainer, Side (2)				$ 36.55
11	1118301		Gasket Retainer, Top & Bottom		Appelez-nous	-
12	2188404A		Door Gasket, Magnetic   (Replaces: 1129266)				$ 269.26
13	509929		Cap, Hinge Sleeve		Appelez-nous	-
14	2194767N		Handle, Center (almond)		Appelez-nous	-
14	2194767W		Handle, Center (white)		Appelez-nous	-
15	2152266		Reinforcement, Shelf		Appelez-nous	-
16	489022		Screw		Appelez-nous	-
17	941242		Screw Anchor		Appelez-nous	-
18	489075		Screw		Appelez-nous	-
19	2194774W		Insert, Top (white)		Appelez-nous	-
19	2194774N		Insert, Top (almond)		Appelez-nous	-
20	876029		Foam Insulation (required When Replacing Exterior Door Panel)		Appelez-nous	-
21	2194771		Insert Retainer (top)		Appelez-nous	-
22	2194770		Insert Retainer (bottom)		Appelez-nous	-
23	2156220		End Cap (2)		Appelez-nous	-
24	WP2182189		Trim, Door Shelf (2)   (Replaces: 2182189)				$ 100.56
26	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
27	1124961		Interior Door Panel (also Order Item No.15)		Appelez-nous	-
28	2182190		Trim, Door Shelf (2)		Appelez-nous	-
29	WP2196190		End Cap (left Side (4))   (Replaces: 2182122)				$ 14.54
29	WP2196189		End Cap (right Side (4))   (Replaces: 2182123)				$ 14.06
32	2148289		Compartment Door		Appelez-nous	-
33	2162896		Trim, Door Compartment		Appelez-nous	-
34	WP489069		Screw, (30)   (Replaces: 489101)			Immediately	$ 8.40

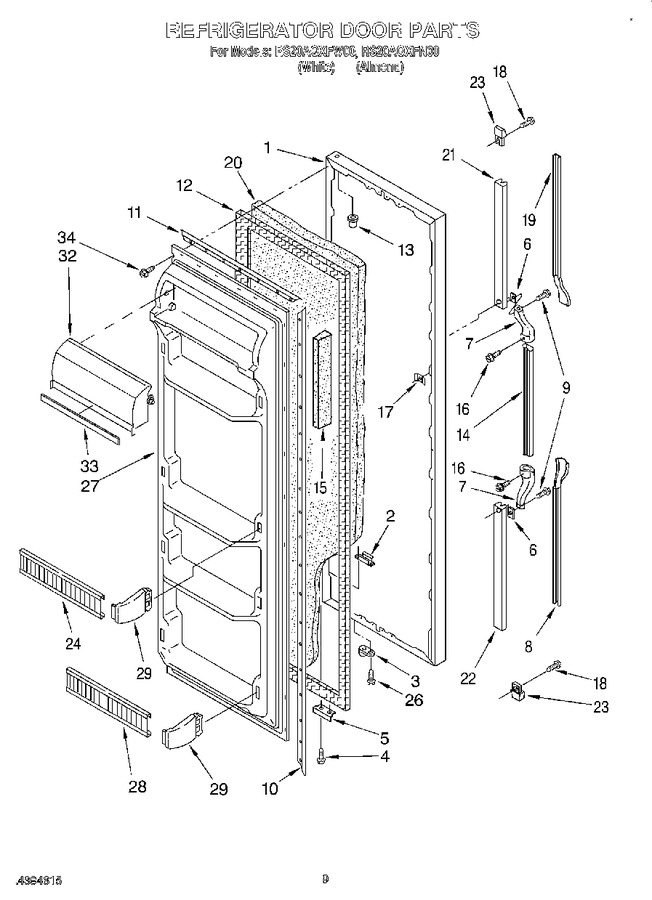

    View Diagram in Separate Window       Print Part List
