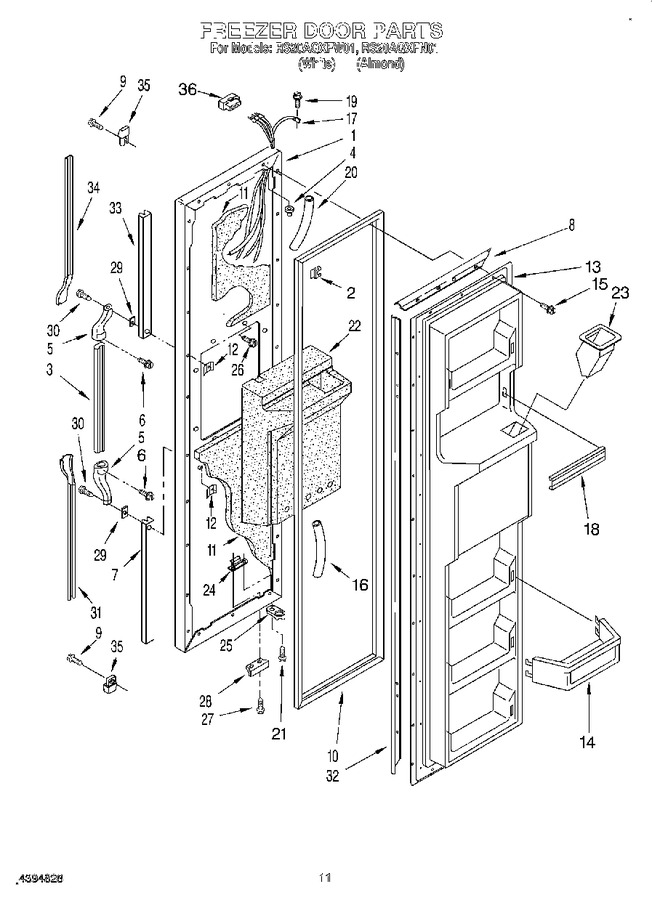

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2194998W | Freezer, Door Panel (white) |
|
- | |||||
| 1 | 2194998N | Freezer, Door Panel (almond (also Order Item 11)) |
|
- | |||||
| 2 | 2198369 | Clip |
|
- | |||||
| 3 | 2194767N | Handle (almond) |
|
- | |||||
| 3 | 2194767W | Handle (white) |
|
- | |||||
| 4 | 939886 | Cap, Hinge Sleeve |
|
- | |||||
| 5 | 1119359 | End Cap |
|
- | |||||
| 6 | 489022 | Screw |
|
- | |||||
| 7 | 2194770 | Insert Retainer (bottom) |
|
- | |||||
| 8 | 1117767 | Retainer, Gasket |
|
- | |||||
| 9 | WP3400852 | Screw (Replaces: 3400852) |
|
$ 10.33 | |||||
| 10 | 2188405A | Door Gasket, Magnetic (Replaces: 1129267) |
|
$ 368.63 | |||||
| 11 | 876029 | Foam Insulation (required When Replacing Exterior Door Panel) |
|
- | |||||
| 12 | WP939101 | Screw Anchor (3) (Replaces: 939101) |
|
$ 7.88 | |||||
| 13 | 1126179 | Panel, Interior Door |
|
- | |||||
| 14 | 2169749 | Trim, Door Shelf (4) |
|
- | |||||
| 15 | WP489069 | Screw (Replaces: 489101) |
|
Immediately | $ 8.40 | ||||
| 16 | 2147080 | Tube, Water Line |
|
- | |||||
| 17 | 2198271 | Harness, Door |
|
- | |||||
| 18 | WP2201061 | Trim, Door Shelf (Replaces: 2177884) |
|
$ 124.32 | |||||
| 19 | WP3400906 | Screw (Replaces: 489000) |
|
$ 9.05 | |||||
| 20 | 2198196 | Tube, Door Wiring |
|
- | |||||
| 21 | WP3400012 | Screw (Replaces: 3400012) |
|
$ 8.26 | |||||
| 22 | 2149014 | Insulation, Dispenser |
|
- | |||||
| 23 | 2180204 | Chute, Ice |
|
- | |||||
| 24 | 2155335 | Tap, Plate |
|
- | |||||
| 25 | 4318165 | Door Closer, Upper Cam (Replaces: 2182132) |
|
Immediately | $ 29.74 | ||||
| 26 | WP489128 | Screw, Ground (Replaces: 488500) |
|
$ 11.40 | |||||
| 27 | WP489483 | Screw (Replaces: 489420) |
|
$ 11.41 | |||||
| 28 | 2195950 | Bracket, Door Stop |
|
$ 5.84 | |||||
| 29 | 935075 | Shim |
|
- | |||||
| 30 | WP489463 | Screw (Replaces: 489463) |
|
$ 8.25 | |||||
| 31 | 2194773W | Insert, Bottom (white) |
|
- | |||||
| 31 | 2194773N | Insert, Bottom (almond) |
|
- | |||||
| 32 | 1117766 | Retainer, Gasket |
|
$ 36.55 | |||||
| 33 | 2194771 | Insert Retainer (top) |
|
- | |||||
| 34 | 2194774W | Insert, Top (white) |
|
- | |||||
| 34 | 2194774N | Insert, Top (almond) |
|
- | |||||
| 35 | 2156220 | End Cap |
|
- | |||||
| 36 | WP2154473 | Connector (Replaces: 2154473) |
|
$ 24.83 |
