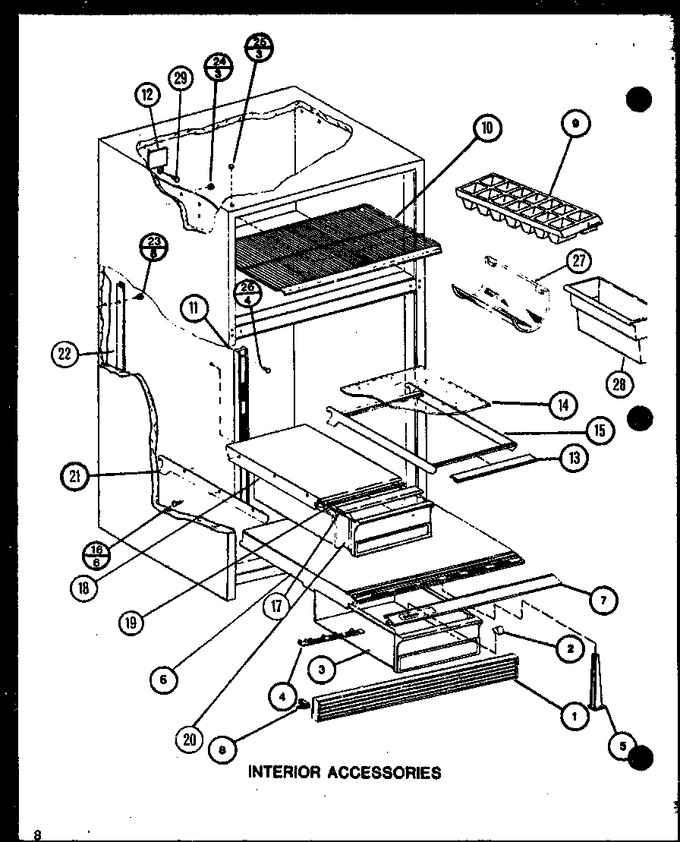

01 - Compressor Compartments Parts


02 - Fz Door Parts


03 - Interior Accessories


04 - Rear Components


05 - Ref Door Parts


06 - Ref Fz Functional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D7520505		Grille-toe		Appelez-nous	-
2	C8908301		Knob Humidity A-k		Appelez-nous	-
3	D7581023		Pan, Crisper		Appelez-nous	-
4	D7587705		Slide Humidity		Appelez-nous	-
5	D7602202		Crisper Support Post		Appelez-nous	-
6	D7616506		Crisper Top,assy		Appelez-nous	-
7	D7616617		Trim		Appelez-nous	-
8	M0117301		Clip, Grille		Appelez-nous	-
9	WP841180A		Tray, Ice   (Replaces: D7725401)			Immediately	$ 47.84
10	D7580704		Shelf, Frz		Appelez-nous	-
11	D7599001		Ladder Center		Appelez-nous	-
12	D7874401		Cover Fill Tube		Appelez-nous	-
13	C8913507		Trim, Front Shelf		Appelez-nous	-
14	D7421281		Glass Shelf		Appelez-nous	-
15	D7871002		Frame, Cantilever		Appelez-nous	-
16	M0230028		Screw, No.8-32 X 5/16 Pph (blk)		Appelez-nous	-
17	C8913507		Trim, Front Shelf		Appelez-nous	-
18	D7698205		Top M.k		Appelez-nous	-
19	D7718401		Seal Meat Pan		Appelez-nous	-
20	D7710514		Deli Drawer		Appelez-nous	-
21	D7862912		Blank Side Rail		Appelez-nous	-
21	D7862940		Blank Side Rail		Appelez-nous	-
22	D7599103		Ladder Side		Appelez-nous	-
23	67006425		Screw-sm No.8-1/2lg   (Replaces: M0211017)			Immediately	$ 7.30
24	WP67001130		Plug, Button (wht)   (Replaces: M0310701)			Immediately	$ 8.21
25	M0310720		Plug		Appelez-nous	-
25	M0310716		Plug		Appelez-nous	-
25	WP67001130		Plug   (Replaces: M0310709)			Immediately	$ 8.21
26	M0230923		Screw		Appelez-nous	-
27	D7547605		Bottle Rack		Appelez-nous	-
28	D7709904		Ice Bucket		Appelez-nous	-
29	67006425		Screw   (Replaces: M0230917)			Immediately	$ 7.30
NI	Y00000000		See Note Add-on Ice Maker -- (available From Sales)		Appelez-nous	-
NI	D7871110		Glass Shelf Assy		Appelez-nous	-
NI	R9800670		Kit, Screw   (Replaces: M0257244)				$ 10.58
