SELECT A DIAGRAM

01 - Cabinet


02 - Refrigerator Liner


03 - Freezer Liner


04 - Freezer Interior


05 - Refrigerator


06 - Freezer Door


07 - Dispenser Front


08 - Air Flow


09 - Control


10 - Unit


11 - Icemaker, Lit/optional

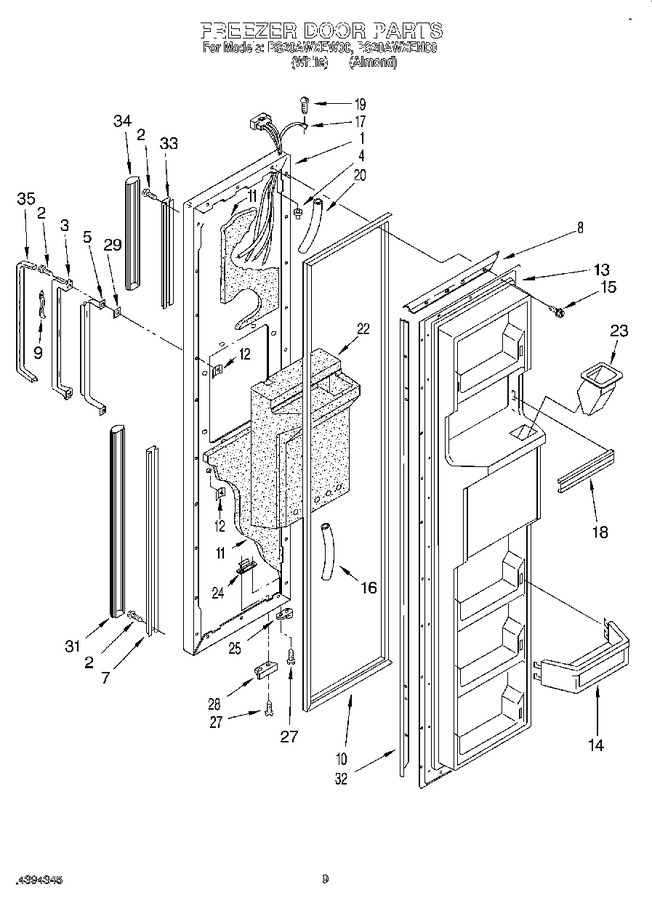

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2147452		Freezer, Door Panel (almond (also Order Item 11))		Appelez-nous	-
1	2147450		Freezer, Door Panel (white)		Appelez-nous	-
2	WP489463		Screw   (Replaces: 489463)				$ 7.82
3	2170066		Handle (almond)		Appelez-nous	-
3	2147470		Handle (white)		Appelez-nous	-
4	939886		Cap, Hinge Sleeve		Appelez-nous	-
5	1127465		Reinforcement, Handle		Appelez-nous	-
7	2147896		Insert Retainer (bottom)		Appelez-nous	-
8	1117767		Retainer, Gasket		Appelez-nous	-
9	849445		Screw		Appelez-nous	-
10	2188405A		Door Gasket, Magnetic   (Replaces: 1129267)				$ 351.08
11	876029		Foam Insulation (required When Replacing Exterior Door Panel)		Appelez-nous	-
12	WP939101		Screw Anchor (3)   (Replaces: 939101)				$ 7.50
13	1125649		Panel, Interior Door		Appelez-nous	-
14	2169749		Trim, Door Shelf (4)		Appelez-nous	-
15	WP489069		Screw   (Replaces: 489101)			Immediately	$ 7.86
16	2147080		Tube, Water Line		Appelez-nous	-
17	2179915		Harness, Door		Appelez-nous	-
18	WP2201061		Trim, Door Shelf   (Replaces: 2189637)				$ 118.40
19	WP488234		Screw   (Replaces: 489422)				$ 6.74
20	1119059		Tube, Door Wiring		Appelez-nous	-
22	1115206		Insulation, Dispenser		Appelez-nous	-
23	987188		Chute, Ice		Appelez-nous	-
24	2155335		Tap, Plate		Appelez-nous	-
25	4318165		Door Closer, Upper Cam   (Replaces: 2155312)			Immediately	$ 27.36
27	WP999367		Screw   (Replaces: 489367)				$ 7.86
28	2155332		Bracket, Door Stop		Appelez-nous	-
29	2147097		Shim		Appelez-nous	-
30	WPW10141645		Screw   (Replaces: 489084)				$ 7.67
31	2170068		Insert, Bottom (almond)		Appelez-nous	-
31	2147471		Insert, Bottom (white)		Appelez-nous	-
32	1117766		Retainer, Gasket				$ 36.55
33	2147898		Insert Retainer (top)		Appelez-nous	-
34	2170067		Insert, Top (almond)		Appelez-nous	-
34	2147472		Insert, Top (white)		Appelez-nous	-
35	2147581		Insert, Handle		Appelez-nous	-
