SELECT A DIAGRAM

Diagram for 01 - Cabinet
01 - Cabinet

Diagram for 02 - Refrigerator Liner
02 - Refrigerator Liner

Diagram for 03 - Freezer Liner
03 - Freezer Liner

Diagram for 04 - Refrigerator Door
04 - Refrigerator Door

Diagram for 05 - Freezer Door
05 - Freezer Door

Diagram for 06 - Air Flow
06 - Air Flow

Diagram for 07 - Control
07 - Control

Diagram for 08 - Unit, Lit/optional
08 - Unit, Lit/optional


New Model Search:


1-855-472-4566
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WP486692 Speed Nut   (Replaces: 486692) Special Order $ 8.43

2 1108179 Fan, Blade Special Order $ 49.54

3 2154010 Condenser Assembly Appelez-nous -
4 WP489464 Screw   (Replaces: 489337) In-Stock Immediately $ 8.38

6 681390 Screw   (Replaces: 489019) Special Order $ 13.71

7 2149293 Heat Shield And Drain Pan Appelez-nous -
8 2160505 Cover, Unit Compartment Appelez-nous -
9 489396 Clip Special Order $ 11.26

11 938384 Strap Appelez-nous -
12 1108115 Cover Appelez-nous -
13 1108114 Overload) (service (includes Relay) Appelez-nous -
13 4387535 Overload (production (includes Relay))   (Replaces: 2159596) Special Order $ 191.05

15 N/A Relay (see Overload) Appelez-nous -
17 WPW10662129 Capacitor (service)   (Replaces: 1118581) In-Stock Immediately $ 58.86

17 2154565 Capacitor (production) Appelez-nous -
19 509812 Screw, Grommit Appelez-nous -
22 WP2188822 Evaporator   (Replaces: 2155500) In-Stock Immediately $ 356.84

23 2161329 Clip Appelez-nous -
24 833697 Motor, Fan   (Replaces: 2162431) In-Stock Immediately $ 88.15

25 WPW10614158 Tray, Evaporator   (Replaces: 1105523) In-Stock Immediately $ 113.18

26 2153994 Harness, Intermediate Appelez-nous -
27 W10843121 Drier   (Replaces: 2154002) In-Stock Immediately $ 57.13

28 876765 Tube Kit In-Stock Immediately $ 90.65

28 W10439652 Compressor (includes Items 11, 12, 13, 15, 17, 38 & 56) (also Order)   (Replaces: 2154557) Special Order $ 442.20

30 2160498 Unit Mounting Frame Appelez-nous -
32 2162062 Fan, Motor Bracket Appelez-nous -
33 2162079 Heater, Defrost Appelez-nous -
34 2161330 Clip, Heater Appelez-nous -
35 WPW10225581 Defrost, Bi-metal   (Replaces: 2161331) In-Stock Immediately $ 50.77

37 876811 Screw   (Replaces: 489373) Special Order $ 7.79

38 WP2172890 Wire Asm   (Replaces: 1127675) Special Order $ 8.51

39 876811 Grommet (4)   (Replaces: 1100826) Special Order $ 7.79

40 489340 Screw Appelez-nous -
41 1127938 Air, Baffle Appelez-nous -
42 2155547 Clip, Heat Shield Appelez-nous -
48 2149717 Unit Mounting Rail Appelez-nous -
49 488624 Screw Appelez-nous -
50 1105612 Guard, Fan Special Order $ 42.61

51 W11751592 Sleeve   (Replaces: 2161302) In-Stock Immediately $ 21.32

52 WPW10339879 Strap   (Replaces: 2155774) Special Order $ 8.30

53 WP489427 Screw   (Replaces: 489339) Special Order $ 7.84

54 850145 Wire Connector Appelez-nous -
55 WP489478 Screw   (Replaces: 489242) Special Order $ 8.18

56 W11693756 Screw   (Replaces: 487240) In-Stock Immediately $ 14.76

59 2155658 Clip, Wire And Water Tube Appelez-nous -
61 515393 Transformer (115-230 Volt) Appelez-nous -
61 350956 Xenamel, Almond (13 Oz. Spray Can) Special Order $ 54.01

61 WP503695 Cork, Sealer 1/4 Pound)   (Replaces: 503695) Special Order $ 123.84

61 WP505587 Sealer, Mastic (1 Qt.).   (Replaces: 505587) In-Stock Immediately $ 182.65

61 WP542638 Grease, Silicone (1/2 Oz.)   (Replaces: 542638) In-Stock Immediately $ 12.78

61 542639 Cement, Alumilastic 1-1/4 Oz.) Appelez-nous -
61 72017 Paint, Touch-up 1/2 Oz. (white) In-Stock Immediately $ 12.30

61 72032 Paint, Touch-up 1/2 Oz. (black) In-Stock Immediately $ 18.69

61 WP72107 Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107) Special Order $ 18.81

61 876370 Kit, Insulation (14 Pcs. X 3`` X 24`` X 48``)   (Replaces: 876305) Special Order $ 243.14

61 WP978025 Valve, Access (1/4``)   (Replaces: 978025) In-Stock Immediately $ 110.51

61 876370 Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941) Special Order $ 243.14

61 W11693756 Screw   (Replaces: 488687) In-Stock Immediately $ 14.76

61 978026 Valve, Access (5/16``) In-Stock Immediately $ 134.49

61 SF5538 Valve, Access (3/8``)   (Replaces: 978027) Special Order $ 21.64

61 978028 Valve, Access (1/2) Appelez-nous -
61 978029 Valve Access (5/8``) Special Order $ 93.85

61 978030 Valve, Access (3/4``) Special Order $ 137.25

61 876764 Valve, Access(3/16``) In-Stock Immediately $ 95.92

61 350942 Primer White (13 Oz. Spray Can) Special Order $ 94.14

61 350941 Leveler, Enamel (13 Oz. Spray Can) Appelez-nous -
61 285006 Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939) Special Order $ 59.89

61 350930 Paint, Pressurized Spray (12 Oz.) White In-Stock Immediately $ 40.12

61 285365 Paint, Spray (13 Oz.) (toast) Appelez-nous -
61 285366 Paint, Spray (13 Oz.) (platinum) Appelez-nous -
61 261890 Xenamel, Golden Wheat (13 Oz. Spray Can) Appelez-nous -
61 DD81-03523A Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110) Special Order $ 137.86

61 72112 Paint, (touch-up 1/2 Oz.) (toast) Appelez-nous -
61 DD81-03496A Paint, Touch-up 1/2 Oz. (platinum)   (Replaces: 72113) Special Order $ 117.11

61 212643 Sealer, Gum (4 Feet) In-Stock Immediately $ 82.13

61 479502 Tape, Vinyl 3/4 X 108``) Special Order $ 66.77

61 876370 Kit, Insulation 2 Pcs. X 3`` X 24`` X 48``) Special Order $ 243.14

61 876029 Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``) Appelez-nous -
61 511873 Paint, Touch-up 1/2 Oz. (white Porcelain) Special Order $ 51.75

61 606755 Bag, Insulation (36-5/8`` X 46``) Special Order $ 82.37

61 799833 Kit, Evaporator Repair (aluminum Epoxy) Appelez-nous -
61 833938 Kit, Terminal Connector Special Order $ 8.47

61 1117510 Torx Key Special Order $ 5.84

61 285367 Enamal, Toast (1 Qt. Uncut) Appelez-nous -
61 285368 Enamel, Platinum (1 Qt. Uncut) Appelez-nous -
61 799340 Enamel, Black (1 Qt. Uncut) Appelez-nous -
61 799344 Paint, Bulk (1 Qt.) (white) (uncut) Special Order $ 237.46

61 978883 Enamel, Almond (1 Qt. Uncut) Appelez-nous -
61 261891 Enamel, Golden Wheat (1 Qt. Uncut) Appelez-nous -
61 1129316 Imkit   (Replaces: 2155186) In-Stock Immediately $ 149.11

LIT4379042 Repair Parts List Appelez-nous -
LIT2163501 Energy Label Appelez-nous -
LIT2155143 Service And Wiring Sheet Appelez-nous -
LIT2152632 Use & Care Guide Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

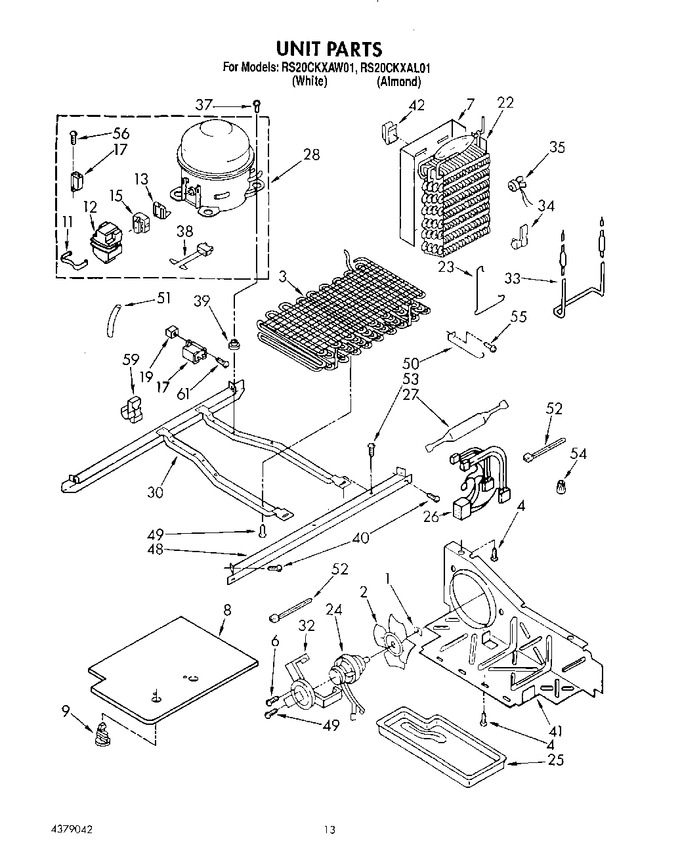

Diagram for RS20CKXAW01
