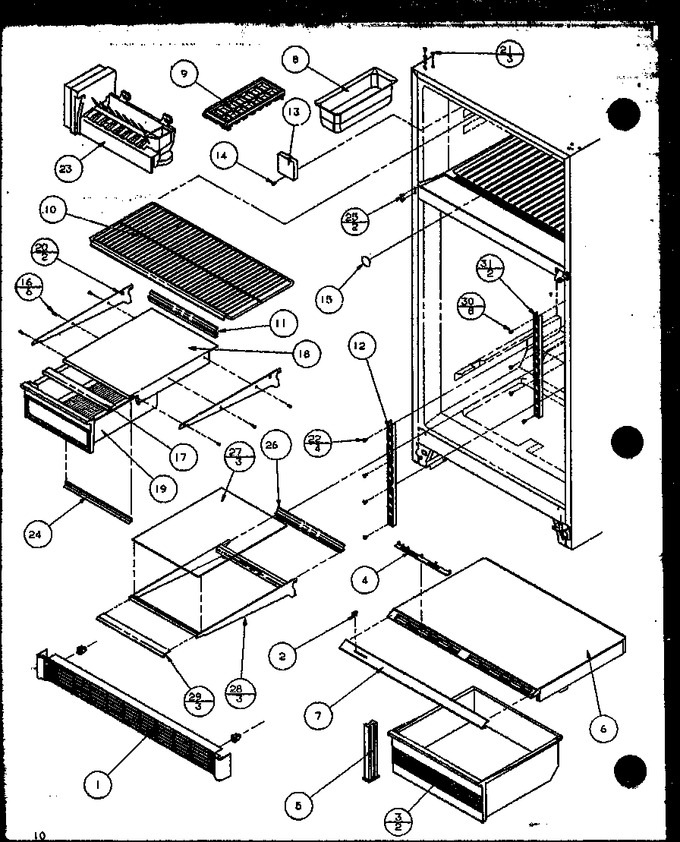

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D7520510		Grille-toe-b K				$ 44.22
2	C8908301		Knob Humidity A-k		Appelez-nous	-
3	D7581032		Pan Crisper		Appelez-nous	-
4	D7587705		Slide Humidity		Appelez-nous	-
5	10199702		Post Crisper Support		Appelez-nous	-
6	D7616505		Top,crisper A-k		Appelez-nous	-
7	D7616650		Trim, Crisper Front		Appelez-nous	-
10	D7580706		Shelf, Frz		Appelez-nous	-
11	C8831810		Trim, Rear Shelf		Appelez-nous	-
12	D7599002		Ladder, Center		Appelez-nous	-
15	M0310305		Plug, Button (wht)		Appelez-nous	-
16	M0230028		Screw, No.8-32 X 5/16 Pph (blk)		Appelez-nous	-
17	10049908		Trim, Shelf		Appelez-nous	-
18	D7698204		Top M.k		Appelez-nous	-
19	D7710521		Drawer - Deli		Appelez-nous	-
20	D7862911		Side Rail		Appelez-nous	-
20	D7862939		Side Rail		Appelez-nous	-
21	M0310716		Plug		Appelez-nous	-
21	WP67001130		Plug   (Replaces: M0310709)			Immediately	$ 5.98
22	M0230923		Screw		Appelez-nous	-
24	D7718401		Seal Meat Pan		Appelez-nous	-
25	R9800670		Kit, Screw   (Replaces: M0226331)				$ 10.58
26	C8913603		Trim, Shelf Rear		Appelez-nous	-
27	D7421280		Glass Shelf		Appelez-nous	-
28	D7871001		Assy, Glass Shelf		Appelez-nous	-
29	10049908		Trim, Shelf		Appelez-nous	-
30	WP90767		Screw, Sm   (Replaces: M0211016)			Immediately	$ 8.25
31	D7599105		Ladder, Side		Appelez-nous	-
NI	D7871121		Assy, Glass Shelf		Appelez-nous	-
NI	D7871122		Assy, Glass Shelf		Appelez-nous	-
NI	D7882005		Crisper Top Assembly		Appelez-nous	-
