SELECT A DIAGRAM

02 - Cabinet


03 - Refrigerator Liner


04 - Freezer Liner


05 - Freezer Door


06 - Refrigerator Door


07 - Unit


08 - Air Flow


09 - Control, Lit/optional

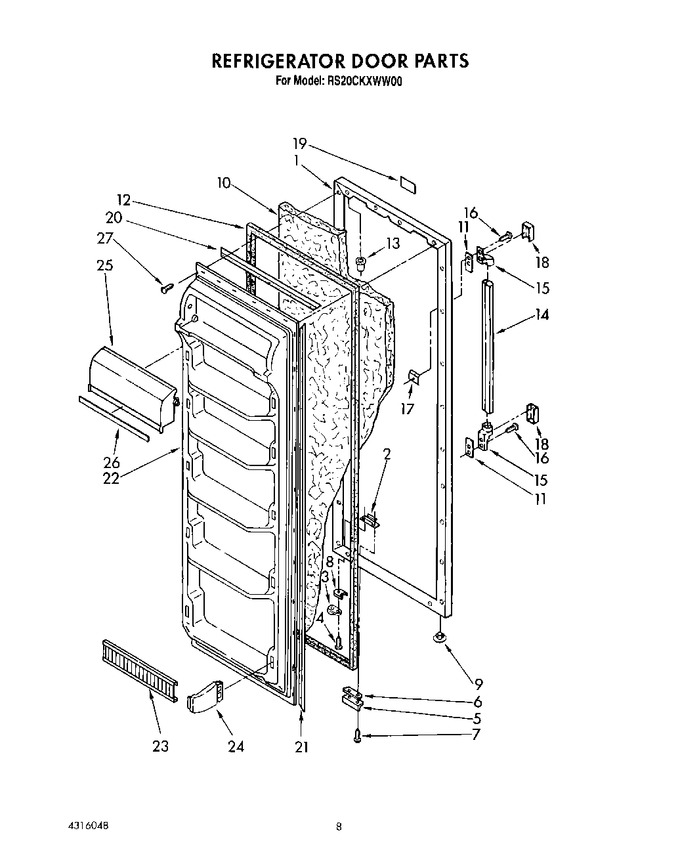

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1118149		Refrigerator Door (almond (also Order Item 10))		Appelez-nous	-
1	1118146		Refrigerator Door (white)		Appelez-nous	-
2	988402		Tap Plate		Appelez-nous	-
3	4318165		Door Closer, Upper Cam   (Replaces: 1115905)			Immediately	$ 29.74
4	WP489069		Screw, 8 X 1/2   (Replaces: 488938)			Immediately	$ 8.40
5	1115906		Bracket, Door Stop		Appelez-nous	-
6	988421		Shim		Appelez-nous	-
7	488549		Screw, 8 X 5/8		Appelez-nous	-
8	WP1104787		Shim, Door Closer   (Replaces: 1104787)				$ 7.96
9	534927		Hole Plug		Appelez-nous	-
10	876029		Foam Insulation (required When Replacing Exterior Door Panel)		Appelez-nous	-
11	987886		Shim, Handle		Appelez-nous	-
12	2188404A		Door Gasket, Magnetic   (Replaces: 1129266)				$ 269.26
13	509929		Cap, Hinge Sleeve		Appelez-nous	-
14	2150280		Handle Center		Appelez-nous	-
15	2150283		End Cap, Handle		Appelez-nous	-
16	WP488729		Screw, 8 X 1/2   (Replaces: 487909)			Immediately	$ 8.28
17	941242		Screw Anchor		Appelez-nous	-
18	987887		Cover, End Cap		Appelez-nous	-
19	1124315		Nameplate		Appelez-nous	-
20	1118301		Gasket Retainer, Top & Bottom		Appelez-nous	-
21	1117766		Gasket Retainer, Side (2)				$ 36.55
22	1129249		Panel, Interior Door		Appelez-nous	-
23	1120852		Trim, Door Shelf (5)		Appelez-nous	-
24	2148028		End Cap, Trim (10)		Appelez-nous	-
25	1124431		Door, Compartment		Appelez-nous	-
26	1124432		Trim, Compartment Door		Appelez-nous	-
27	WP489069		Screw, (30) 7 X 1/2   (Replaces: 489101)			Immediately	$ 8.40

    View Diagram in Separate Window       Print Part List
