SELECT A DIAGRAM
01 - Cabinet
02 - Refrigerator Liner
03 - Freezer Liner
04 - Air Flow
05 - Refrigerator Door
06 - Freezer Door

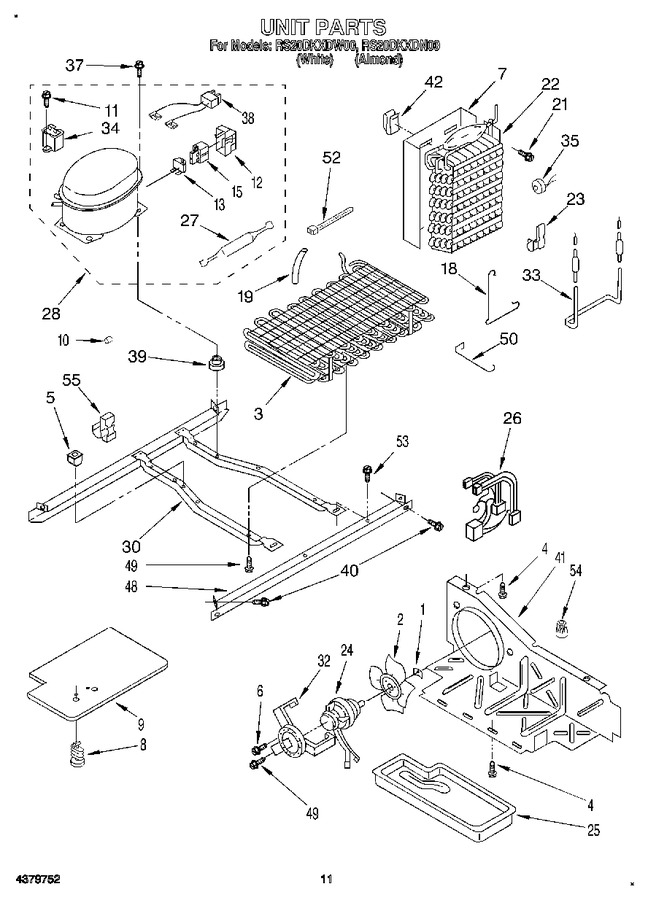

07 - Unit
08 - Control, Lit/optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP486692 | Speed Nut (Replaces: 486692) |
|
$ 8.43 | |||||
| 2 | 1108179 | Fan, Blade |
|
$ 49.54 | |||||
| 3 | 2164513 | Condenser Assembly |
|
- | |||||
| 4 | WP489464 | Screw (Replaces: 489337) |
|
Immediately | $ 8.38 | ||||
| 5 | 509812 | Grommet |
|
- | |||||
| 6 | 681390 | Screw (Replaces: 489099) |
|
$ 13.71 | |||||
| 7 | 2149293 | Heat Shield And Drain Pan |
|
- | |||||
| 8 | 489396 | Clip |
|
$ 11.26 | |||||
| 9 | 2160505 | Cover, Unit Compartment |
|
- | |||||
| 10 | WP2158826 | Dampener (Replaces: 2158826) |
|
$ 1.82 | |||||
| 11 | W11693756 | Screw (Replaces: 488687) |
|
Immediately | $ 14.76 | ||||
| 12 | WP2162358 | Cover (Replaces: 2162358) |
|
$ 95.29 | |||||
| 13 | 4387535 | Overload (includes Relay) (Replaces: 2154760) |
|
$ 191.05 | |||||
| 15 | N/A | Relay (see Overload) |
|
- | |||||
| 18 | 2161324 | Clip, Defrost Heater |
|
- | |||||
| 19 | W11751592 | Sleeve (Replaces: 2161302) |
|
Immediately | $ 21.32 | ||||
| 21 | WP965173 | Screw (Replaces: 487869) |
|
Immediately | $ 11.87 | ||||
| 22 | WP2188822 | Evaporator (Replaces: 2164518) |
|
Immediately | $ 356.84 | ||||
| 23 | 2161330 | Clip, Heater (2) |
|
- | |||||
| 24 | 833697 | Motor, Fan (Replaces: 2162431) |
|
Immediately | $ 88.15 | ||||
| 25 | WPW10614158 | Tray, Evaporator (Replaces: 1105523) |
|
Immediately | $ 113.18 | ||||
| 26 | 2153994 | Harness, Intermediate |
|
- | |||||
| 27 | W10843121 | Drier (Replaces: 2164409) |
|
Immediately | $ 57.13 | ||||
| 28 | W10309990 | Compressor (includes Items 10, 11, 12, 13, 15, 27 & 34) (Replaces: 2169426) |
|
Immediately | $ 632.81 | ||||
| 30 | 2160498 | Unit Mounting Frame |
|
- | |||||
| 32 | 548695 | Fan, Motor Bracket |
|
- | |||||
| 33 | WP2323197 | Heater, Defrost (Replaces: 2176064) |
|
Immediately | $ 123.25 | ||||
| 34 | 2169137 | Capacitor |
|
- | |||||
| 35 | WPW10225581 | Bi-metal, Defrost (Replaces: 2176066) |
|
Immediately | $ 50.77 | ||||
| 37 | 876811 | Screw (Replaces: 489373) |
|
$ 7.79 | |||||
| 38 | WP2172890 | Wire (Replaces: 1127675) |
|
$ 8.51 | |||||
| 39 | 876811 | Grommet (4) (Replaces: 1100826) |
|
$ 7.79 | |||||
| 40 | 489340 | Screw |
|
- | |||||
| 41 | 2155301 | Air Baffle |
|
- | |||||
| 42 | 2155547 | Clip, Heat Shield |
|
- | |||||
| 48 | 2149717 | Unit Mounting Rail |
|
- | |||||
| 49 | 488624 | Screw |
|
- | |||||
| 50 | 1105612 | Guard, Fan |
|
$ 42.61 | |||||
| 52 | 851095 | Strap |
|
- | |||||
| 53 | WP489427 | Screw (Replaces: 489427) |
|
$ 7.84 | |||||
| 54 | 850145 | Wire Connector |
|
- | |||||
| 55 | 876764 | Valve, Access(3/16``) |
|
Immediately | $ 95.92 | ||||
| 55 | WP978025 | Valve, Access (1/4``) (Replaces: 978025) |
|
Immediately | $ 110.51 | ||||
| 55 | SF5538 | Valve, Access (3/8``) (Replaces: 978027) |
|
$ 21.64 | |||||
| 55 | 978028 | Valve, Access (1/2) |
|
- | |||||
| 55 | 978029 | Valve Access (5/8``) |
|
$ 93.85 | |||||
| 55 | 978030 | Valve, Access (3/4``) |
|
$ 137.25 | |||||
| 55 | 2155658 | Clip, Wire And Water Tube |
|
- | |||||
| 55 | 978026 | Valve, Access (5/16``) |
|
Immediately | $ 134.49 |
