01 - Cabinet


02 - Refrigerator Liner


03 - Freezer Liner


04 - Air Flow


05 - Refrigerator Door


06 - Freezer Door


07 - Unit


08 - Control, Lit/optional

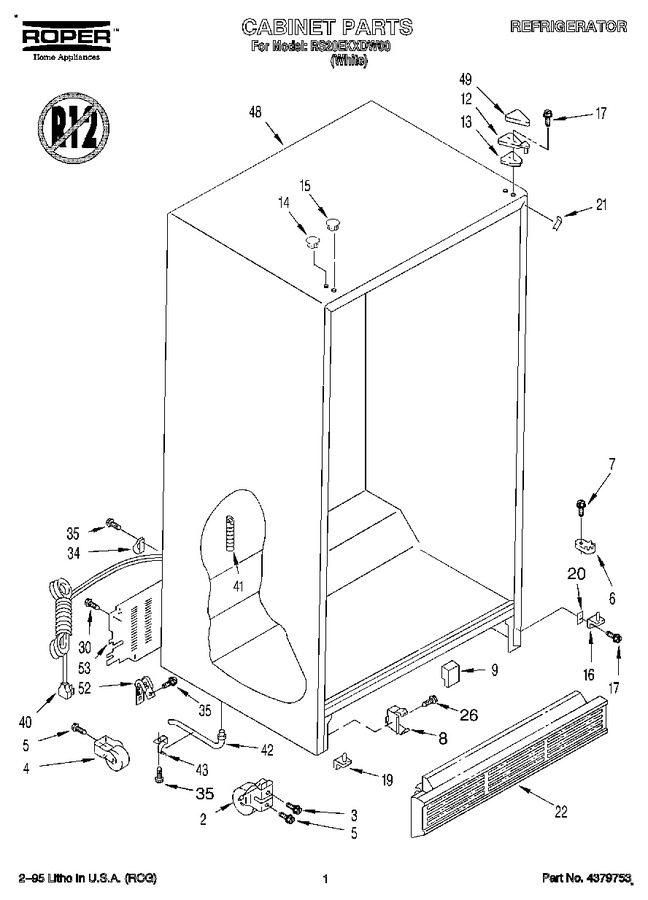

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	2174748		Front Roller (2)		Appelez-nous	-
3	W10850698		Screw   (Replaces: 489456)				$ 14.42
4	WPW10250570		Roller, Rear (2)   (Replaces: 981122)				$ 42.18
5	WP489427		Screw   (Replaces: 489427)				$ 7.84
6	WPW10329686		Door Closer, Lower Cam (2)   (Replaces: 2155311)			Immediately	$ 5.90
7	WP489483		Screw   (Replaces: 489420)				$ 11.41
8	WP2155013		Clip, Grille   (Replaces: 2155013)			Immediately	$ 8.11
9	2176796		Insert, Air Baffle		Appelez-nous	-
12	2155449		Hinge, Top (2)		Appelez-nous	-
13	1123515		Shim, Hinge (2)				$ 6.58
14	849391		Hole Plug		Appelez-nous	-
15	1115352		Hole Plug		Appelez-nous	-
16	2155321		Hinge Bottom (r.h.)		Appelez-nous	-
17	WP999367		Screw   (Replaces: 489367)				$ 8.56
19	2155323		Hinge Bottom (l.h.)		Appelez-nous	-
20	836196		Spacer, Hinge		Appelez-nous	-
21	1110708		Filler, Wrapper		Appelez-nous	-
22	2155476		Grille				$ 62.20
26	WP489478		Screw   (Replaces: 489242)				$ 8.18
30	WPW10141645		Screw   (Replaces: 489084)				$ 8.05
34	WP488366		Clamp   (Replaces: 489385)				$ 11.92
35	WP489464		Screw   (Replaces: 489337)			Immediately	$ 8.38
40	937360		Cord, Service		Appelez-nous	-
41	W11566763		Fitting, Drain   (Replaces: 940139)			Immediately	$ 53.45
42	WP1108438		Tube, Extension   (Replaces: 1108438)			Immediately	$ 32.90
43	WP1108439		Clip, Drain Tube   (Replaces: 1108439)				$ 11.28
48	N/A		Cabinet (not A Serviceable Part)		Appelez-nous	-
49	842010		Hinge Cover (2)		Appelez-nous	-
52	549193		Clamp-service Cord				$ 14.06
53	WP2188756		Cover, Unit   (Replaces: 2171936)				$ 148.75
