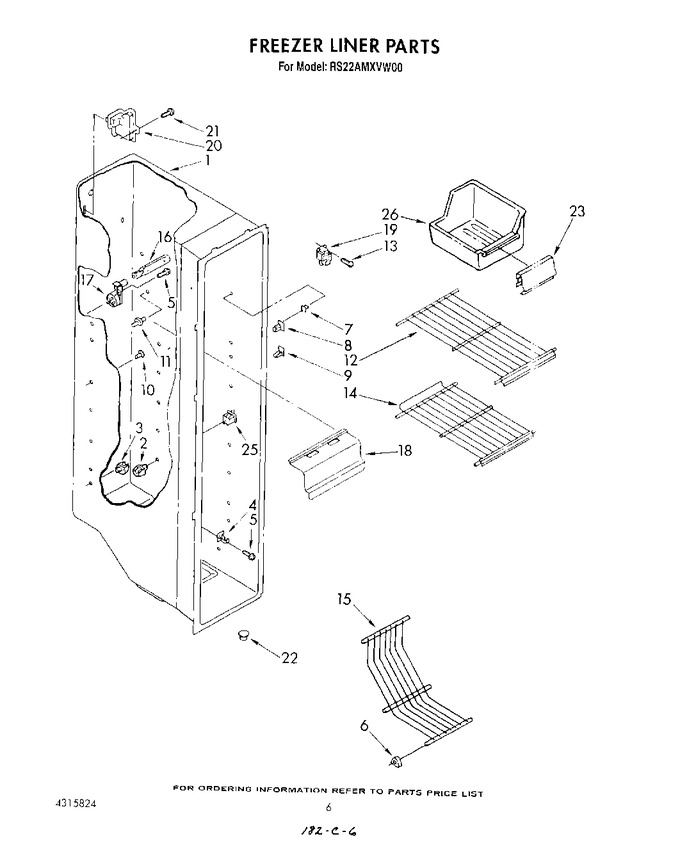

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
2	819091		Stud, Saddle   (Replaces: 946357)				$ 41.66
3	819091		Stud, Saddle   (Replaces: 946358)				$ 41.66
4	1108436		Evaporator, Support		Appelez-nous	-
5	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 14.72
6	216446		Grommet (2)		Appelez-nous	-
7	946355		Support, Stud (16)		Appelez-nous	-
8	946356		Stud (5)		Appelez-nous	-
9	1106982		Stud (5)		Appelez-nous	-
10	1110779		Grommet (16)		Appelez-nous	-
11	4388538		Stud (4)   (Replaces: 1110718)			Immediately	$ 32.85
12	1114608		Shelf (2)		Appelez-nous	-
13	WP681414		Screw (repair)   (Replaces: 489254)			Immediately	$ 8.47
13	WP489478		Screw   (Replaces: 489242)				$ 8.18
14	1114609		Shelf (2)		Appelez-nous	-
15	1124424		Trivet		Appelez-nous	-
16	WP548049		Light Bulb   (Replaces: 548049)				$ 90.67
17	1108630		Socket Assembly		Appelez-nous	-
18	1108445		Lens, Light		Appelez-nous	-
19	942842		Terminal Block		Appelez-nous	-
20	1114615		Cover, Wiring		Appelez-nous	-
21	WP488729		Screw   (Replaces: 489176)			Immediately	$ 8.28
22	942768		Fitting, Drain		Appelez-nous	-
23	837122		Trim, Ice Pan		Appelez-nous	-
25	W11384469		Rocker Arm Switch   (Replaces: 549702)			Immediately	$ 39.09
26	W11625904		Ice Cube Pan   (Replaces: 837121)				$ 67.83
