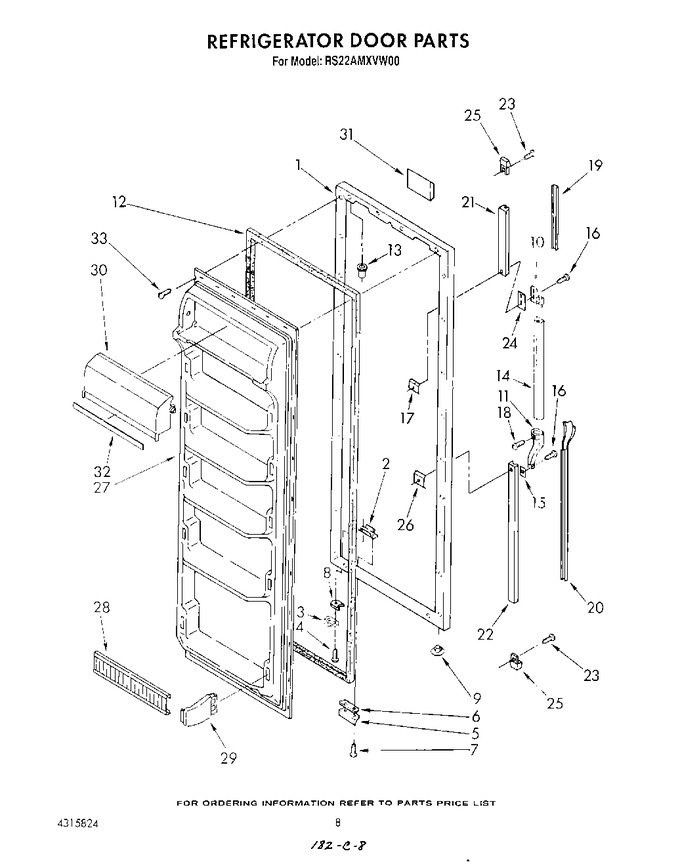

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1124427		Refrigerator Door (white)		Appelez-nous	-
1	1124428		Refrigerator Door (almond)		Appelez-nous	-
2	988402		Tap Plate		Appelez-nous	-
3	4318165		Door Closer, Upper Cam   (Replaces: 1115905)			Immediately	$ 29.74
4	WP489069		Screw, 8 X 1/2   (Replaces: 488938)			Immediately	$ 8.40
5	1115906		Bracket, Door Stop		Appelez-nous	-
6	988421		Shim		Appelez-nous	-
7	488549		Screw, 8 X 5/8		Appelez-nous	-
8	WP1104787		Shim, Door Closer   (Replaces: 1104787)				$ 7.96
9	534927		Hole Plug		Appelez-nous	-
10	936930		End Cap, Handle		Appelez-nous	-
11	1109189		End Cap, Handle		Appelez-nous	-
12	2188404A		Door, Gasket Magnetic   (Replaces: 1110648)				$ 269.26
13	509929		Cap, Hinge Sleeve		Appelez-nous	-
14	1119757		Handle, Center		Appelez-nous	-
15	935075		Shim, End Cap		Appelez-nous	-
16	WP488729		Screw (3)   (Replaces: 489222)			Immediately	$ 8.28
17	WP939101		Screw, Anchor   (Replaces: 939101)				$ 7.88
18	489022		Screw, 6-20 X 3/8 (2)		Appelez-nous	-
19	1124570		Insert, Extension		Appelez-nous	-
20	1124510		Insert, Extension		Appelez-nous	-
21	1124569		Insert Retainer (top)		Appelez-nous	-
22	1119360		Insert Retainer (bottom)		Appelez-nous	-
23	00489248		Screw, 10-32 X 5/8 (2)   (Replaces: 489248)				$ 38.59
24	935076		Shim, End Cap		Appelez-nous	-
25	941259		End Cap (2)		Appelez-nous	-
26	941242		Screw Anchor		Appelez-nous	-
27	1108461		Interior, Door Panel		Appelez-nous	-
28	1120852		Trim, Door Shelf (5)		Appelez-nous	-
29	1124429		Retainer, Door Trim (10)		Appelez-nous	-
30	1124431		Door, Compartment		Appelez-nous	-
31	1124315		Nameplate		Appelez-nous	-
32	1124432		Trim, Compartment Door		Appelez-nous	-
33	WP489069		Screw, (30) 7 X 1/2   (Replaces: 489101)			Immediately	$ 8.40
