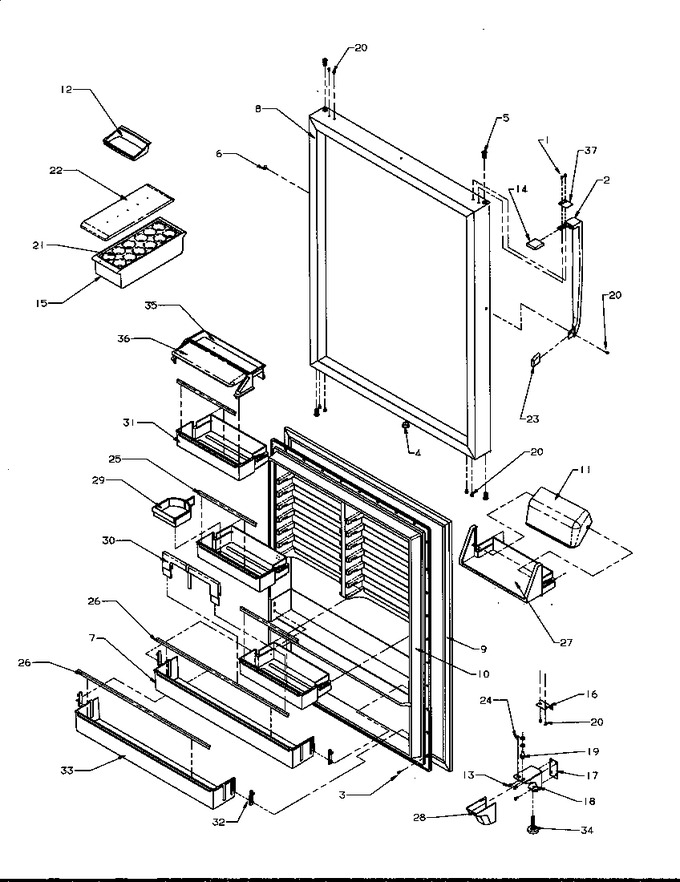

TRI22S4 (BOM: P1196301W L) | Leon's : Appliance Model Lookup

Diagram #	Part Number	Description	Availability	Ships	Price
1	M0222442	Screw-sm Shldr	Appelez-nous	-
2	10903103	Handle, L Ref	Appelez-nous	-
3	M0219730	Screw			$ 7.65
4	M0310338	Plug Button Almond	Appelez-nous	-
5	10961001	Bushing, Door (wht)	Appelez-nous	-
6	M0310730	Plug Button (almond)	Appelez-nous	-
7	10183110	Retainer, Ref Door	Appelez-nous	-
8	10925402L	Use 10925414l	Appelez-nous	-
9	WP12550111Q	Gasket,ref Dr(white) (Replaces: 10456803)			$ 178.50
10	10444601	Liner, Refrig. Door	Appelez-nous	-
11	10422607	Door- Dairy	Appelez-nous	-
12	10310901	Tray, Butter	Appelez-nous	-
13	WP67006715	Screw (Replaces: M0233847)			$ 7.55
14	10913502	Cap-l Dr Handle	Appelez-nous	-
15	10423128	Bin-utility	Appelez-nous	-
16	10447102	Stop, Door	Appelez-nous	-
17	10447901	Shim, Btm Hinge	Appelez-nous	-
17	10447902	Shim Hinge	Appelez-nous	-
18	10575307	Hinge, Bottom	Appelez-nous	-
19	67007018	Pin, Hinge (btm) (Replaces: 10200801)		Immediately	$ 8.62
20	WPW10348409	Screw, Mounting (Replaces: M0211533)		Immediately	$ 8.20
21	10436504	Tray, Egg	Appelez-nous	-
22	10436404	Lid, Utility			$ 60.85
23	10907403	Cap-l Ref Hndl	Appelez-nous	-
24	M0310331	Plug, Button Almond	Appelez-nous	-
25	10183929	Trim-door Shelf	Appelez-nous	-
26	10183971	Trim Door Shelf	Appelez-nous	-
27	10182702	Shelf, Dairy	Appelez-nous	-
28	10462704	Cover-l Hinge Lw	Appelez-nous	-
29	10441101	Hugger, Bottle (shelf Divider)	Appelez-nous	-
30	10468001	Retainer, Tall Pkg	Appelez-nous	-
31	10183008	Shelf, Ref Door	Appelez-nous	-
32	10202001	Clip, Retainer	Appelez-nous	-
33	10419004	Retainer, Ref Door	Appelez-nous	-
34	W11177593	Brake, Foot (Replaces: 10354001)			$ 12.18
35	10431101	Shelf, Snack Stop	Appelez-nous	-
36	10431007	Door, Snack Stop	Appelez-nous	-
37	10917301	Clip-door Cap	Appelez-nous	-
