Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 2147441 Refrigerator Door (white) Appelez-nous -
1 2147443 Refrigerator Door (almond (also Order Item 18)) Appelez-nous -
3 1124431 Door, Compartment Appelez-nous -
4 1124432 Trim, Compartment Door Appelez-nous -
5 WPW10141645 Screw   (Replaces: 489084) Special Order $ 8.05

6 1120852 Trim, Door Shelf Appelez-nous -
7 1110713 End Cap Special Order $ 5.84

8 2188404A Door Gasket, Magnetic   (Replaces: 1129266) Special Order $ 269.26

9 509929 Cap, Hinge Sleeve Appelez-nous -
10 1127464 Handle, Center Appelez-nous -
11 WP939101 Screw Anchor (2)   (Replaces: 939101) Special Order $ 7.88

12 1127465 Reinforcement, Handle Appelez-nous -
13 849445 Clip, Handle Appelez-nous -
15 2147097 Shim Appelez-nous -
17 1129249 Panel, Interior Door Appelez-nous -
18 876029 Foam Insulation (required When Replacing Exterior Door Panel) Appelez-nous -
19 WP489069 Screw   (Replaces: 489101) In-Stock Immediately $ 8.40

20 4318165 Door Closer, Upper Cam   (Replaces: 1115905) In-Stock Immediately $ 29.74

21 WP1104787 Shim, Door Closer   (Replaces: 1104787) Special Order $ 7.96

22 WP489069 Screw, 8 X 1/2   (Replaces: 488938) In-Stock Immediately $ 8.40

23 1115906 Bracket, Door Stop Appelez-nous -
24 988421 Shim Appelez-nous -
26 988402 Tap Plate Appelez-nous -
27 WP489478 Screw   (Replaces: 489242) Special Order $ 8.18

28 2147581 Insert, Handle Appelez-nous -
29 2147898 Retainer, Top Appelez-nous -
30 2147896 Retainer (bottom) Appelez-nous -
32 534927 Hole Plug (2) Appelez-nous -
33 2147897 Retainer, Middle Appelez-nous -
34 1127473 Extension (bottom) Appelez-nous -
35 2147445 Extension, Top Appelez-nous -
36 1127480 Extension, Middle Appelez-nous -
39 1117766 Retainer, Gasket Special Order $ 36.55

40 1118301 Retainer, Gasket Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

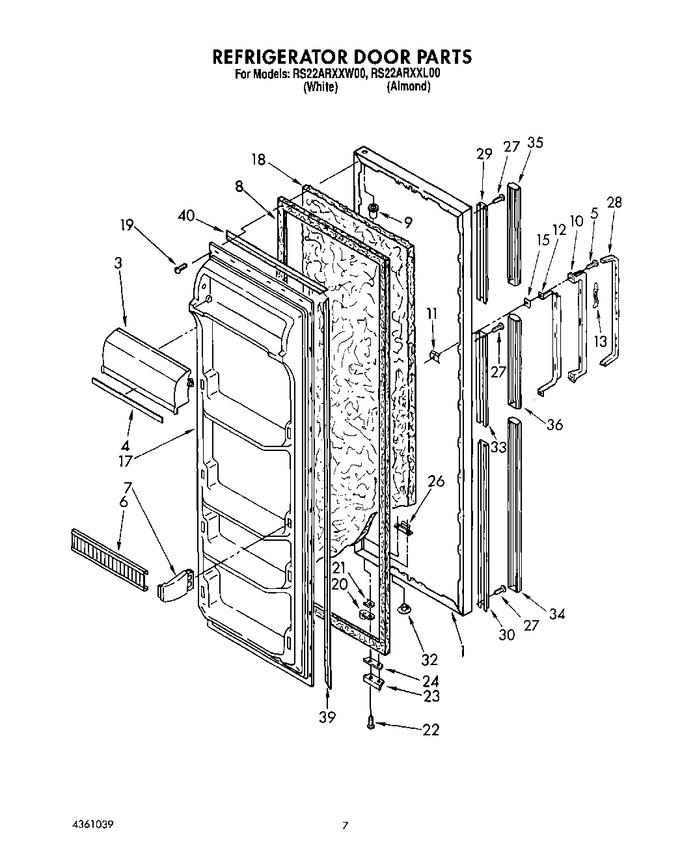

Diagram for RS22ARXXW00
