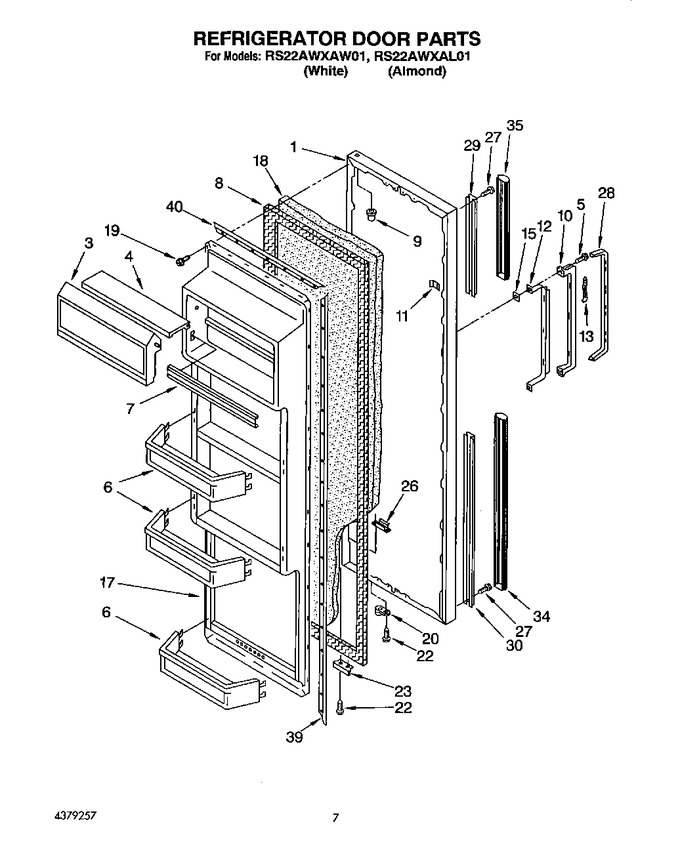

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4362054		Refrigerator Door Panel (almond (also Order Item 18))		Appelez-nous	-
1	4362029		Refrigerator Door Panel (white)		Appelez-nous	-
3	2163516		Door, Compartment		Appelez-nous	-
4	1116707		Shelf, Compartment		Appelez-nous	-
5	WPW10141645		Screw   (Replaces: 489084)				$ 8.05
6	2163515		Trim, Shelf		Appelez-nous	-
7	1124512		Trim, Shelf		Appelez-nous	-
8	2188404A		Door Gasket, Magnetic   (Replaces: 1129266)				$ 269.26
9	509929		Cap, Hinge Sleeve		Appelez-nous	-
10	1127464		Handle, Center		Appelez-nous	-
11	WP939101		Screw Anchor (2)   (Replaces: 939101)				$ 7.88
12	1127465		Reinforcement, Handle		Appelez-nous	-
13	849445		Clip, Handle		Appelez-nous	-
15	2147097		Shim		Appelez-nous	-
17	2160928		Panel, Interior Door		Appelez-nous	-
18	876029		Foam Insulation (required When Replacing Exterior Door Panel)		Appelez-nous	-
19	WP489069		Screw   (Replaces: 489101)			Immediately	$ 8.40
20	4318165		Door Closer, Upper Cam   (Replaces: 2155312)			Immediately	$ 29.74
22	WP999367		Screw   (Replaces: 489367)				$ 8.56
23	2155334		Bracket, Door Stop		Appelez-nous	-
26	2155335		Tap, Plate		Appelez-nous	-
27	WP489478		Screw   (Replaces: 489242)				$ 8.18
28	2147581		Insert, Handle		Appelez-nous	-
29	2147898		Retainer, Top		Appelez-nous	-
30	2147896		Retainer (bottom)		Appelez-nous	-
34	1127473		Extension (bottom)		Appelez-nous	-
35	2147445		Extension, Top		Appelez-nous	-
39	1117766		Retainer, Gasket				$ 36.55
40	1118301		Retainer, Gasket		Appelez-nous	-
