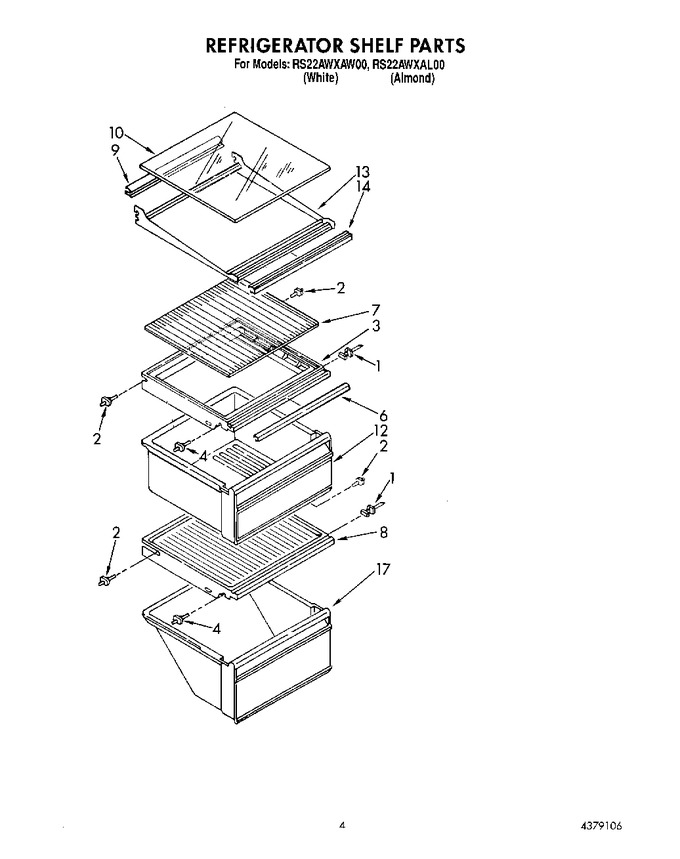

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4388538		Shelf Stud   (Replaces: 2147997)			Immediately	$ 32.85
2	4388538		Shelf Stud   (Replaces: 1110718)			Immediately	$ 32.85
3	WP1126289		Cover, Crisper   (Replaces: 2152672)				$ 190.80
4	WP2149540		Shelf Stud   (Replaces: 2149540)				$ 10.96
6	1119190		Trim, Crisper Cover		Appelez-nous	-
7	1124419		Glass, Crisper Cover		Appelez-nous	-
8	WP2148298		Cover, Meat Pan   (Replaces: 2148304)				$ 183.32
9	1125594		Retainer, Glass		Appelez-nous	-
10	1124532		Glass		Appelez-nous	-
12	2152637		Pan, Crisper		Appelez-nous	-
13	1118413		Shelf, Cantilever		Appelez-nous	-
14	2163521		Trim, Shelf		Appelez-nous	-
17	2152636		Pan, Meat		Appelez-nous	-
