Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 10442205 Cover, Ht Exch Appelez-nous -
2 M0227217 Screw, Sm Appelez-nous -
3 10699301 Grommet Appelez-nous -
4 10442503 Tube, Drain Appelez-nous -
5 12075603 Harness, Cab. Appelez-nous -
6 M0227217 Screw, Sm Appelez-nous -
7 10547101 Clip, Tube Appelez-nous -
8 M0103904 Clamp, Speed Appelez-nous -
9 M0288306 Nut-speed Clip Appelez-nous -
10 10916501 Cord, Power Appelez-nous -
11 M0232317 Screw Appelez-nous -
12 B8372901 Clamp Appelez-nous -
13 WPM0104106 Clip,cord   (Replaces: M0104101) Special Order $ 8.17

15 10467928 Mc Back, E Ct Appelez-nous -
16 10987511 Insul, Mach Back Appelez-nous -
17 WP90767 Screw, Sm   (Replaces: M0224416) In-Stock Immediately $ 8.25

19 10547001 Clip, Drier Appelez-nous -
20 10428001 Plug, Ht Exch V Appelez-nous -
21 10163203 Elbow, Drain Tube Appelez-nous -
22 A3132301 Gasket Appelez-nous -
23 WPB2150504 Drier   (Replaces: B2150504) Special Order $ 136.98


    View Diagram in Separate Window     Print Icon   Print Part List

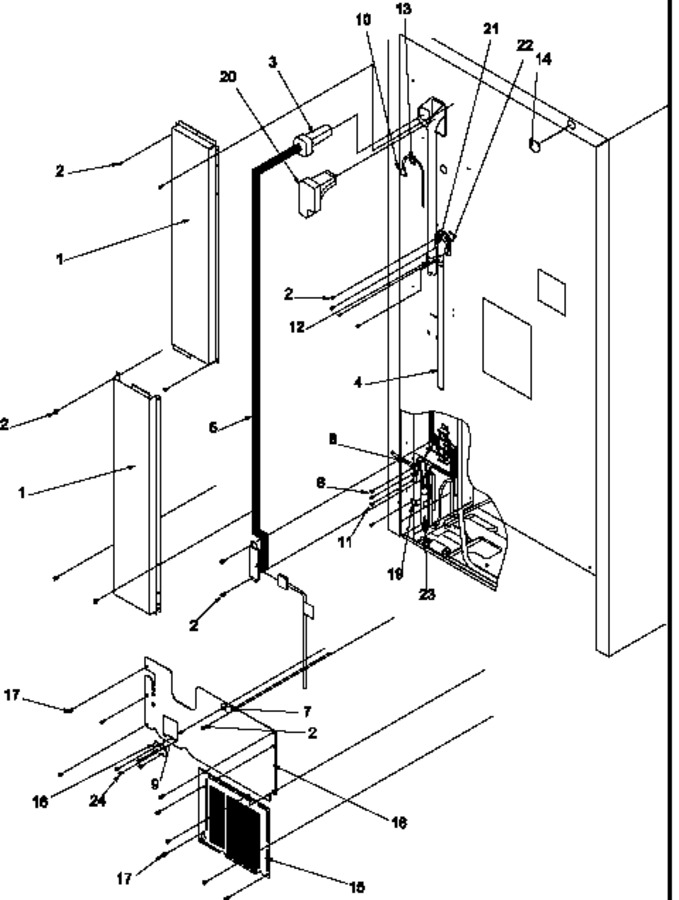

Diagram for TRI25S5W (BOM: P1300001W W)
