Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 0312491 Usec8987101 Appelez-nous -
2 0312492 Seal, Door Dike Appelez-nous -
3 312415 Air Button Appelez-nous -
4 0312416 Insulation, Per Ft. Appelez-nous -
5 0312420 Insulation Appelez-nous -
6 0312421 Insulation Appelez-nous -
7 0312419 Use B5629048 Appelez-nous -
8 0312422 Use B5629051 Appelez-nous -
9 Y0312487 Retainer, Door Liner Appelez-nous -
10 Y0312588 Door Frz W Appelez-nous -
11 0312538 Shelf, Ref Door Appelez-nous -
12 Y0312582 Use D7827312 Appelez-nous -
13 0312564 Use D7800406 Appelez-nous -
14 Y0312565 Foam Slab Door Appelez-nous -
15 Y0312617 Gasket (w Frz Dr) Appelez-nous -
16 0312584 Use D7829405 Appelez-nous -
17 Y0312583 Retainer, Door Liner Appelez-nous -
18 Y0312644 Screw Appelez-nous -
19 0312465 Tube, Protective Appelez-nous -
20 0312447 Clip Appelez-nous -
21 0312446 Clip Appelez-nous -
22 Y0312672 Clip, Door Dike Appelez-nous -
23 0312673 Rem Dike I & W Upper Appelez-nous -
24 0312674 Removable Dike I & W Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

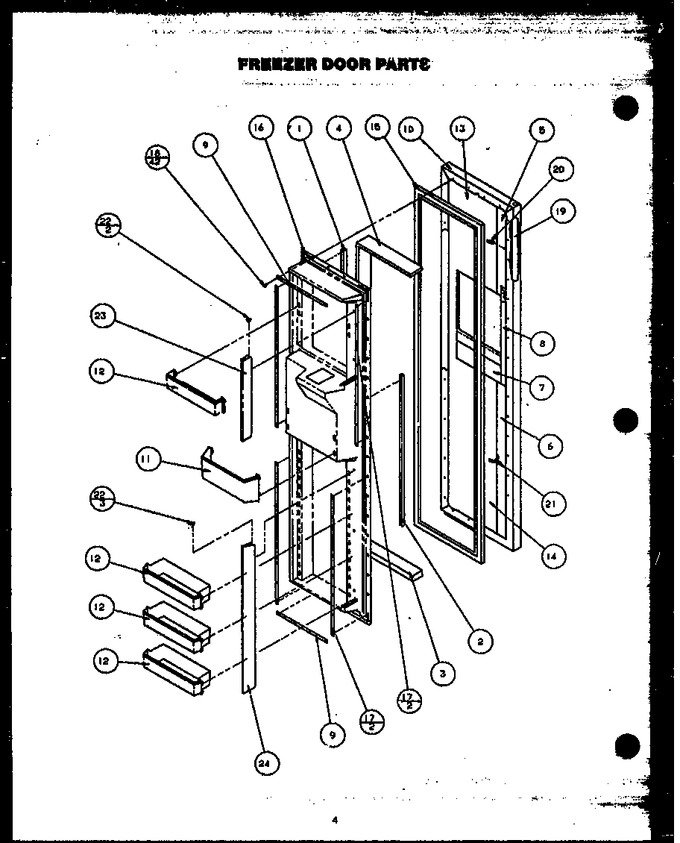

Diagram for TS18R2G (BOM: P1158311W G)
