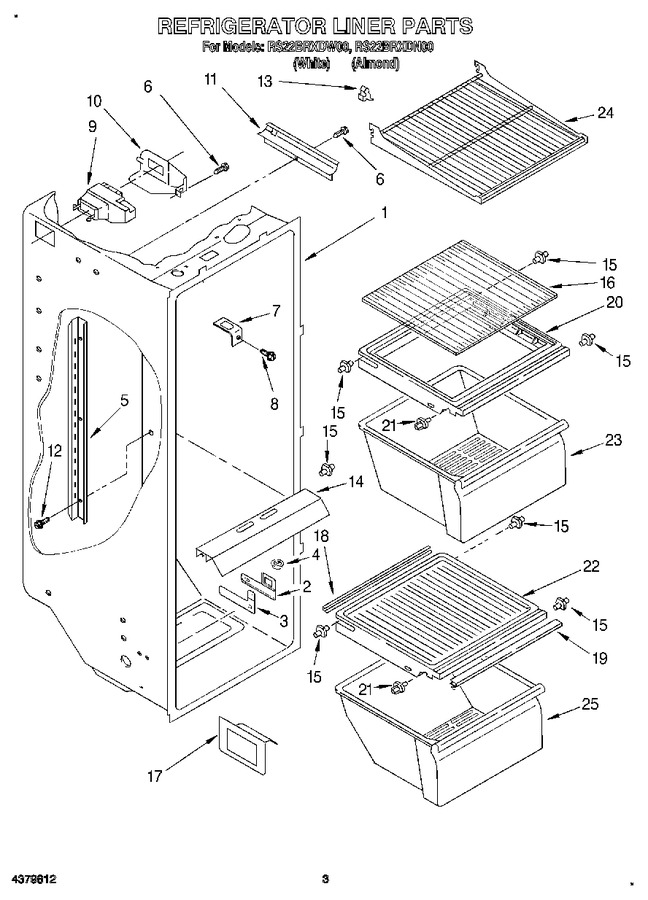

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
2	2194744		Escutcheon, Meat Pan Control   (Replaces: 2179918)				$ 95.84
3	2161489		Slide, Meat Pan Control		Appelez-nous	-
4	2171846		Release Valve				$ 18.99
5	2171995		Ladder, Shelf		Appelez-nous	-
6	W10759522		Screw (2)   (Replaces: 486298)				$ 8.24
7	WP2256085		Bracket, Retainer   (Replaces: 1123919)				$ 36.10
8	WP488488		Screw (2)   (Replaces: 489290)				$ 8.52
9	WPW10151374		Air Diffuser Assembly   (Replaces: 2176173)			Immediately	$ 104.77
10	2152019		Cover, Air Diffuser				$ 90.33
11	2150331		Cover, Conduit				$ 25.62
12	WP488729		Screw   (Replaces: 487539)			Immediately	$ 8.28
13	2215823		Clip, Air Duct   (Replaces: 842534)				$ 10.94
14	2174436		Lens				$ 51.38
15	4388538		Stud   (Replaces: 1110718)			Immediately	$ 32.85
16	W10864399		Glass, Cover   (Replaces: 2173405)				$ 232.03
17	2179350		Deflector				$ 85.89
18	2174483		Gasket, Rear		Appelez-nous	-
19	2174442		Gasket, Front		Appelez-nous	-
20	W10508993		Cover, Crisper   (Replaces: 2173392)				$ 305.85
21	4388539		Shelf Stud   (Replaces: 2172943)				$ 22.28
22	W10508993		Cover, Meat Pan   (Replaces: 2173398)				$ 305.85
23	WP2188656		Pan, Crisper   (Replaces: 2173384)				$ 143.22
24	2163620		Shelf, Wire (2)		Appelez-nous	-
25	WP2188664		Pan, Meat   (Replaces: 2173385)			Immediately	$ 92.70
